发动机总成(2) Engine (2/6) (800101402)

XE470CK 液压挖掘机零件图册 / Parts Catalog

---

p144

Contact: maipponxcmg@yeah.net

800142874   六角头螺栓 Bolt

800142875   盖板 Cover

800142735   加热器管垫圈 Gasket 4 80014 2876 六角头螺栓 Bolt 1

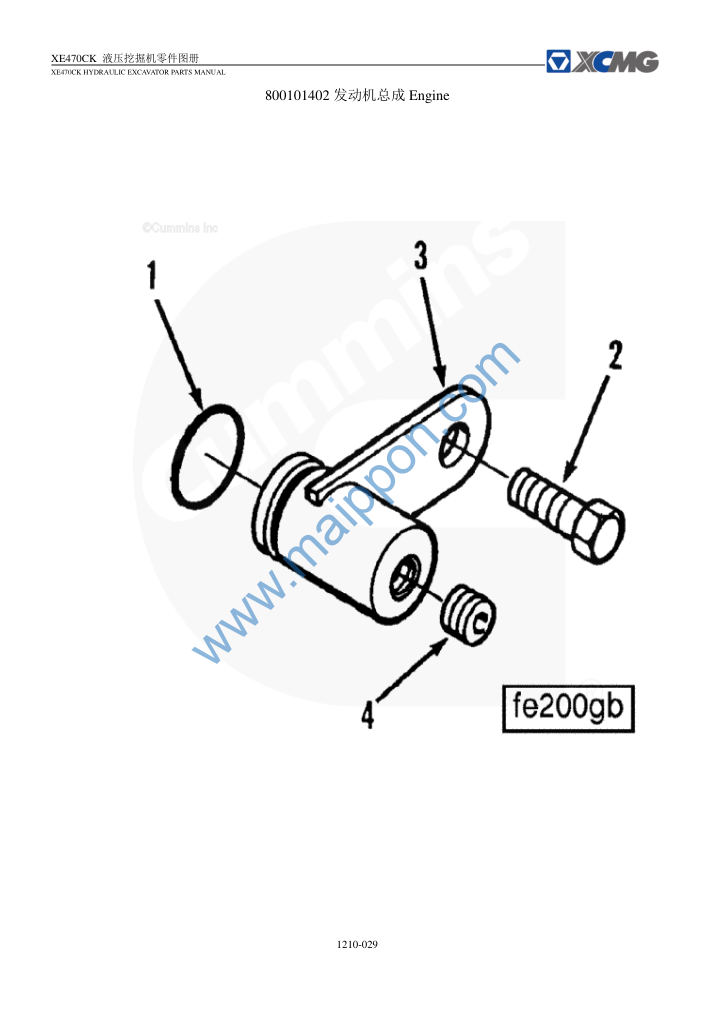

1210-029

Contact: maipponxcmg@yeah.net

800142680   O 形密封圈 O-Ring

800142878   六角头螺栓 Bolt

800142879   进气接口 Air Intake Connection

800143919   C管o塞nnePcltuigo n

1210-031

Contact: maipponxcmg@yeah.net

800142882   减振器 VibrationDamper

800142883   曲轴皮带轮 Crankshaft Belt Pulley

800142884   六角头螺栓 Bolt

800142885   螺丝钳盘 Clamping Plate

800142886   螺丝钳盘 Clamping Plate

1210-033

Contact: maipponxcmg@yeah.net

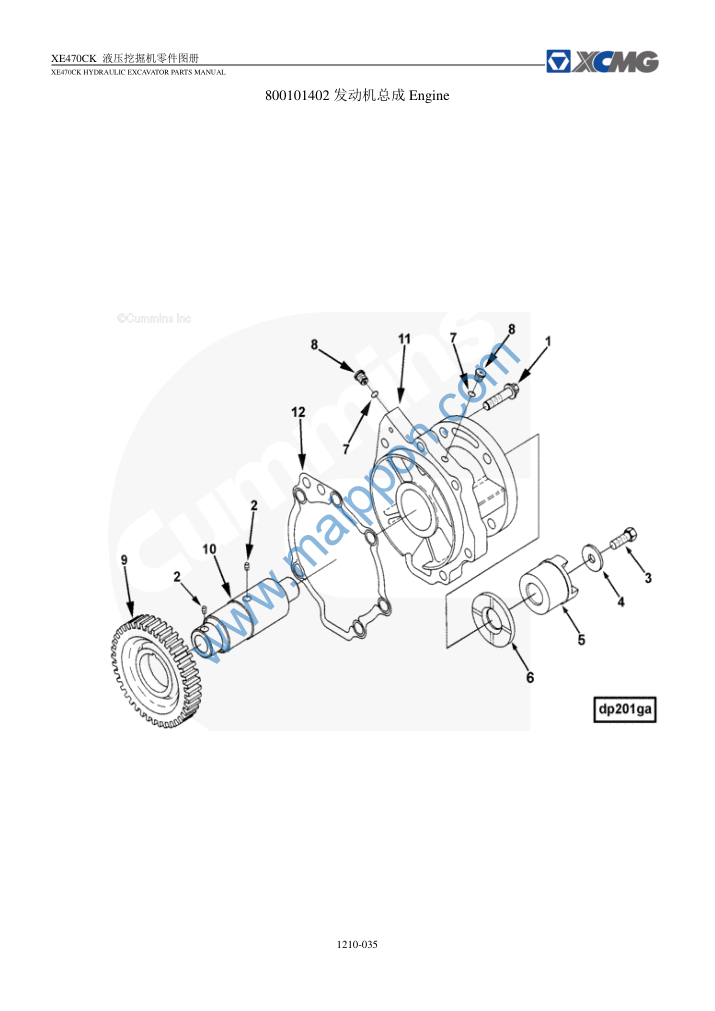

800142889   液压泵结合器 Hydraulic Pump Adapter

800142823   滚针轴承 Roller Bearing

800142891   花键接合器 SplineAdapter

800142892   液压泵齿轮 Hydraulic Pump Gear

800142893   盖板 Cover

800143883   液压泵垫圈 Hydraulic Pump Gasket

800142894   带垫圈冒螺钉 Screw

800142895   O 形密封圈 O-Ring

800142896   六角头螺栓 Bol

1210-035

Contact: maipponxcmg@yeah.net

800142899   六角冒螺钉 Screw

800142901   键 Key

800142902   六角头螺栓 Bolt

800142903   平垫圈 Plain Washer

800142904   爪形联轴器毂 Jaw Coupling Hub

800142905   止推轴承 Thrust Bearing

800142907   O 形密封圈 O-Ring

800142908   螺塞 Plug

800142910   驱动附件齿轮 Accessory Drive Gear

800142911   驱动附件轴 Accessory Drive Shaft

800142912   驱动附件支撑 Support

800142737   ACC驱动支撑衬垫 Gasket

1210-037

Contact: maipponxcmg@yeah.net

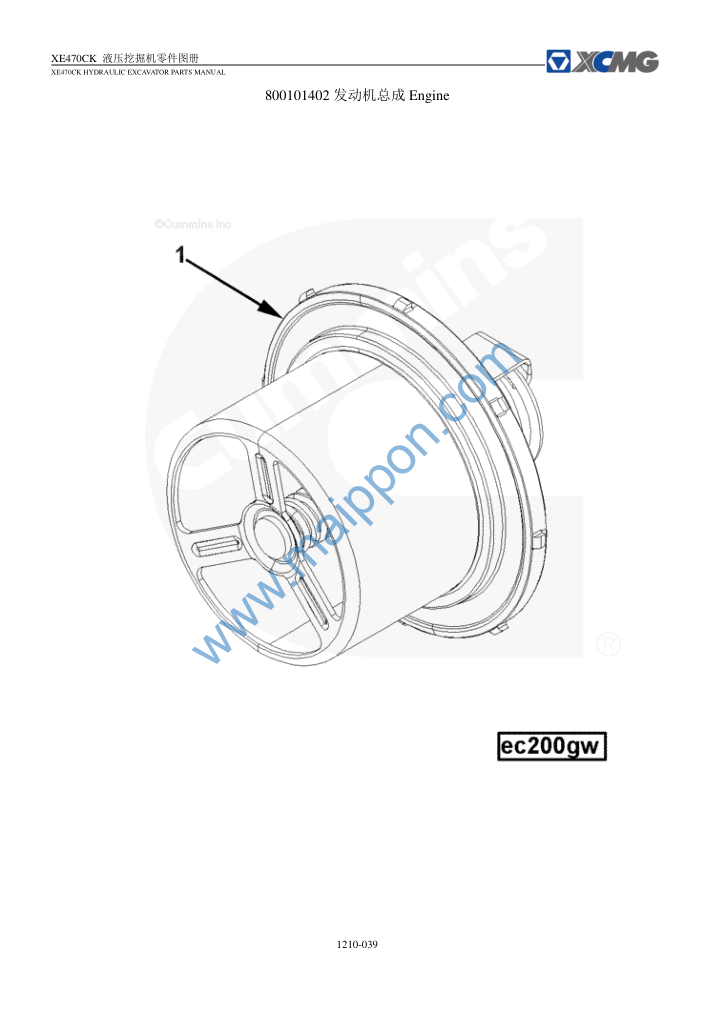

800142914   气阀十字头 Crosshead Valve

1210-039

Contact: maipponxcmg@yeah.net

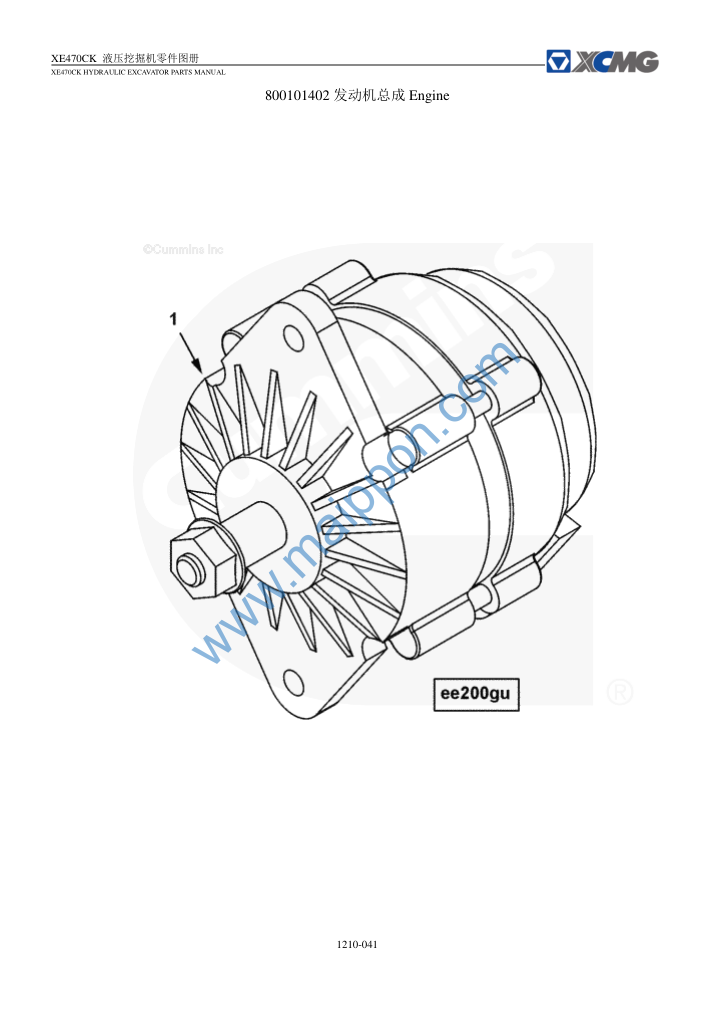

800143881   节温器 Thermostat

1210-041

Contact: maipponxcmg@yeah.net

800142917   充电机 Alternator

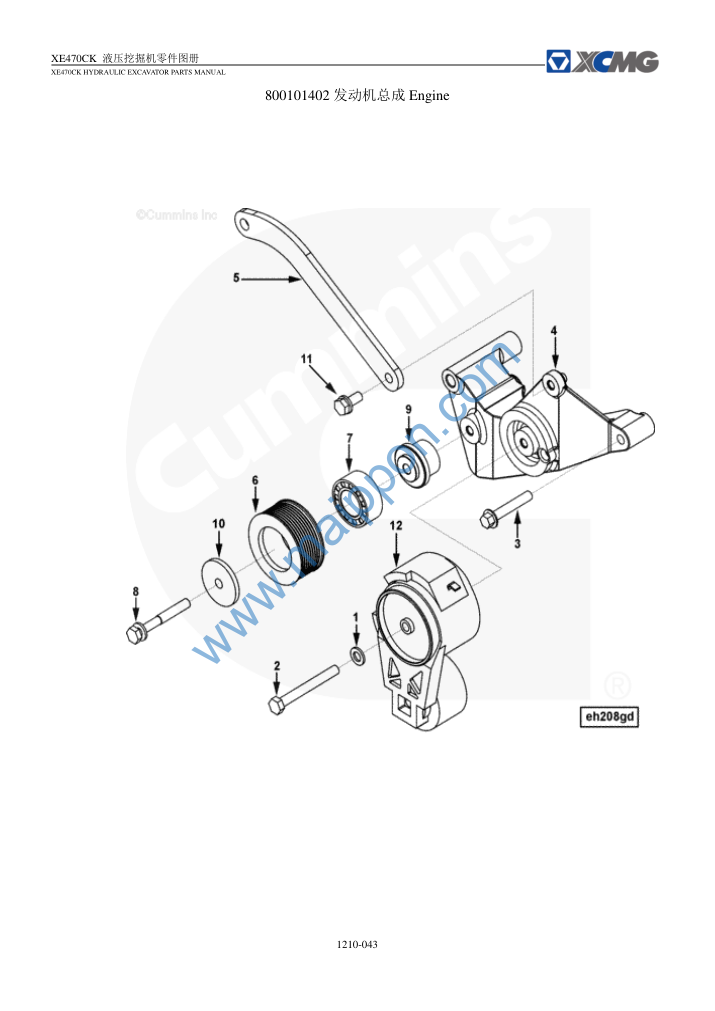

1210-043

Contact: maipponxcmg@yeah.net

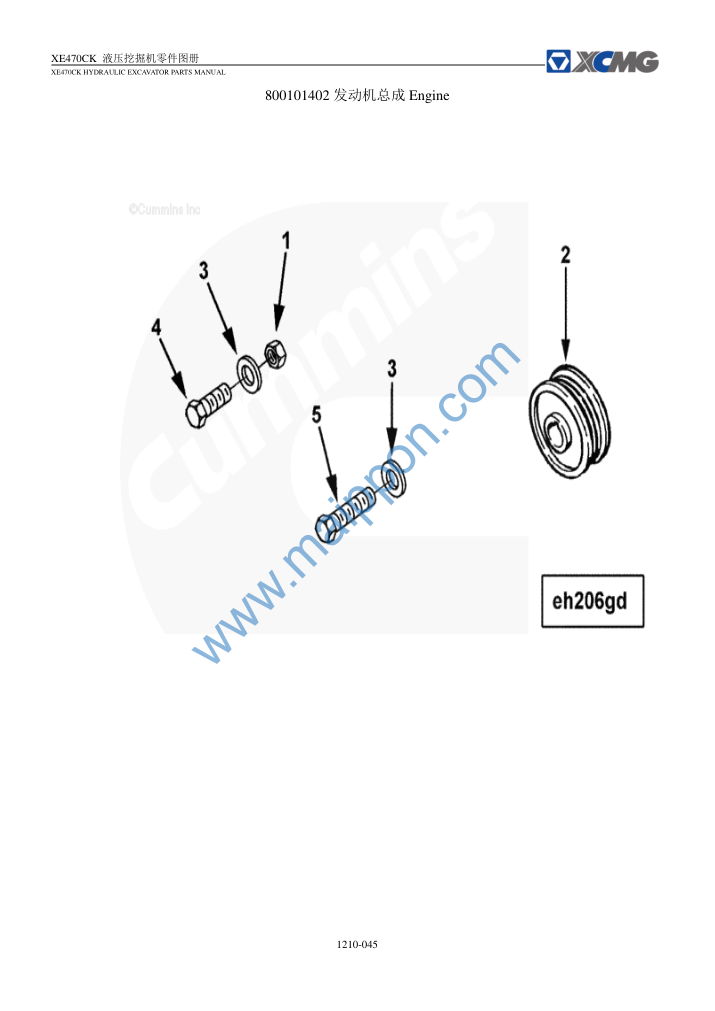

800143858   平垫圈 Plain Washer

800142919   六角头螺栓 Bolt

800142920   带垫圈冒螺钉 Screw

800142921   充电机支架 Bracket

800142922   充电机支撑柄 Alternator Bracket

800142924   皮带轮 Sheave

800142925   滚珠轴承 Roller Bearing

800142926   带垫圈冒螺钉 Screw

800142927   带轮轴 Idler Shaft

800142928   皮带轮盖 Cover

800142825   带垫圈冒螺钉 Screw

800142929   皮带张紧轮 Belt Tensioner

1210-045

Contact: maipponxcmg@yeah.net

800143461   锁紧螺母 Nut

800142931   充电机皮带轮 Alternator Pulley

800143462   平垫圈 Plain Washe

800143912   六角头螺栓 Bolt

800142932   六角头螺栓 Bolt

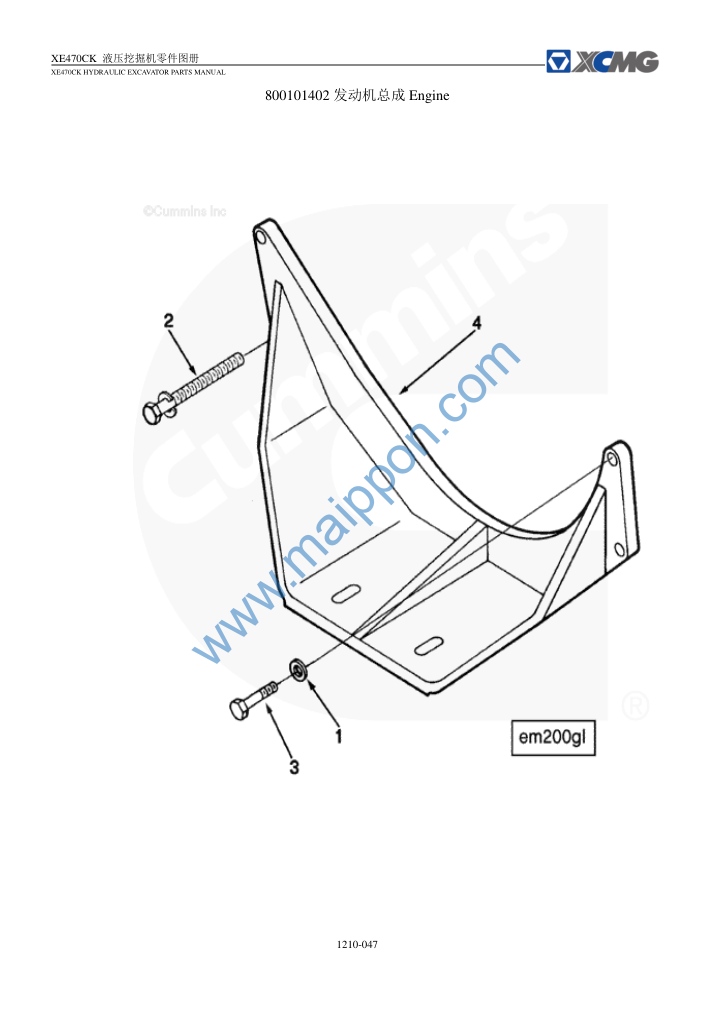

1210-047

Contact: maipponxcmg@yeah.net

800142934   平垫圈 PlainWasher

800142935   带垫圈冒螺钉 Screw

800142936   六角头螺栓 Bolt

800142937   发动机前支架 Bracket

1210-049

Contact: maipponxcmg@yeah.net

800143858   平垫圈 PlainWasher

800142939   六角头螺栓 Bolt

800142940   风扇毂 Fan Hub

800142941   导向结合器 Pilot Adapter

1210-051

Contact: maipponxcmg@yeah.net

800142943   V-棱皮带 V Belt

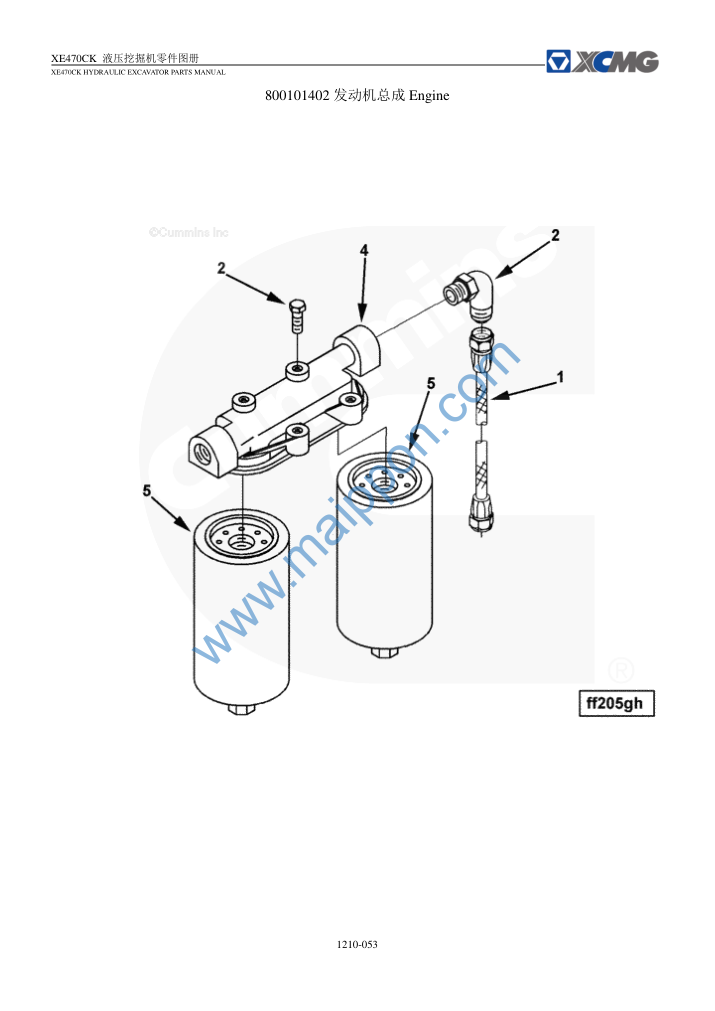

1210-053

Contact: maipponxcmg@yeah.net

800142945   柔性软管 Flexible Hose

800142946   六角头螺栓 Bolt

800142947   外螺纹弯头 Elbow

800142948   燃油滤清器头 Fuel Filter

800143897   H油e水ad分 离器 Water S eparator
