发动机总成(1) Engine (1/6) (800101402)

XE470CK 液压挖掘机零件图册 / Parts Catalog

---

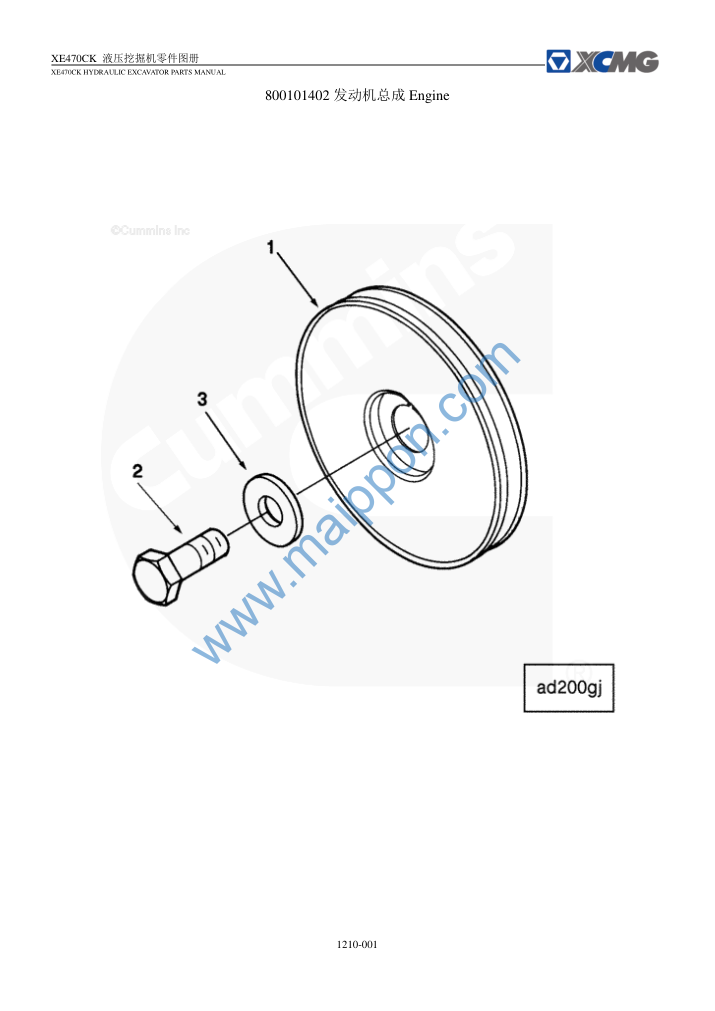

1210-001

Contact: maipponxcmg@yeah.net

800142753   附件驱动皮带轮 Pulley

800142754   六角头螺栓Bolt

800142755   平垫圈 Washer

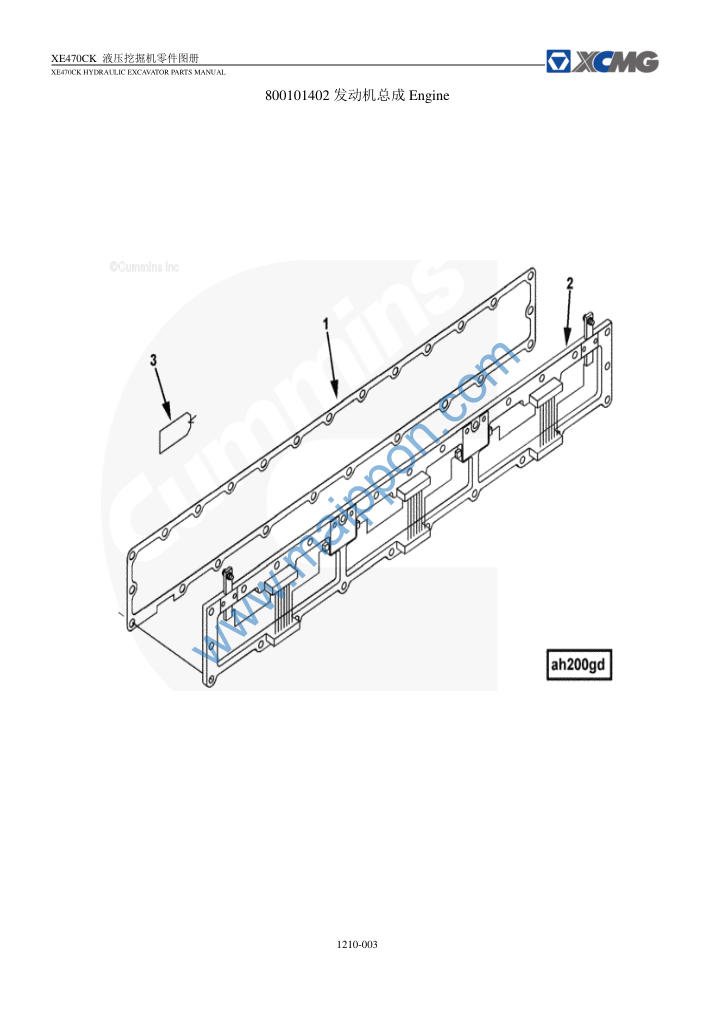

1210-003

Contact: maipponxcmg@yeah.net

800142668   进气歧管垫圈Washer

800142757   进气加热器 Air Heater 3 指示标签 Tag 1

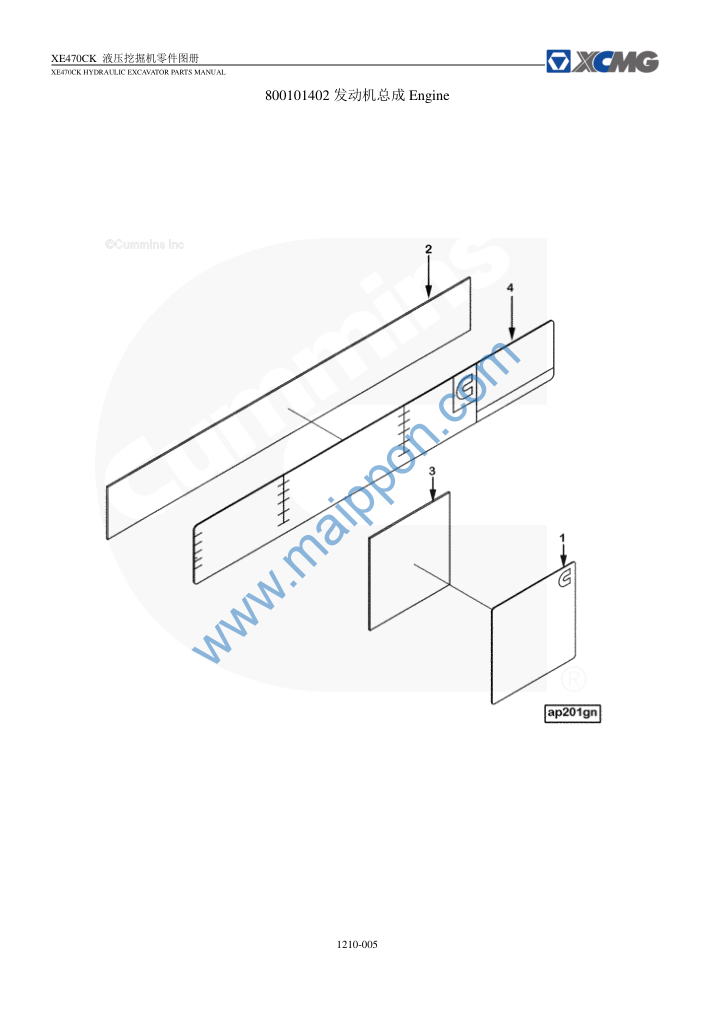

1210-005

Contact: maipponxcmg@yeah.net

800143373   铭牌 Label

800142759   胶带Tape 3 胶带 Tape 1

800142760   铭牌 Label

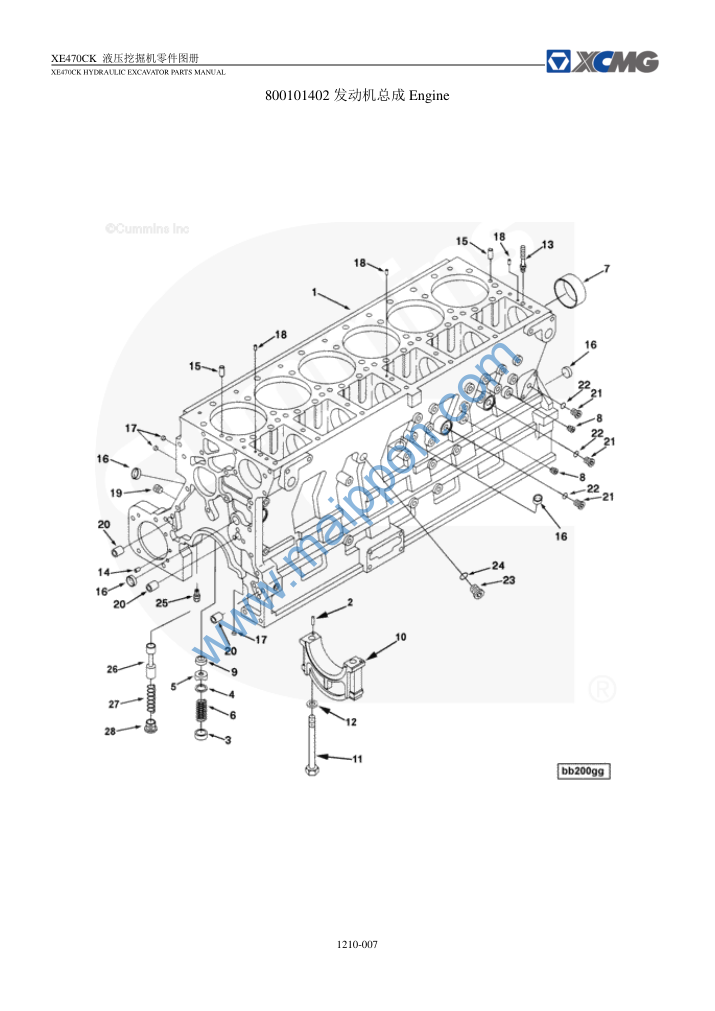

1210-007

Contact: maipponxcmg@yeah.net

800142764   缸体 CylinderBlock

800142765   大头钉 Stud

800142766   护圈插头 Retainer Plug

800142767   平垫圈 Washer

800142768   气阀碟 DiscValve

800142769   压缩弹簧 Spring

800142770   轴衬 Collar Shaft

800142771   管塞 Plug

800142772   Prs调整气阀座 ValveSeat 1 0 80014 2773 主轴承盖 Main Bearing 1 CCaapp

800142774   主轴承盖 Main Bearing Cap

800142775   主轴承盖 Main Bearing Cap

800142777   平垫圈 Washer

800142778   六角头螺栓 Bolt

800142779   大头钉 Stud

800142780   大头钉 Stud

800142781   大头钉 Stud

800142782   膨胀塞 Plug

800143882   膨胀塞 Plug

800142783   大头钉 Stud

800143884   管塞Plug

800142784   挡圈钉 RingDowel

800142785   螺塞 Plug

800143557   O 形密封圈 O-Ring

800142787   螺塞 Plug

800143893   O 形密封圈 O-Ring

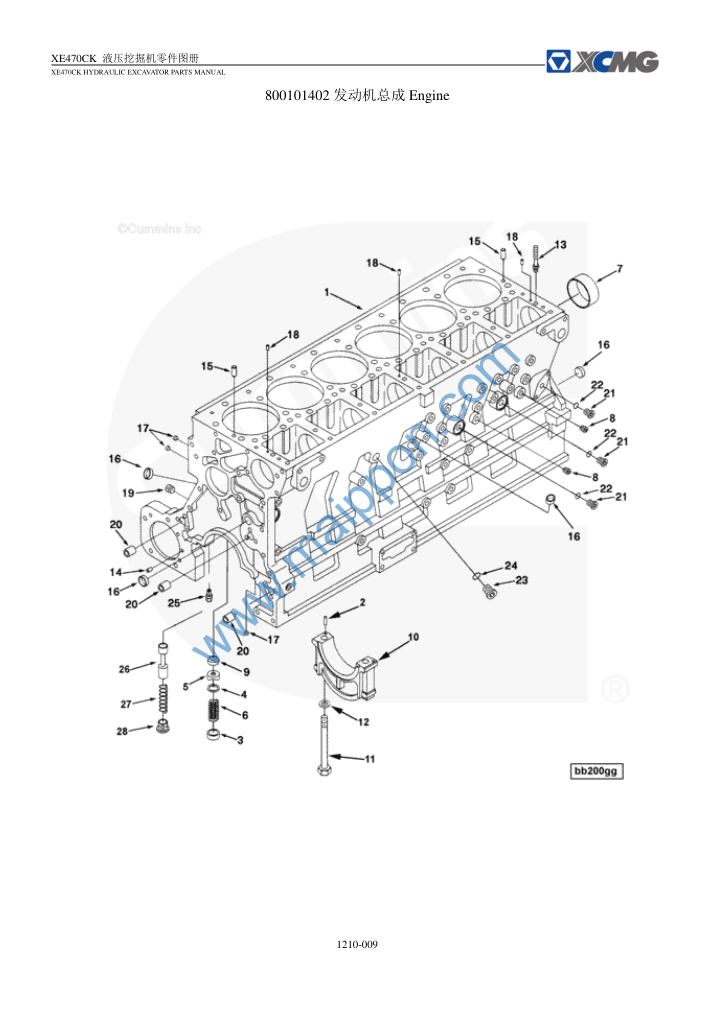

1210-009

Contact: maipponxcmg@yeah.net

800142788   粘度传感器 2 6 80014 2789 ViscositySensor

800142789   调整螺塞 Plug 2 7 800142790 压缩弹簧Spring 1 28 80014 2791 护圈插头 RetainerPlug 1 2 6 80014 2789

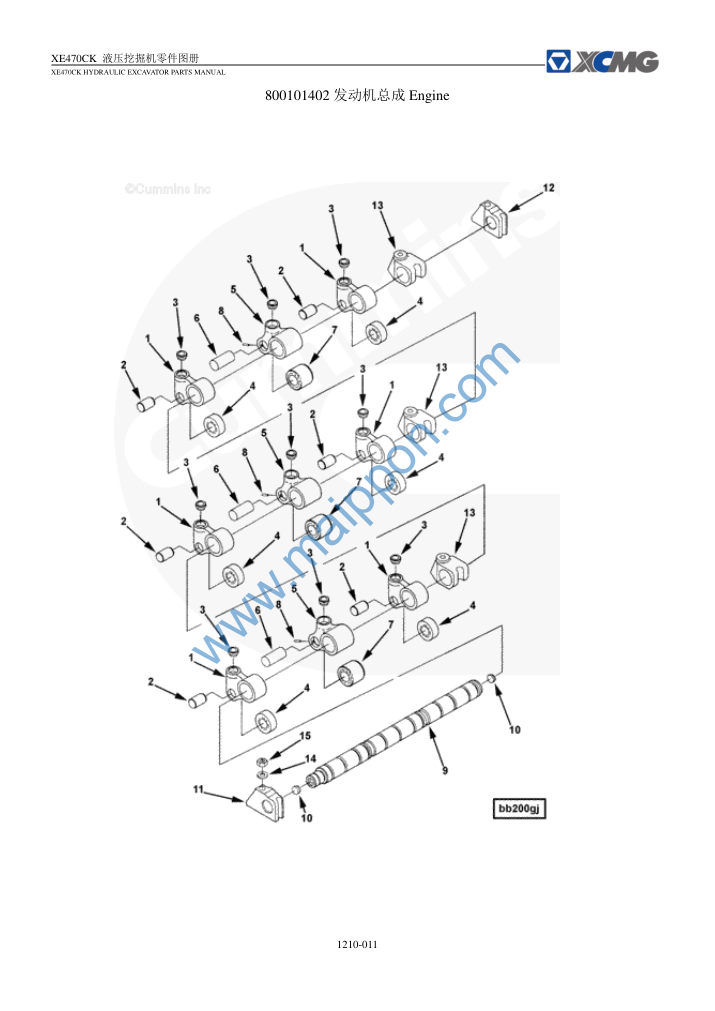

1210-011

Contact: maipponxcmg@yeah.net

800142797   凸轮随动杆 Cam Follower Lever

800142798   L凸e轮ver随 动旋转体钉 Cam Follower Roller Pin

800143896   R挺o杆lle插r P座in Socket

800142799   凸轮随动旋转体 Cam Follower Lever

800142800   L凸e轮ver随 动杆 Cam Follower Lever

800142802   L凸e轮ver随 动选转体钉 Cam Follower Lever

800143896   L挺e杆ver插 座

800142803   凸轮随动旋转体 Cam Follower Lever

800142804   L旋e转ver钉 RollPin

800142806   凸轮随动轴 Cam Follower Shaft

800142807   膨胀塞 Plug

800142808   凸轮随动轴支撑 Support

800142809   凸轮随动轴支撑 Support

800142810   凸轮随动轴支撑 Support

800143858   平垫圈 Washer

800142811   正六角螺母 Nut

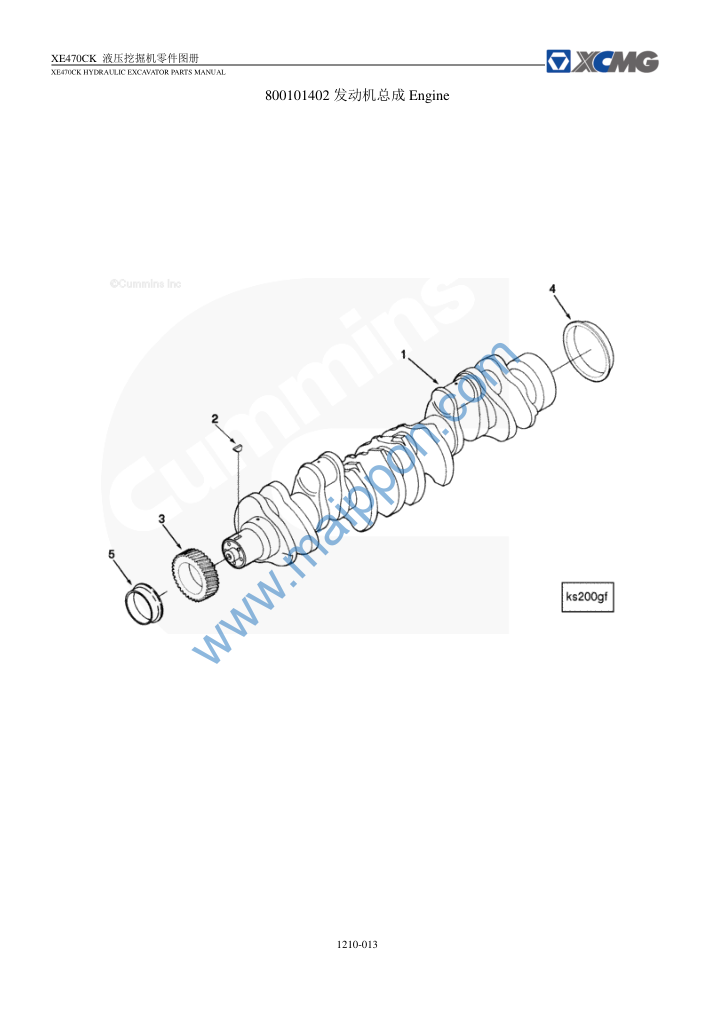

1210-013

Contact: maipponxcmg@yeah.net

800142813   发动机曲轴 Crankshaft

800142814   平键 Key

800142815   曲轴齿轮 Gear

800142816   耐磨轴衬套 Bushing

800142817   耐磨轴承套 Bushing

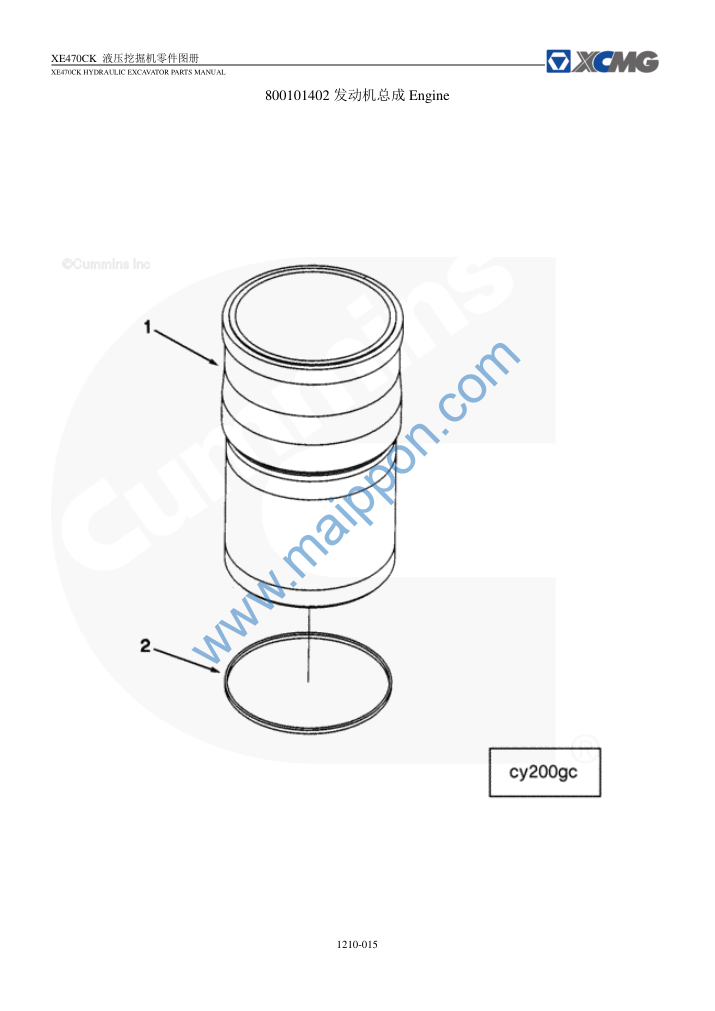

1210-015

Contact: maipponxcmg@yeah.net

800142820   缸套 CylinderLiner

800142707   矩形密封圈 Washer

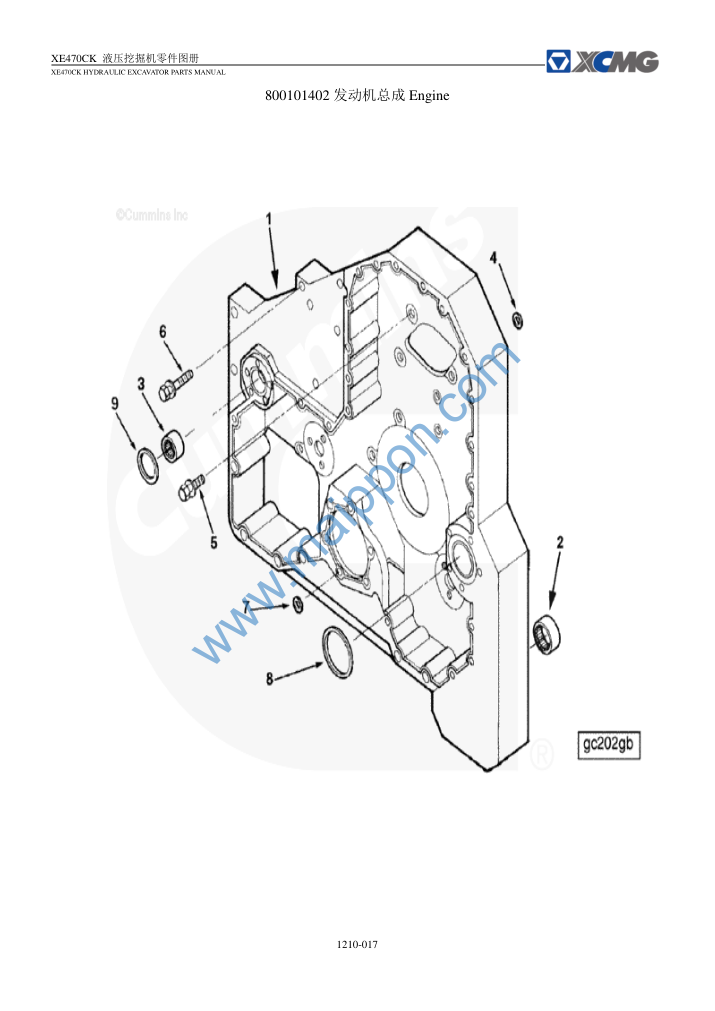

1210-017

Contact: maipponxcmg@yeah.net

800142822   齿轮箱 Gear Case

800142823   滚针轴承 Roller Bearing

800142824   滚针轴承 Roller Bearing

800142731   O 形密封圈 O-Ring

800142825   带垫圈冒螺钉 Screw

800142826   带垫圈冒螺钉 Screw

800142713   矩形密封圈 Washer

800142729   矩形密封圈 Washer

800142730   矩形密封圈 Washer

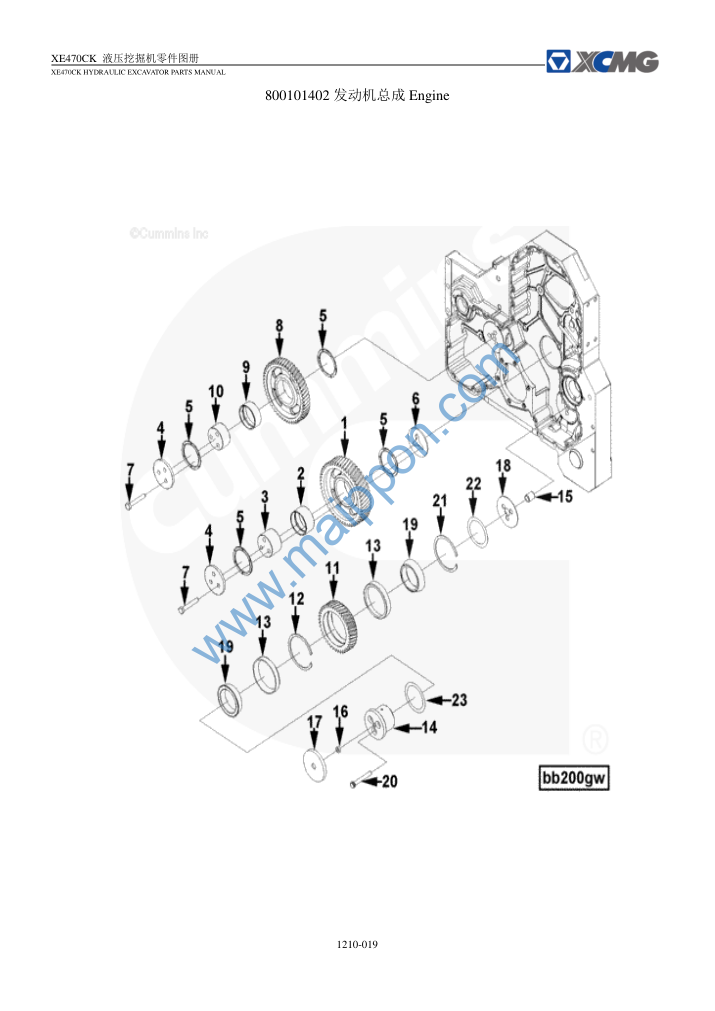

1210-019

Contact: maipponxcmg@yeah.net

800142829   堕轮 Idler Gear

800142830   轴衬 Collar Shaft

800142831   堕轮轴

800143888   齿轮保持器 Gear Retainer

800142832   止推轴承 Thrust Bearing

800142833   推力轴承耐磨片 Thrust Bearing WearFlate

800142834   六角头螺栓 Bolt

800142835   堕轮 IdlerGear

800142836   轴衬 Collar Shaft

800142837   堕轮轴 IdlerShaft

800142839   堕轮 IdlerGear

800142840   挡圈 Back Up Ring

800142841   滚动轴承 Roller Bearing

800142842   堕轮轴 Idler Shaft

800142784   挡圈钉RingDowel

800142732   矩形密封圈 Washer

800142843   安装垫片 Washer

800142844   安装垫片 Washer

800142845   滚动轴承 Roller Bearing

800142846   角头螺栓 Bolt

800142840   挡圈 Back Up Ring

800142847   垫片 Washer

800142848   垫片 Washer

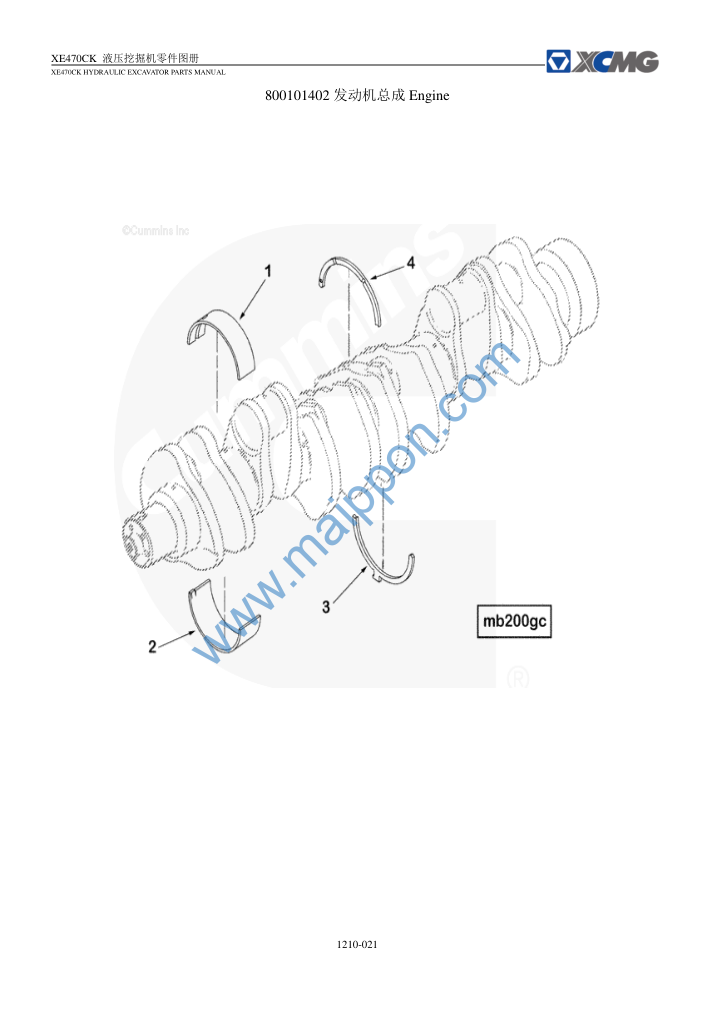

1210-021

Contact: maipponxcmg@yeah.net

800142851   主轴承 Bearing

800142852   主轴承 Bearing

800142853   止推轴承 Thrust Bearing

800142854   止推轴承 Thrust Bearing

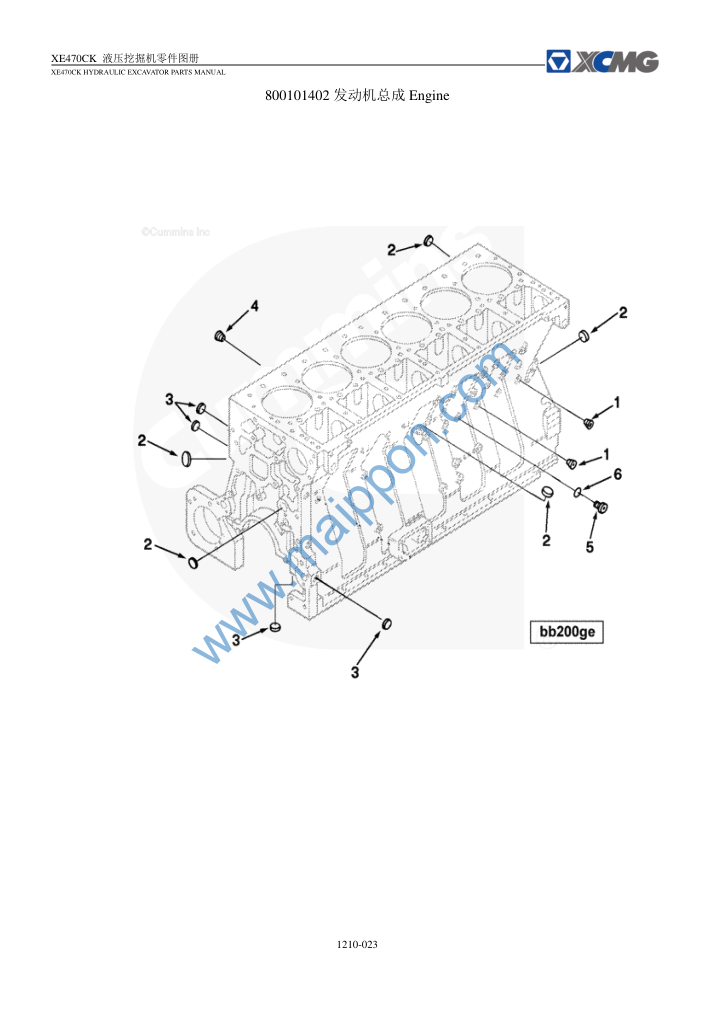

1210-023

Contact: maipponxcmg@yeah.net

800142771   管塞 Plug

800142782   膨胀塞 Plug

800143882   膨胀塞 Plug

800143884   管塞 Plug

800142785   螺塞 Plug

800143557   O 形密封圈 O-Ring

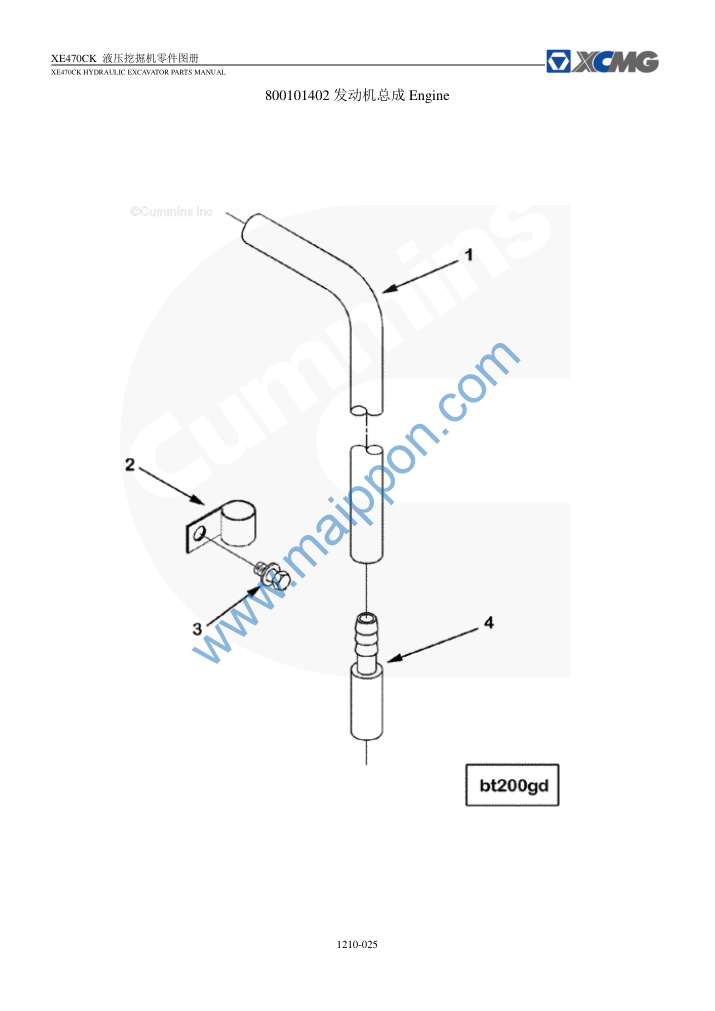

1210-025

Contact: maipponxcmg@yeah.net

800142871   普通软管 Hose

800143425   夹子Clamp

800142825   带垫圈冒螺钉Screw

800142872   呼吸器管 Breather Tube

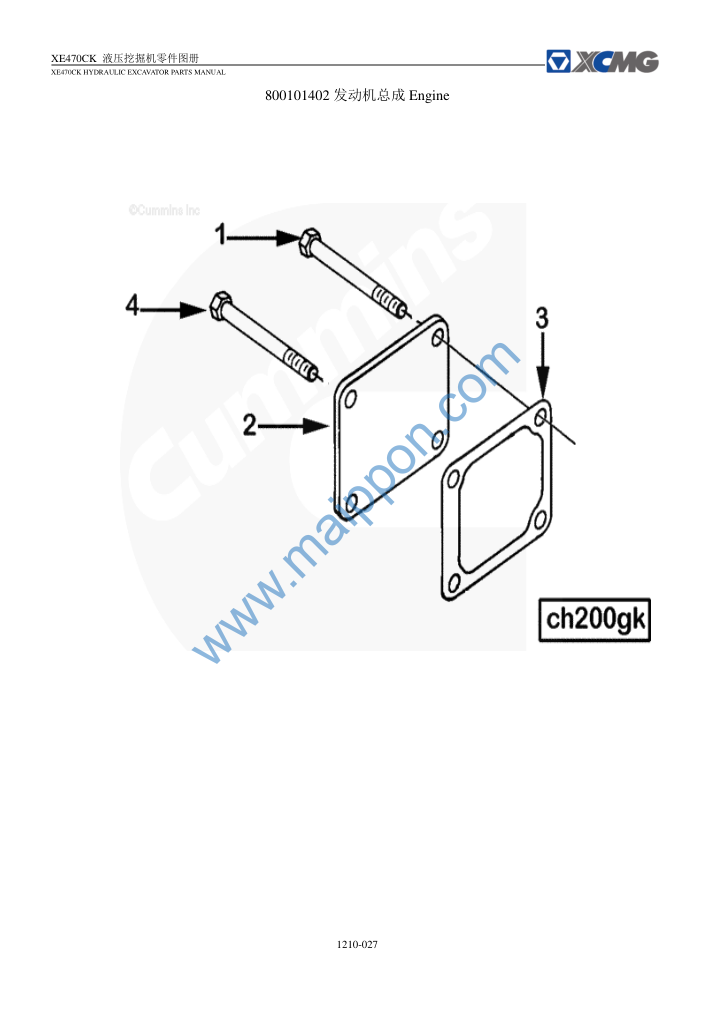

1210-027
