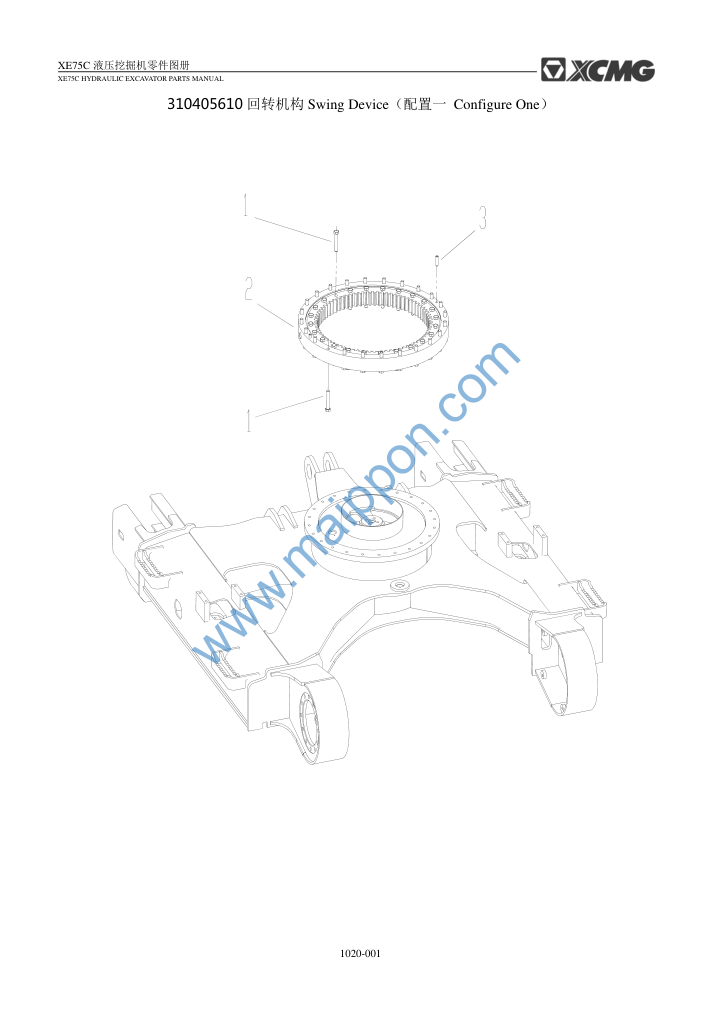

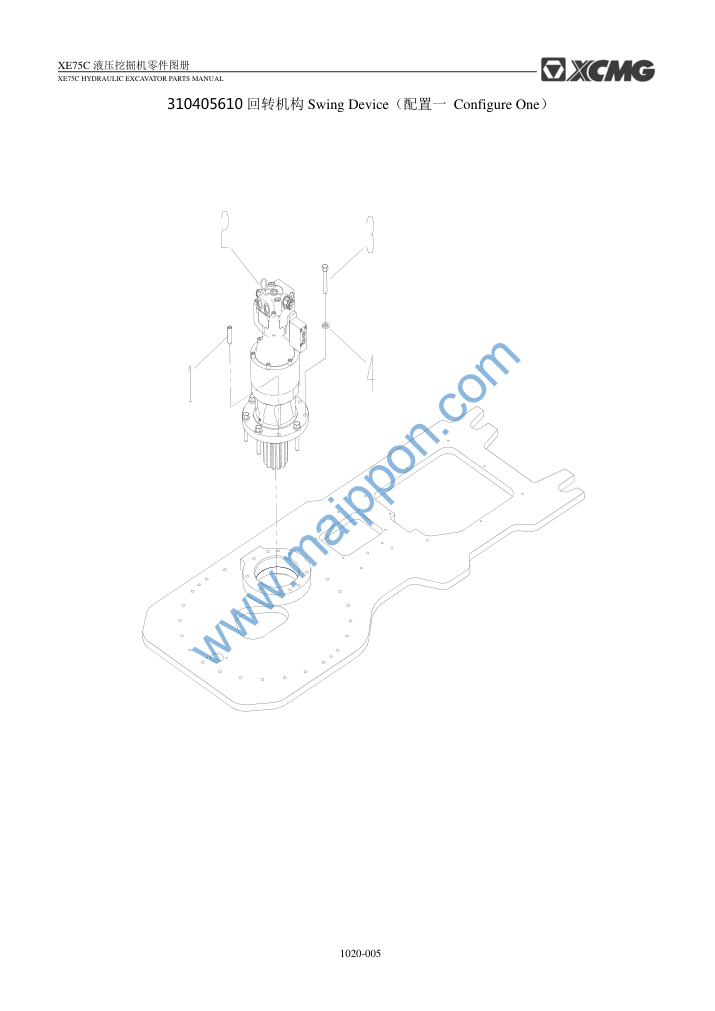

XE75C 液压挖掘机 – 回转装置 Swing Device 310405610
Contact: maipponxcmg@yeah.net
805006391 螺栓 M16×90 Bolt 48

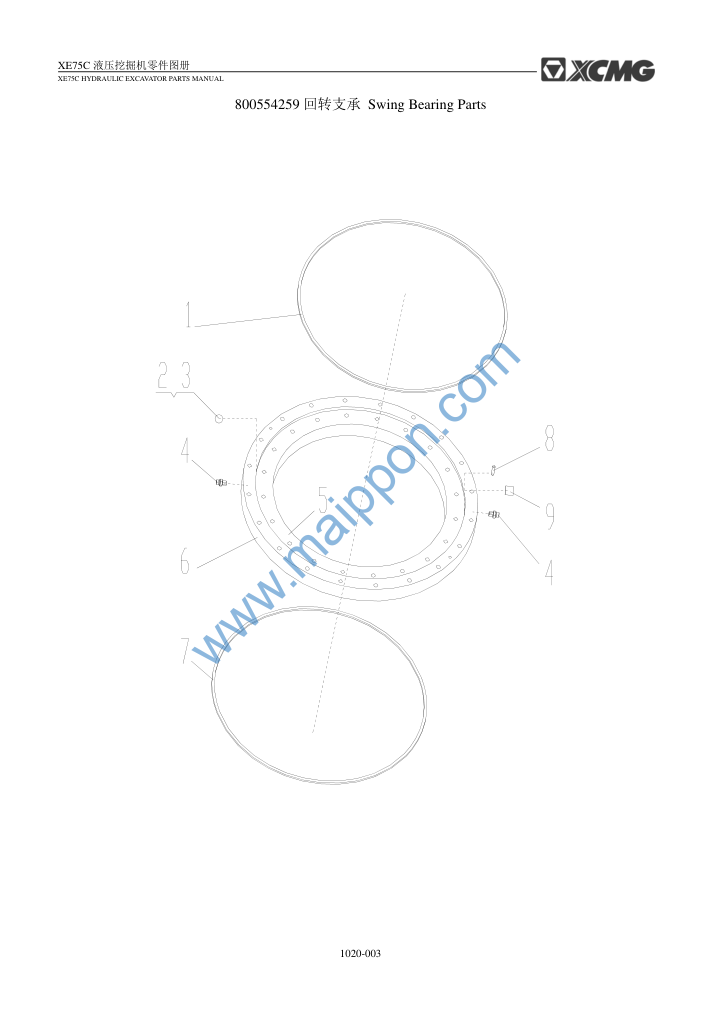

800554259 回转支承 Swing Bearing 1
805603855 销 12×50 Pin 2
Contact: maipponxcmg@yeah.net
800554783 上密封圈 Seal 1
800554785 滚珠 Steel Ball 91
800554786 隔离块 Piece 91
800554789 油嘴 Grease Nipple 2
800554781 内圈 Inner Ring 1
800554782 外圈 Outer Ring 1
800554784 下密封圈 Seal 1
800554787 销 Pin 1
800554788 堵塞 Plug 1
Contact: maipponxcmg@yeah.net
805603532 销 18×60 Pin 1
803071776 回转马达 Swing Motor 1
805046851 螺栓 M16×70 Bolt 6
805338296 垫圈 16 Washer 6
Contact: maipponxcmg@yeah.net
310406146 螺栓 Bolt 48
800554259 回转支承 Swing Bearing 1
805603855 销 12×50 Pin 2
Contact: maipponxcmg@yeah.net
310406147 销Pin 1
805046851 螺栓 M16×70 Bolt 7
805338296 垫圈 16 Washer 7
