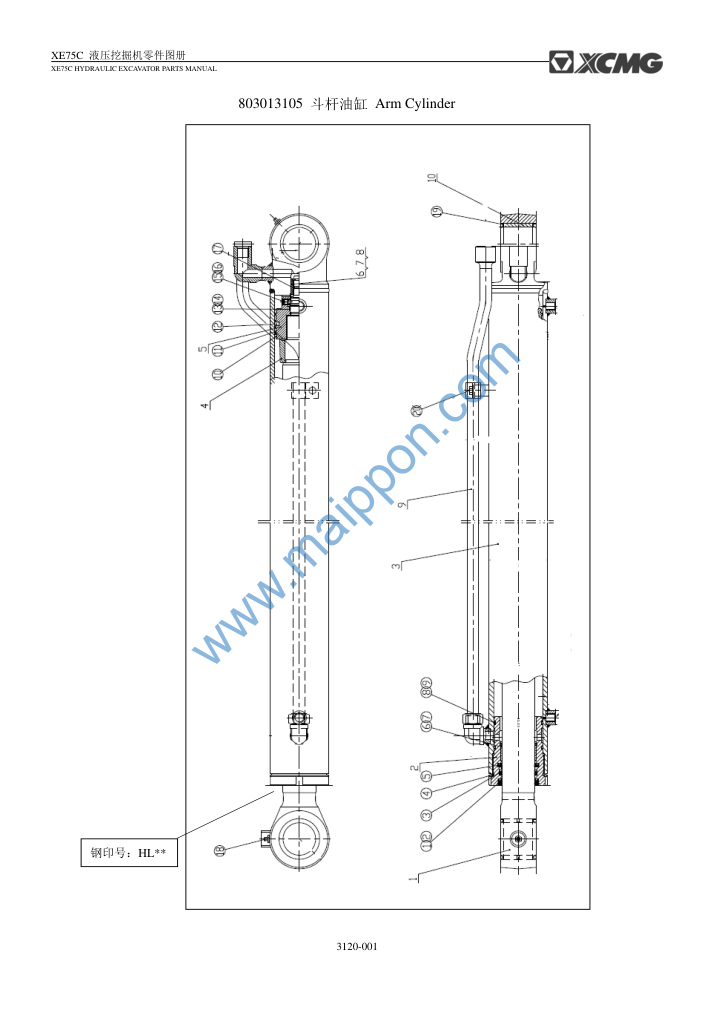

860200611 活塞杆 Piston Rod 1
860200612 导向套 D90/d60 1
860200613 缸体组件 Cylinder 1
860200614 缓冲套 D90/d60 1
860200615 活塞 D90/d60 Piston 1
860200616 卡圈Φ32×2.8 Clip 1
860200617 后缓冲套Φ32×32 1
860200618 挡圈Φ26×2.7 1
860200619 油管组件A Hose 1
860200620 A型轴套 Bushing 2

Contact: maipponxcmg@yeah.net

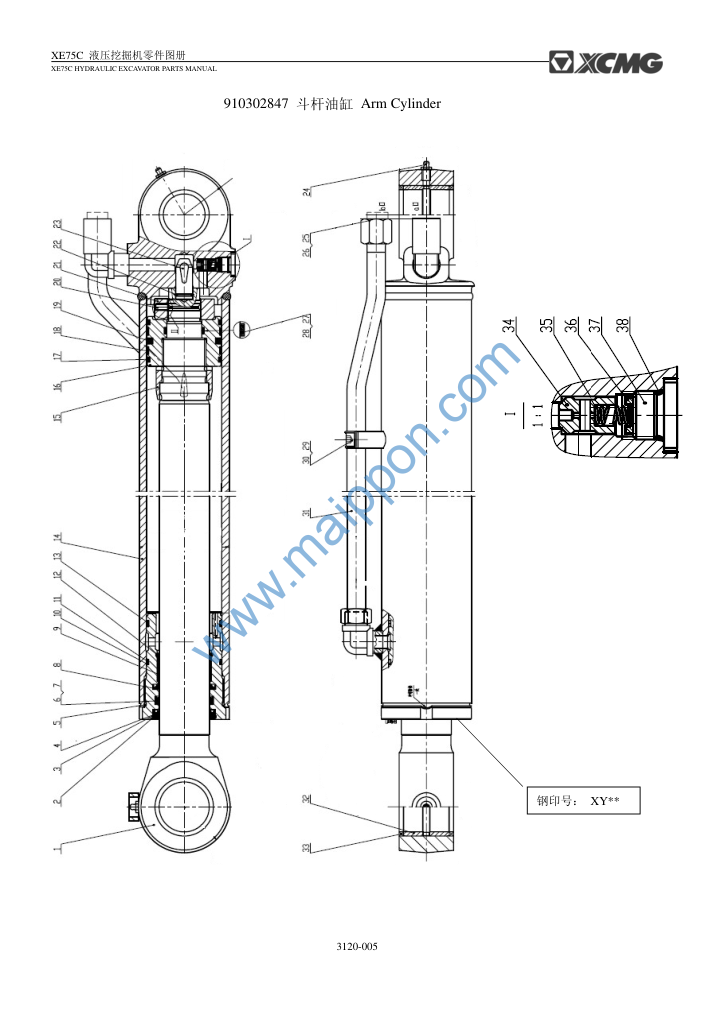

910302849 活塞杆 Piston Rod 1
910302853 导向套 Guide Sleeve 1
910302040 挡圈 Back-up Ring 1
803195208 防尘圈 Dust Seal 1
803195118 O形圈 O-Ring 1
803195210 挡圈 Back-up Ring 1
803195218 轴密封 Shaft Dust Seal 1
803195212 缓冲环 Cushion Ring 1
915302903 滑动轴承Sliding Bearing 1
803195213 挡圈 Back-up Ring 1
803195214 O形圈 O-Ring 1
805403098 挡圈 Back-up Ring 1
803195215 哑铃型密封 Dust Seal 1
910302854 缸筒 Cylinder 1
910302860 缓冲套 Cushion 1
910302861 活塞 Piston 1
803195123 防污环 Dust Seal 2
803195124 支承环 Support Ring 2
803195125 孔密封 Hole Dust Seal 1
805104504 螺钉M8×18 Screw 1
910302862 螺母 Nut 1
910301986 钢丝挡圈 Back-up Ring 1
910301987 缓冲柱塞 Piston 1
801100336 油杯M10×1 Oiler Cup 2
803195206 O形圈 O-Ring 2
803176292 螺塞 Nut 2
803195216 挡圈 Back-up Ring 2
803195217 O形圈 O-Ring 1
910302006 管箍组件 Clamp 1
805100151 螺钉M10×16 Screw 1
910302863 油管组件 Hose 1
910302865 衬套 Bush 2
803195114 防尘圈 Back-up Ring 4
910303987 阀芯 Spool 1
910301877 弹簧 Spring 1
910303091 垫片 Washer 1
910301875 螺塞 Nut 1
803195116 O形圈 O-Ring 1
