XE490DK Excavator Parts

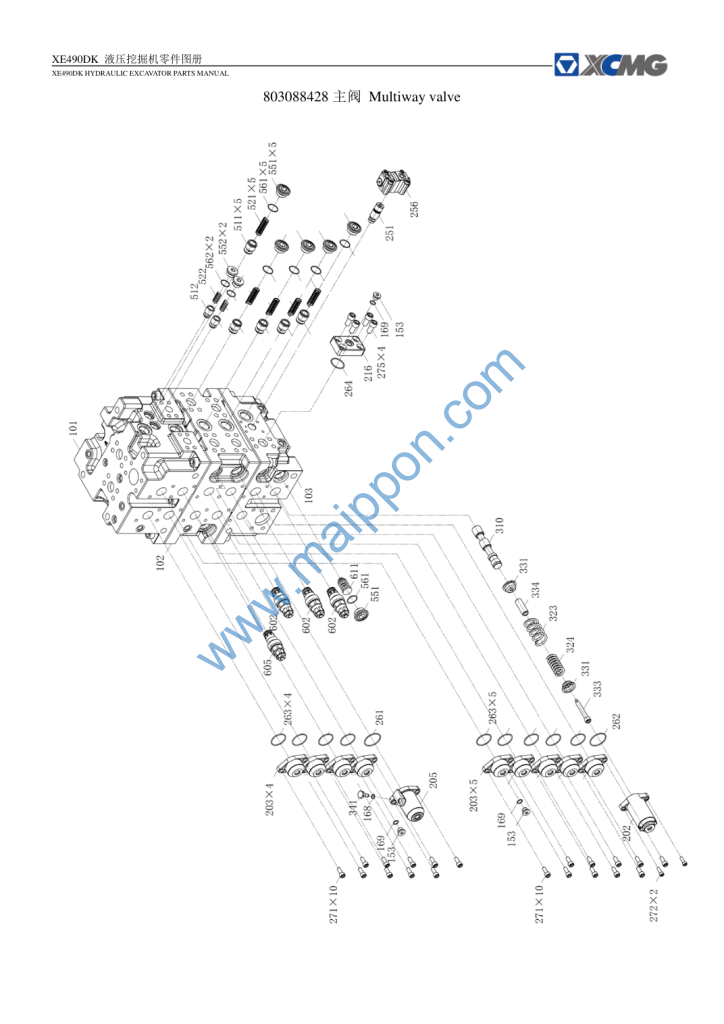

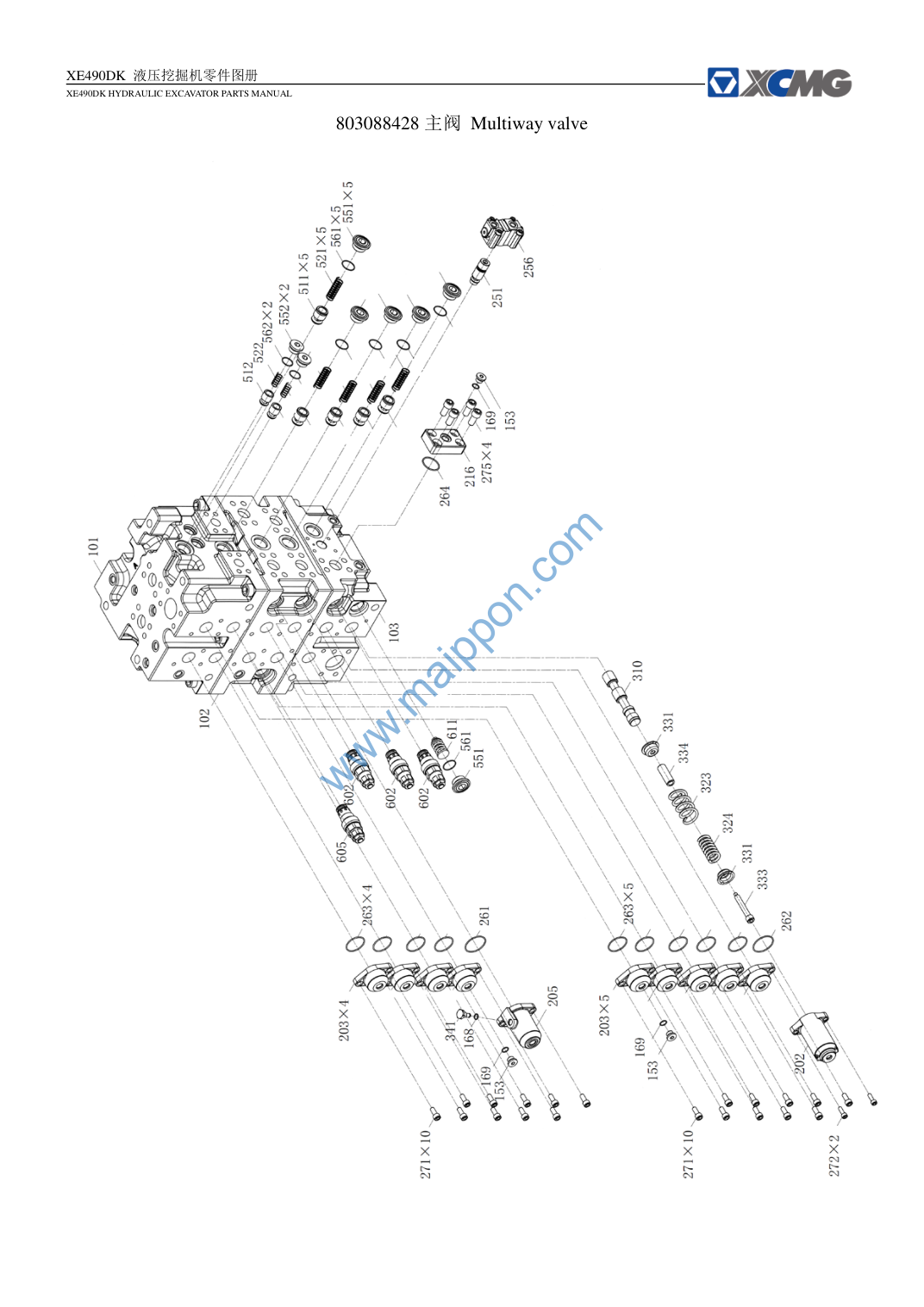

Part No.: 803088428
Model: XE490DK Excavator
Email: maipponxcmg@yeah.net

Parts List

860139705 A CASING A

860139706 B CASING B

860139707 C CASING C

860139425 PLUG

860125861 O-RING

860125566 O-RING

860126645 COVER, spring

860125568 COVER, spool

860139711 FLANGE, blank

803089238

803089236

860125578 O-RING

860126652 O-RING

860125577 O-RING

860130700 SQUARE-RING

860125582

803008933

860125642

860139729

860139730 SPRING

860139731 SPRING

860126674 SEAT, spring

860120428 BOLT

860126842 STOPPER

860125574 PLUG

860125612 POPPET

860139739 POPPET

860125617 SPRING

803008940 SPRING

860125625 PLUG

803008943 PLUG

860125629 O-RING

819909371 O-RING

860126694

860139742

860125633

803009022 PLUG

860126746 PLUG

860139708 O-RING

860127254 O-RING

860125630 O-RING

860201354 O-RING

860139710

860125638 FLANGE

860125639 FLANGE

860139713 SUB-

860150533

803089237

860139716

860139718 SUB-

860125643 O-RING

860139719

860127259

860139736 ORIFICE

860125614 POPPET

860139740 POPPET

860125619 SPRING

860125621 BALL, steet

860125622 SEAT, spring

860125623 SPRING

860125626 PLUG

860120408 PLUG

860139956

860125709 NAME PLATE

860126754 PIN

860125567 COVER, spring

860139709 COVER, spring

860139720 SPOOL, travel

860150534 1

860150535 1

860150536 SPOOL, bucket

860139724 SPOOL, swing

860150537 2 SPOOL, arm2

860150538 2 SPOOL, boom2

860150539 SUB-

860139728 SPOOL, option

860139732 SEAT, spring

860139733 BOLT, spacer

860139734 STOPPER

860139735 PISTON

860139737 SPRING

860125604 SPRING

860139738 SPRING

860126760 PLUG

860126762 O-RING
