XE490DK Excavator Parts

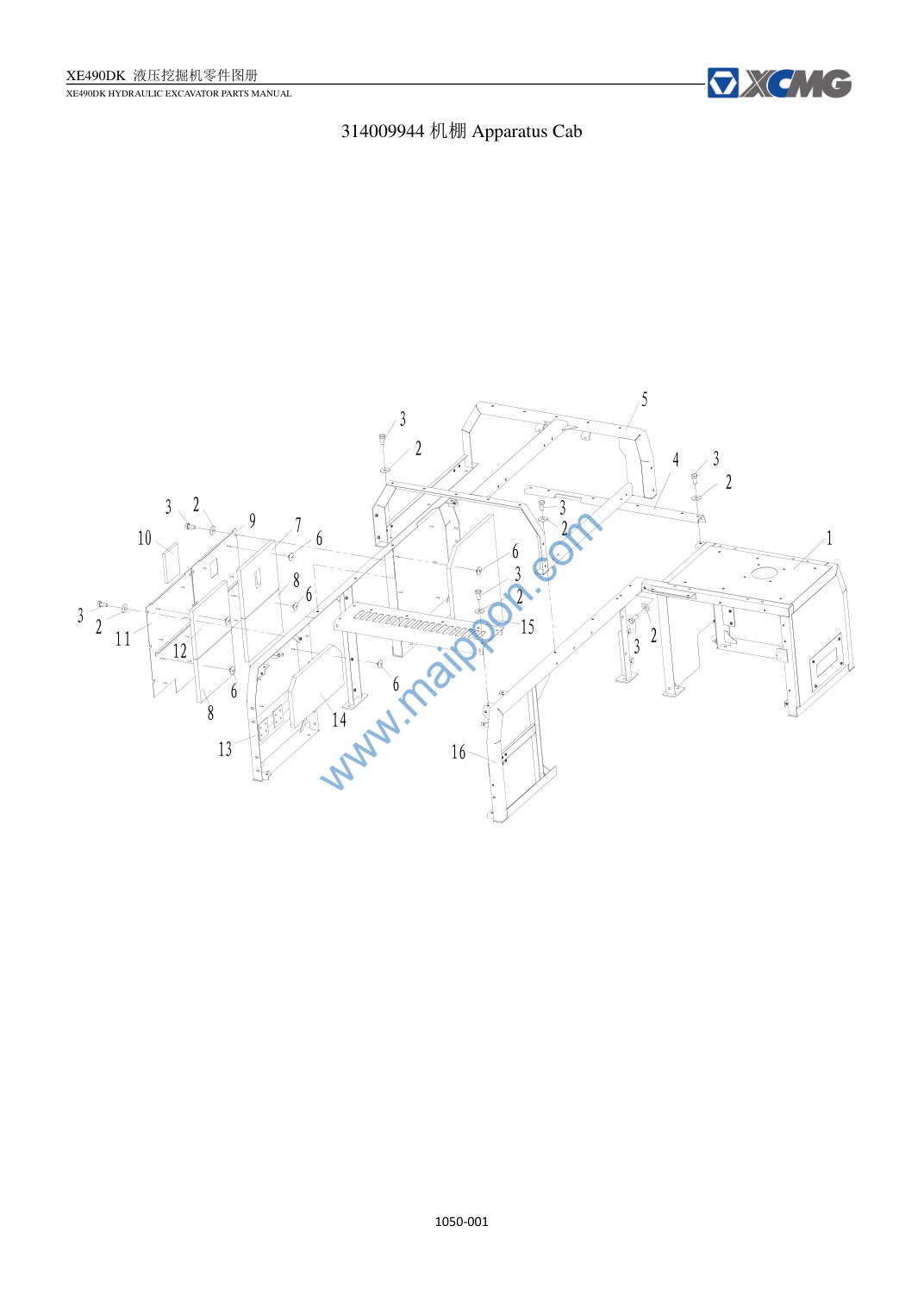

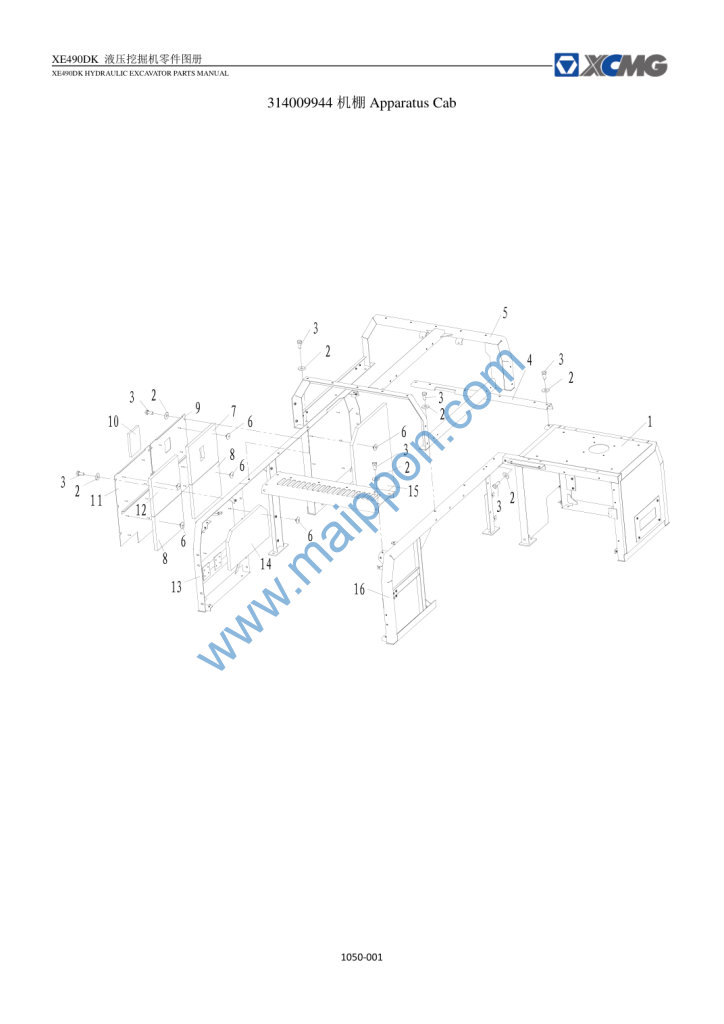

Part No.: 314009944
Model: XE490DK Excavator
Email: maipponxcmg@yeah.net

Parts List

314010299 Frame

329900298 Washer

805046469 M12 25 10.9

314010348 Beam

314010334 Frame

801969777 Plastic Cap

314004409 Sponge

314004410

314004406 Cover

314004411 Sponge

314004413 Cover

314004415

314010308 Frame

314004325 Sponge

314004326 Sponge

314010326

314010331 Cover

314010350 Cover

314010354 Cover

314010346 Cover

314004359 Sponge

314010342 Cover

314004361 Cover

314004363 Sponge

314004416 Cover

314008006 Sponge 1

314004368 Sponge 1

819909364

329900301 Washer

805046508 M8 20

314009701 Cover

314004431 Cover

805006412 M12 30

329900303 Washer

314005235 Sponge

314004436 Sponge

314004437

329900297 Washer

805604389 16 Pin

314006599 Thrust Plate

314006595

801736995 Air Spring

316003822 Stopper Ball

805238371 M10 10 Nut

390201543 M8 10 Nut

314004440 Cover

801503870 Lock

805046509

314004449 Sponge

314004448 Sponge

314004489 Anti-skid Plate

314004455

314004459 Anti-skid Plate

314004458 Sponge

314008010 Sponge

314008012 Sponge

314008011 Sponge

314009956 Door

801905669 Stopper Ball

805238378 M8 10 Nut

805011330

314009967

314009916 Guide Seat

314009917 Pressing Plate

805046619 M10 60 Bolt

314008813

314004490 Stopper

805046416 M10 30 Bolt

314004485 Pull-Rod

314006928

314006929

805046841 Bolt

314011344 Up Shield

314011348 Down Shield
