脚先导阀 Pedal Pilot Valve (803072054)

XE490CH 液压挖掘机零件图册 / Parts Catalog

---

1530-001

Contact: maipponxcmg@yeah.net

860120224   阀体 Valve Body

860120225   阀盖 Cover

860120226   堵头 Plug

860120227   ROH堵头 ROH Plug

860120228   O形圈 O-Ring

860120229   阀座 Valve Seat

860120230   阀座 Valve Seat

860120231   衬套 Bushing

860120232   轴承盖钢珠 Steel Ball For Bearing

860120233   端盖 Cover

860120234   堵头 Plug

860120235   润滑脂盖 Grease Cap

860120236   垫片 Washer

860120237   O形圈 O-Ring

860120238   O形圈 O-Ring

860120239   O形圈 O-Ring

860120240   推杆 Push Rod

860120241   垫圈 Washer

860120242   垫圈 Washer

860120243   弹簧座 Spring Seat

860120244   螺钉 Screw

860120245   活塞 Piston

860120246   轴承钢珠 Steel Ball For Bearing

860120247   螺栓 Bolt

860120248   阀芯 Spool

860120249   弹簧座 Spring Seat

860120250   垫圈 Washer

860120251   弹簧 Spring

860120252   弹簧 Spring

860120253   弹簧 Spring

860120254   弹簧 Spring

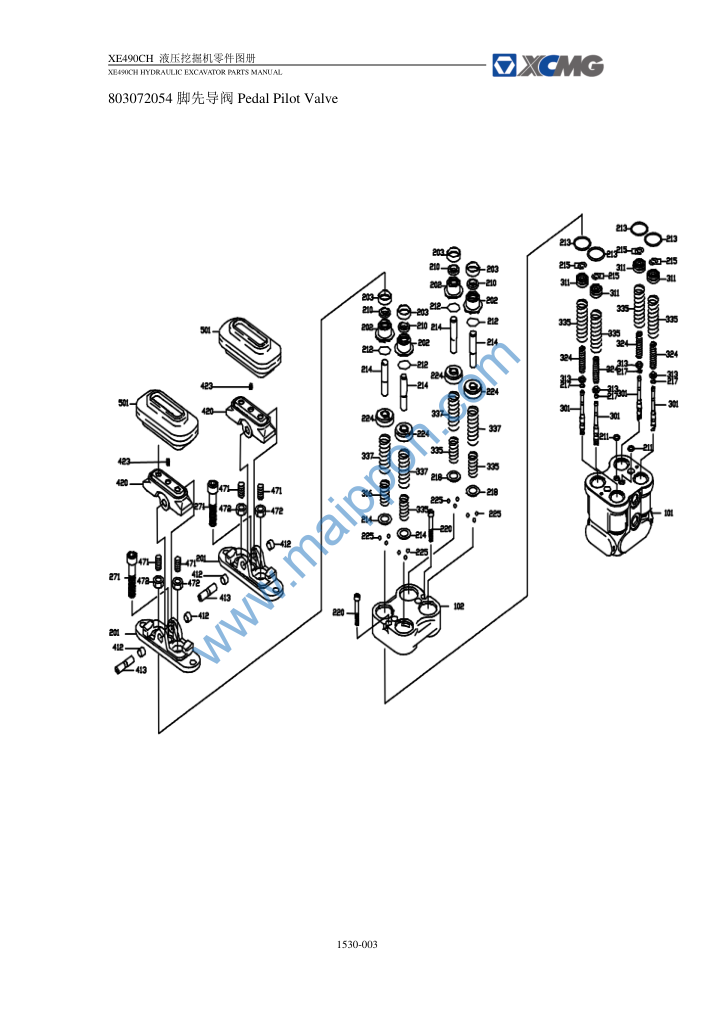

1530-003

Contact: maipponxcmg@yeah.net

860120255   轴套 Bushing

860120256   凸轮轴 Cam Shaft

860120257   凸轮 Cam

860120258   定位螺钉 Screw

860120259   螺钉 Screw

860120260   螺母 Nut

860120261   防尘罩 Dust Cover
