XE490CH 液压挖掘机 – 发动机总成(1) Engine (1/5) (800101402)
发动机总成(1) Engine (1/5) (800101402)
XE490CH 液压挖掘机零件图册 / Parts Catalog
1210-001
Contact: maipponxcmg@yeah.net
800142753 附件驱动皮带轮 Pulley
800142754 六角头螺栓 Bolt
800142755 平垫圈 Washer
1210-003
Contact: maipponxcmg@yeah.net
800142668 进气歧管垫圈 Washer
800142757 进气加热器 Air Heater 3 指示标签 Tag 1
1210-005
Contact: maipponxcmg@yeah.net
800143373 铭牌 Label
800142759 胶带 Tape 3 胶带 Tape 1
800142760 铭牌 Label
1210-007
Contact: maipponxcmg@yeah.net
800142764 缸体 CylinderBlock
800142765 大头钉 Stud
800142766 护圈插头 Retainer Plug
800142767 平垫圈 Washer
800142768 气阀碟 DiscValve Compression
800142769 压缩弹簧 Spring
800142770 轴衬 Collar Shaft
800142771 管塞 Plug
800142772 Prs调整气阀座 Regulator ValveSeat
800142773 主轴承盖 Main Bearing Cap
800142774 主轴承盖 Main Bearing Cap
800142775 主轴承盖 Main Bearing Cap
800142777 平垫圈 Washer
800142778 六角头螺栓 Bolt
800142779 大头钉 Stud
800142780 大头钉 Stud
800142781 大头钉 Stud
800142782 膨胀塞 Plug
800143882 膨胀塞 Plug
800142783 大头钉 Stud
800143884 管塞 Plug
800142784 挡圈钉 Ring Dowel
800142785 螺塞 Plug
800143557 O 形密封圈 Washer
800142787 螺塞 Plug
800143893 O 形密封圈 Washer
1210-009
Contact: maipponxcmg@yeah.net
800142788 粘度传感器 Viscosity Sensor
800142789 调整螺塞 Plug
800142790 压缩弹簧 Compression Spring
800142791 护圈插头 Retainer Plug
1210-001
Contact: maipponxcmg@yeah.net
800142797 凸轮随动杆 Cam Follower Lever
800142798 凸轮随动旋转体钉 Cam Follower Roller Pin
800143896 挺杆插座 Socket
800142799 凸轮随动旋转体 Cam Follower Roller
800142800 凸轮随动杆 Cam Follower Lever
800142802 凸轮随动选转体钉 Cam Follower Roller Pin
800143896 挺杆插座 Socket
800142803 凸轮随动旋转体 Cam Follower Roller
800142804 旋转钉 Roll Pin
800142806 凸轮随动轴 Cam Follower Shaft
800142807 膨胀塞 Plug
800142808 凸轮随动轴支撑 Support
800142809 凸轮随动轴支撑 Support
800142810 凸轮随动轴支撑 Support
800143858 平垫圈 Washer
800142811 正六角螺母 Nut
1210-001
Contact: maipponxcmg@yeah.net
800142813 发动机曲轴 Crankshaft
800142814 平键 Key
800142815 曲轴齿轮 Gear
800142816 耐磨轴衬套 Bushing
800142817 耐磨轴承套 Bushing
1210-001
Contact: maipponxcmg@yeah.net
800142820 缸套 Cylinder Liner
800142707 矩形密封圈 Washer
1210-001
Contact: maipponxcmg@yeah.net
800142822 齿轮箱 Gear Case
800142823 滚针轴承 Roller Bearing
800142824 滚针轴承 Roller Bearing
800142731 O 形密封圈 Washer
800142825 带垫圈冒螺钉 Screw
800142826 带垫圈冒螺钉 Screw
800142713 矩形密封圈 Washer
800142729 矩形密封圈 Washer
800142730 矩形密封圈 Washer
1210-001
Contact: maipponxcmg@yeah.net
800142829 堕轮 Idler Gear
800142830 轴衬 Collar Shaft
800142831 堕轮轴 Idler Shaft
800143888 齿轮保持器 Gear Retainer
800142832 止推轴承 Thrust Bearing
800142833 推力轴承耐磨片 Thrust Bearing Wear Flate
800142834 六角头螺栓 Bolt
800142835 堕轮 Idler Gear
800142836 轴衬 Collar Shaft
800142837 堕轮轴 Idler Shaft
800142839 堕轮 Idler Gear
800142840 挡圈 Back Up Ring
800142841 滚动轴承 Roller Bearing
800142842 堕轮轴 Idler Shaft
800142784 挡圈钉 Ring Dowel
800142732 矩形密封圈 Washer
800142843 安装垫片 Washer
800142844 安装垫片 Washer
800142845 滚动轴承 Roller Bearing
800142846 角头螺栓 Bolt
800142840 挡圈 Back-up Ring
800142847 垫片 Washer
800142848 垫片 Washer
1210-002
Contact: maipponxcmg@yeah.net
800142851 主轴承 Bearing
800142852 主轴承 Bearing
800142853 止推轴承 Thrust Bearing
800142854 止推轴承 Thrust Bearing

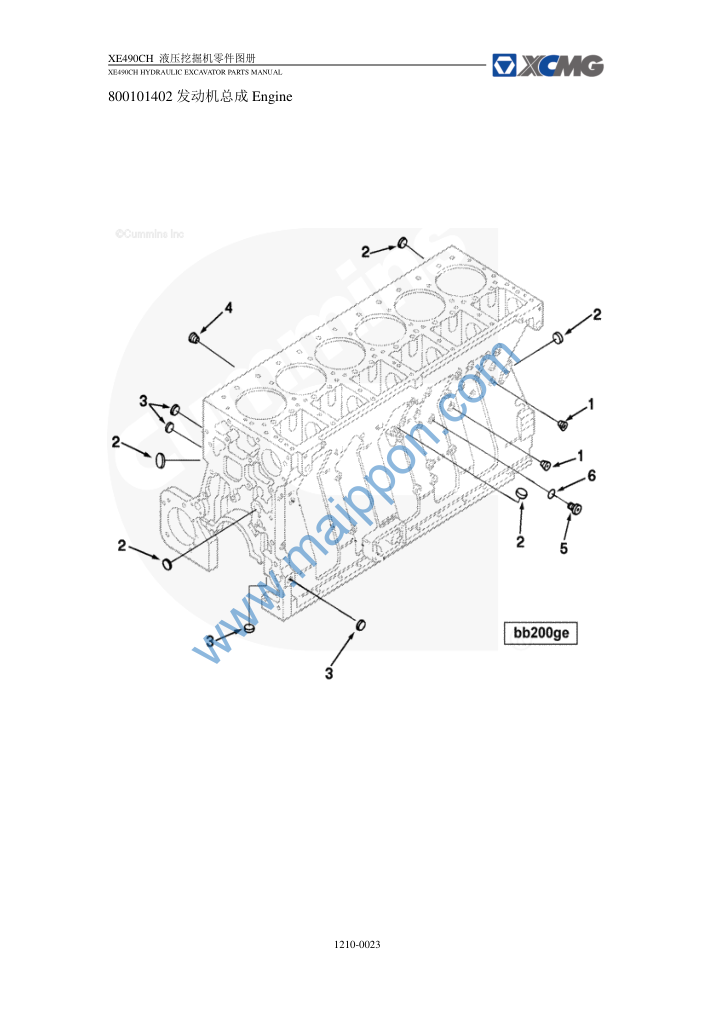

1210-002
Contact: maipponxcmg@yeah.net
800142771 管塞 Plug
800142782 膨胀塞 Plug
800143882 膨胀塞 Plug
800143884 管塞 Plug
800142785 螺塞 Plug
800143557 O 形密封圈 Washer

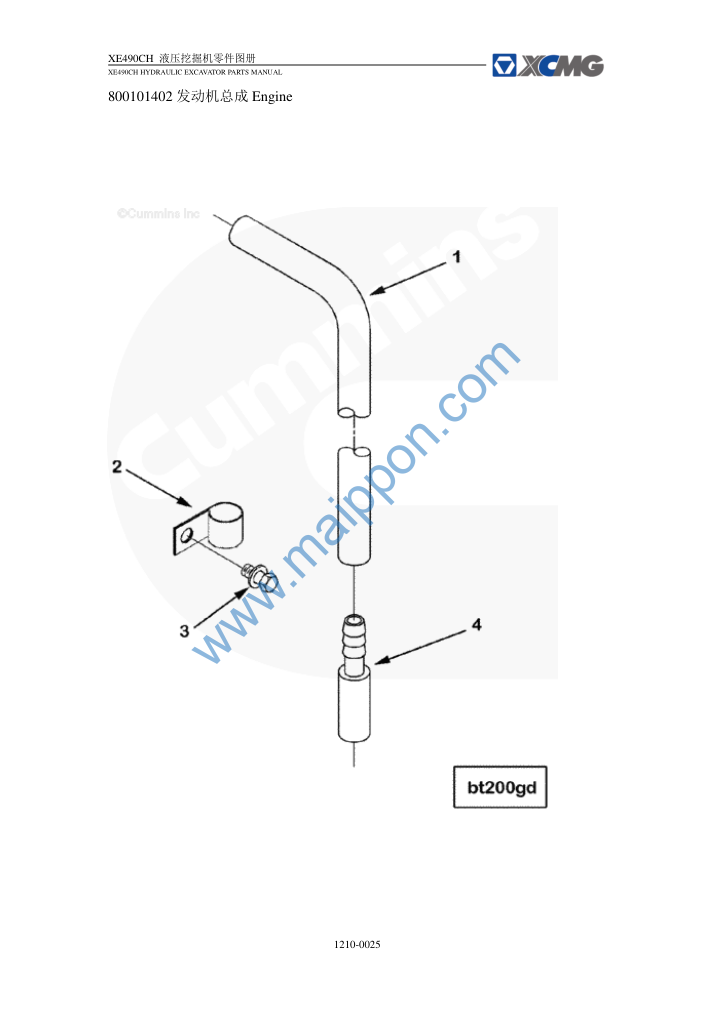

1210-002
Contact: maipponxcmg@yeah.net
800142871 普通软管 Hose
800143425 夹子 Clamp
800142825 带垫圈冒螺钉 Screw
800142872 呼吸器管 Breather Tube

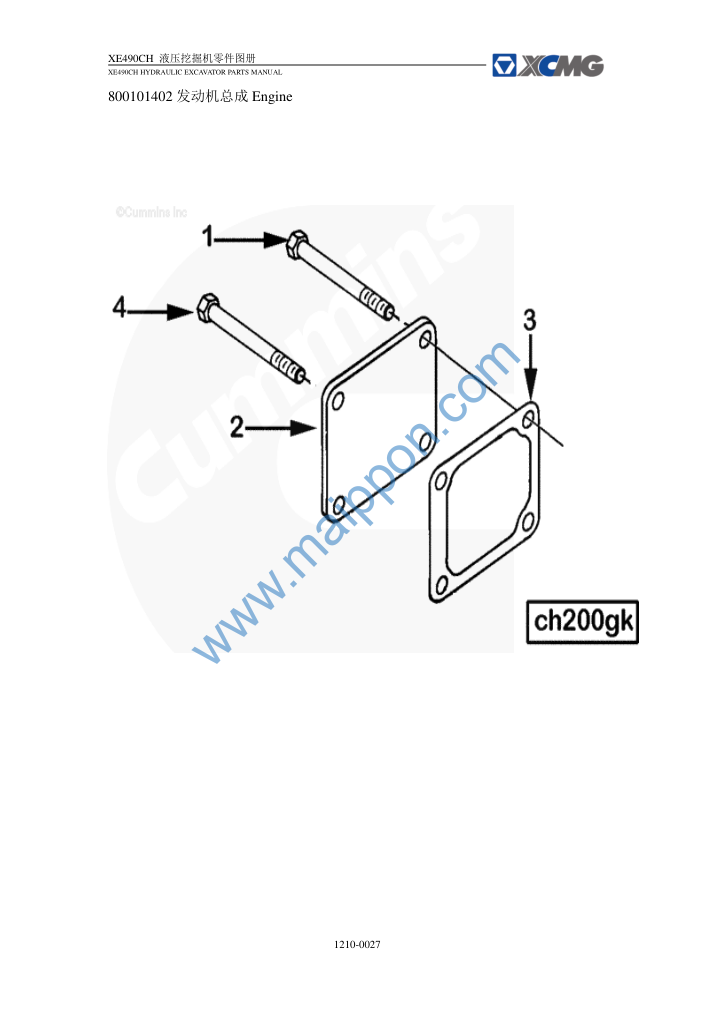

1210-002
Contact: maipponxcmg@yeah.net
800142874 六角头螺栓 Bolt
800142875 盖板 Cover
800142735 加热器管垫圈 Gasket
800142876 六角头螺栓 Bolt

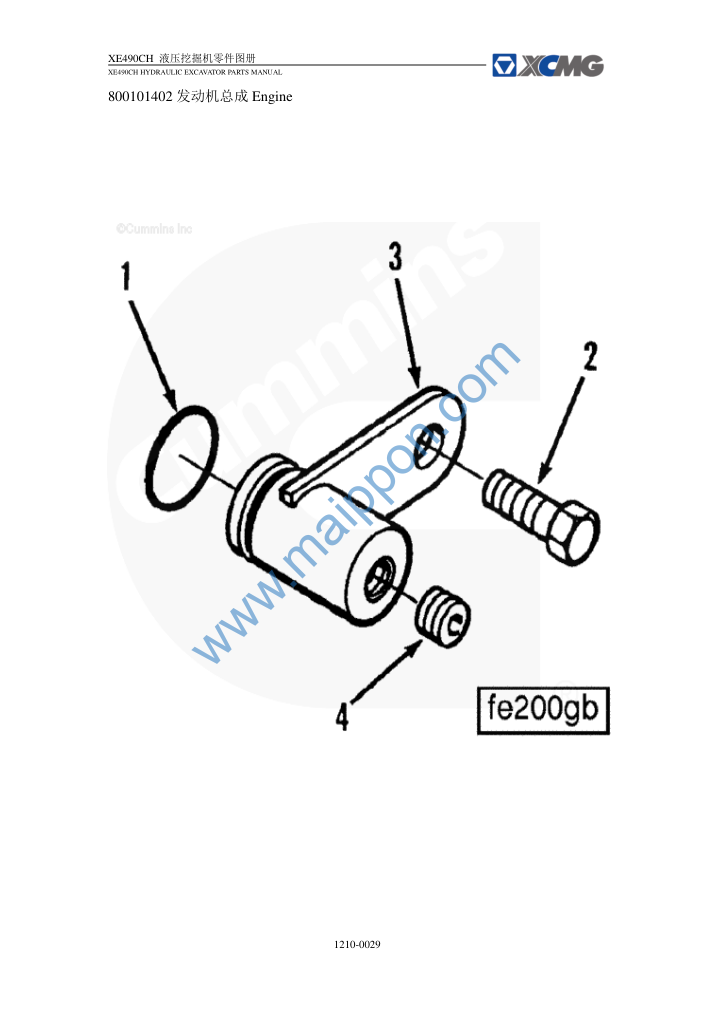

1210-002
Contact: maipponxcmg@yeah.net
800142680 O 形密封圈 Washer
800142878 六角头螺栓 Bolt
800142879 进气接口 Air Intake Connection
800143919 管塞 Plug

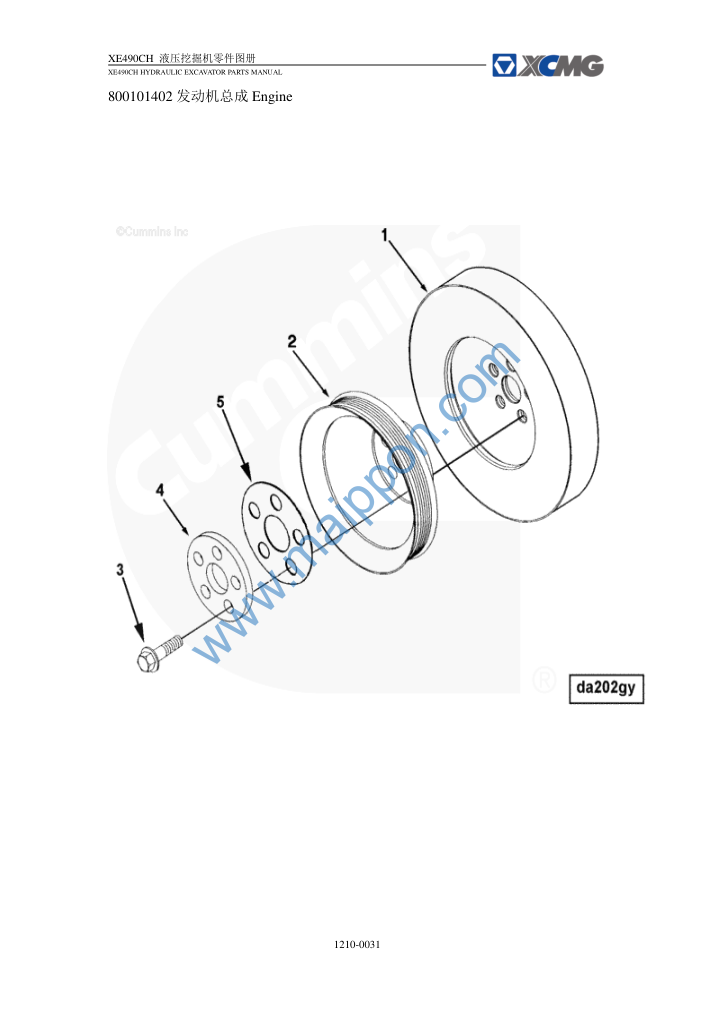

1210-003
Contact: maipponxcmg@yeah.net
800142882 减振器 VibrationDamper
800142883 曲轴皮带轮 CrankshaftPulley
800142884 六角头螺栓 Bolt
800142885 螺丝钳盘 Clamping Plate
800142886 螺丝钳盘 Clamping Plate
