斗杆油缸 Arm Cylinder (803045135)

XE470CK 液压挖掘机零件图册 / Parts Catalog

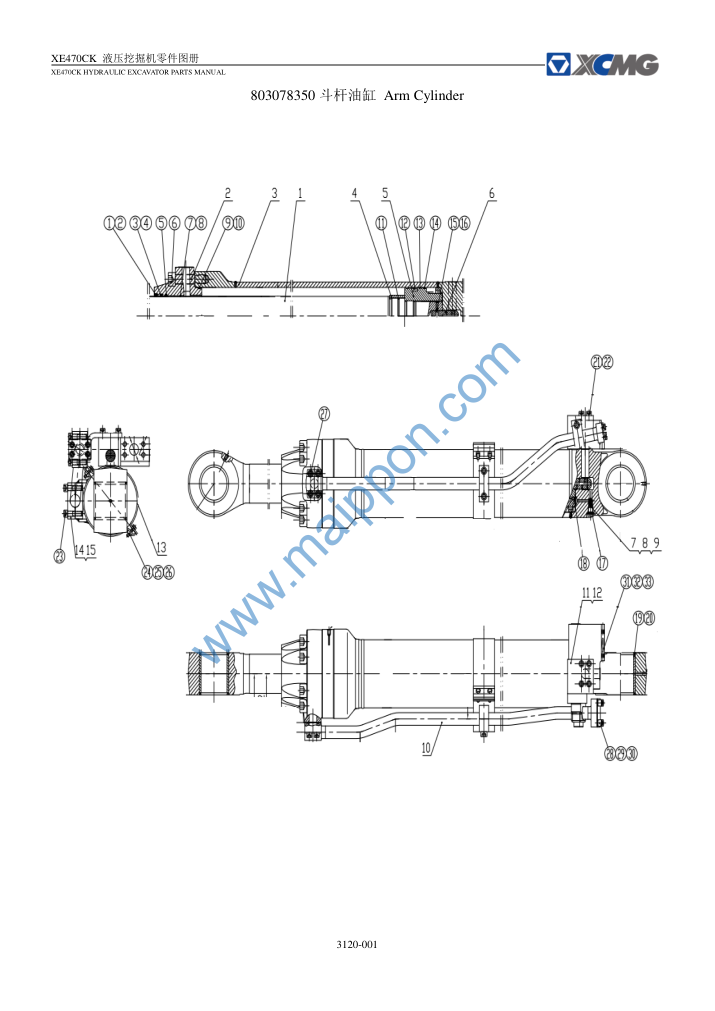

3120-001

Contact: maipponxcmg@yeah.net

860126499   活塞杆 Piston Rod

860125828   端盖 Cover

860202559   缸体 Cylinder Block

860200739   缓冲套 Cushing

860200792   活塞 Piston

860200795   缓冲柱 Cushion

860200796   阀芯 Spool

860200797   弹簧 Spring

860200798   螺堵 Plug

860202560   油管组件 Pipe

860202561   油路块 Block

860202562   连接板组件 Connect Bat

860202563   卡箍组件 Clamp

860200804   压板A Pressing Plate A

860200805   压板B Pressing Plate B ○ 1 ○ 2 ○ 3 ○ 4 ○ 5 ○ 6 ○ 7 ○ 8 ○ 9 ○ 10 ○ 11 ○ 12 ○ 13 ○ 14

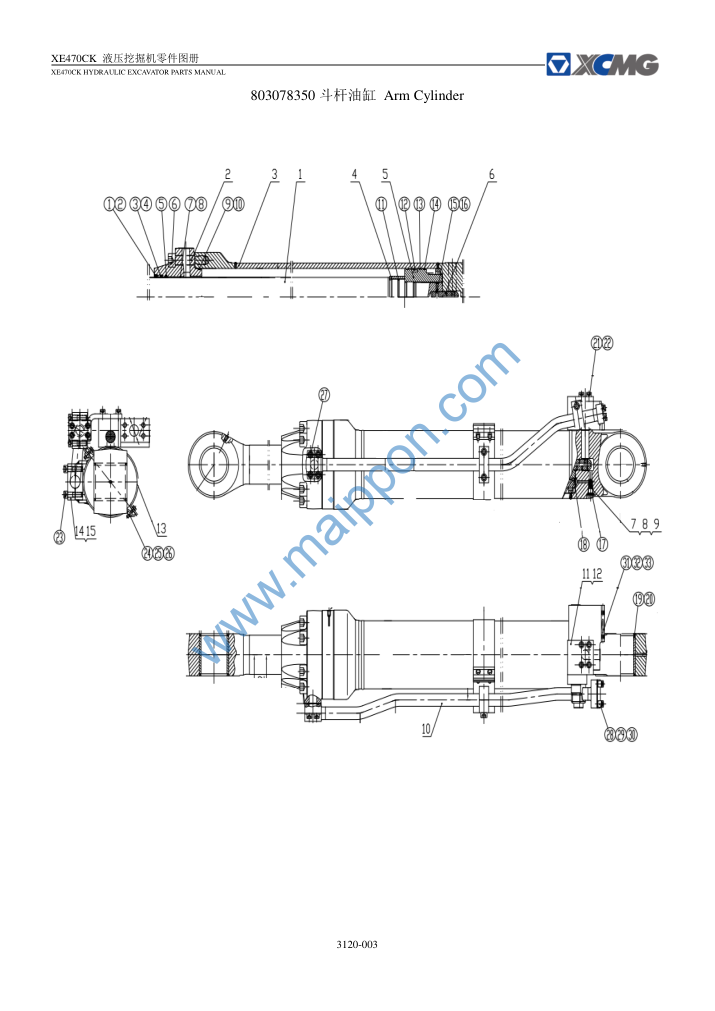

3120-003
