发动机总成(5) Engine (5/6) (800101402)

XE470CK 液压挖掘机零件图册 / Parts Catalog

---

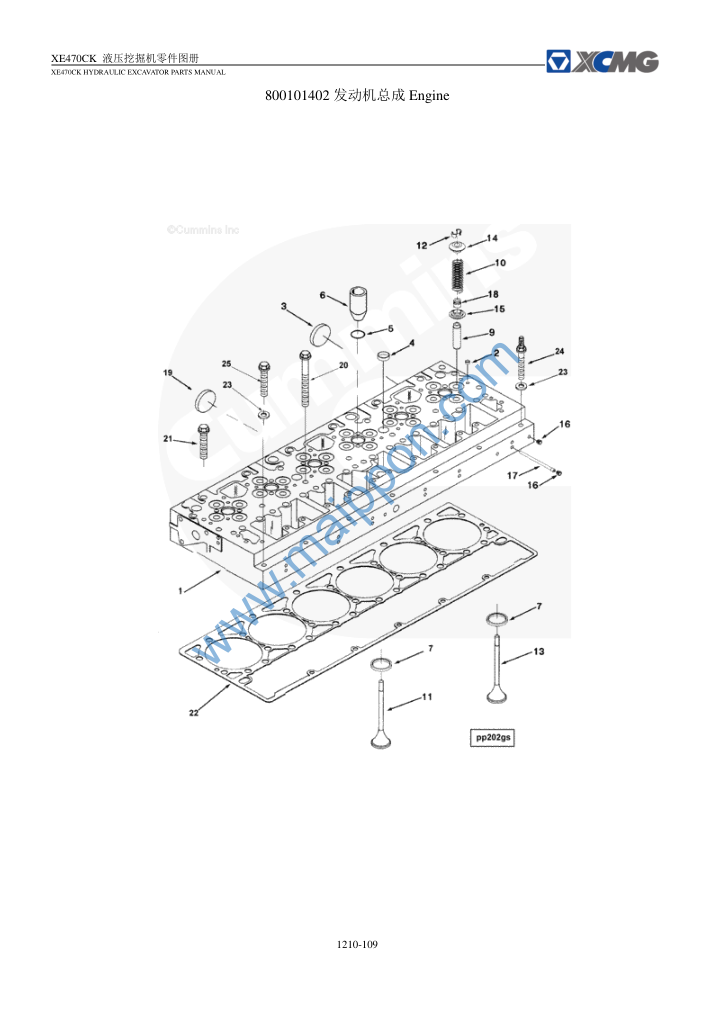

1210-109

Contact: maipponxcmg@yeah.net

800143170   缸盖 Cylinder Head

800143882   膨胀塞 Plug

800143171   膨胀塞 Plug

800142782   膨胀塞 Plug

800143172   O 形密封圈 O-Ring

800143173   喷油器套筒 Injector Sleeve

800143174   气门镶块座Valve Insert

800143175   阀杆导块 Valve Stem Guide

800143176   气门弹簧 Spring

800143178   进气阀 IntakeValve

800143179   气门镶块座 Valve Collet

800143181   排气阀 Exhaust Valve

800143179   气门镶块座 ValveCollet

800143182   气门弹簧支座 Support

800143183   气门弹簧导块 Valve Spring Guide

800143919   G管u塞ide Plug

800143184   锐孔螺塞 Plug

800143185   阀杆密封垫 Seal Washer

800143186   膨胀塞 Plug

800143187   六角法兰头螺丝钉 Screw

800142686   六角法兰头螺丝钉 Screw

800143188   汽缸盖垫圈 Washer

800142675   密封垫圈 Washer

800143150   大头钉 Stud

800143189   六角法兰头螺丝钉 Screw

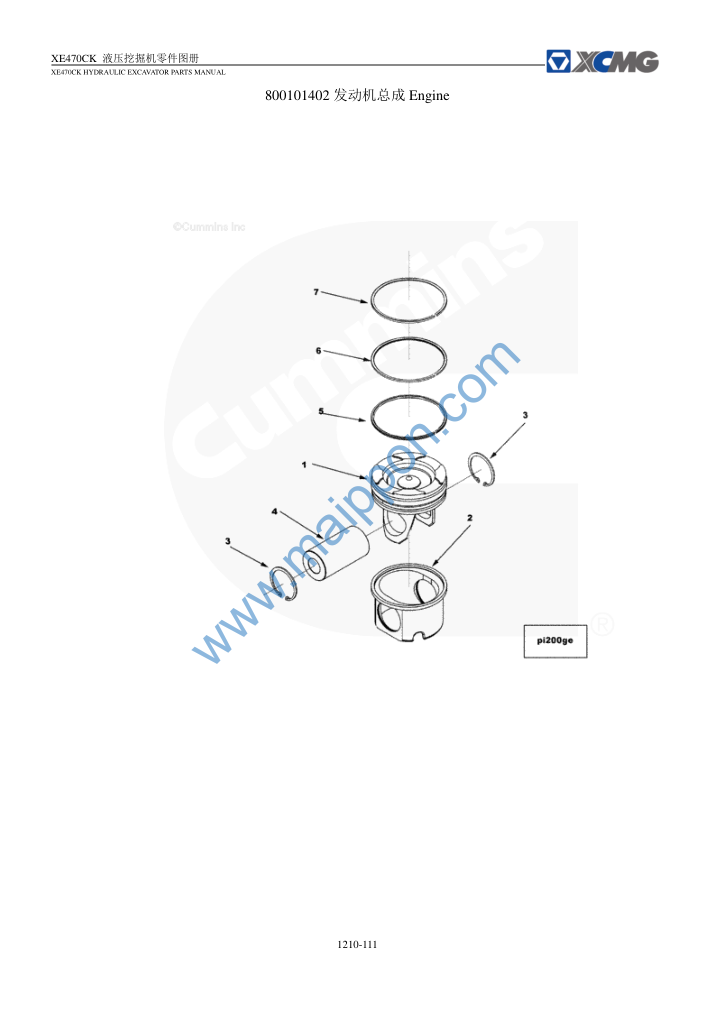

1210-111

Contact: maipponxcmg@yeah.net

800143197   TLA 发动机活塞 TLA Piston

800143200   活塞裙 Piston Skirt

800143201   挡圈 Back Up Ring

800143202   活塞销 Pin

800143204   活塞油封环 Ring

800143205   压缩行程活塞油封环 Ring

800143206   压缩行程活塞油封环 Ring

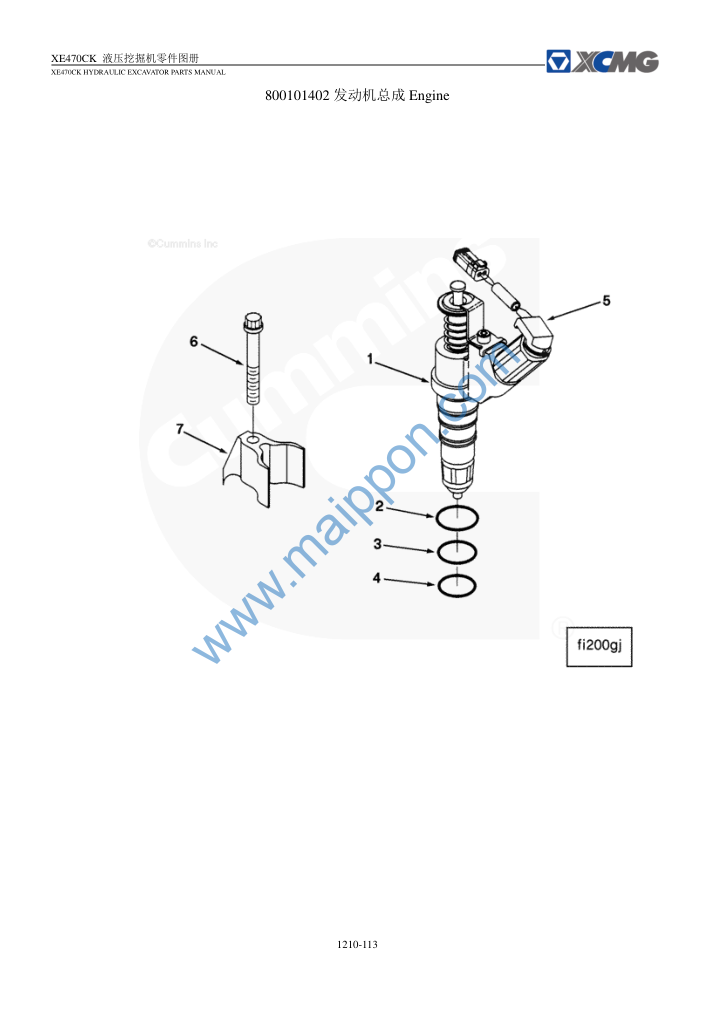

1210-113

Contact: maipponxcmg@yeah.net

800143209   喷油器 Injector

800142669   O 形密封圈 Washer

800142670   O 形密封圈 Washer

800142671   O 形密封圈 O-Ring‘

800143210   线束套工具 Wiring Harness Kit

800143211   K12it 角头螺栓 Bolt

800143212   喷油器夹 Injector Clamp

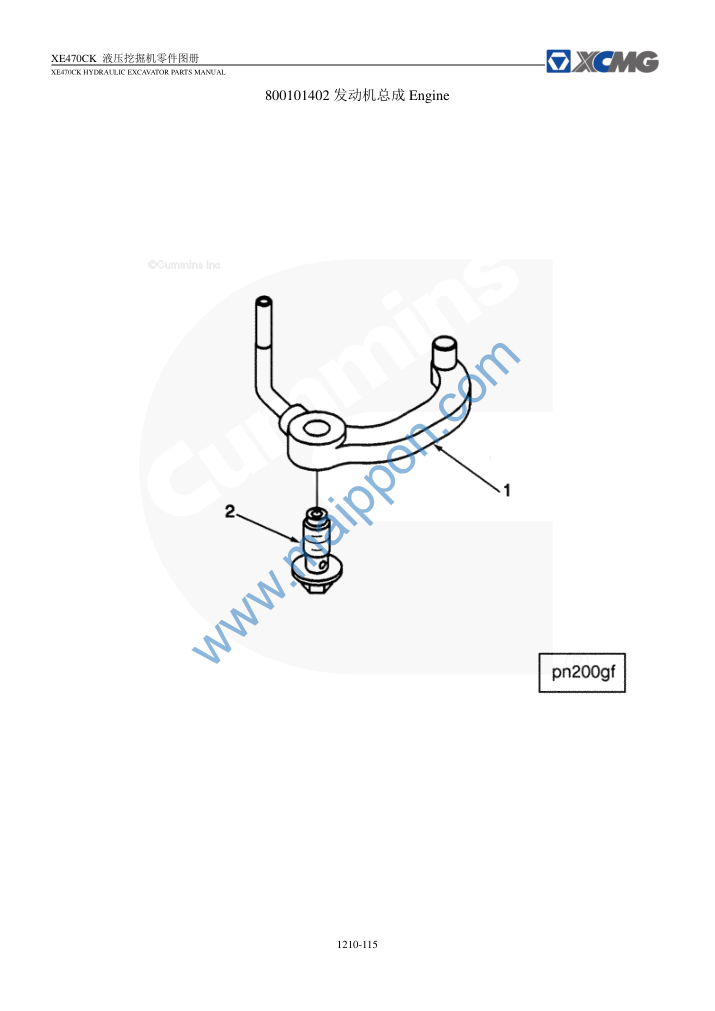

1210-115

Contact: maipponxcmg@yeah.net

800143214   六角法兰头螺丝钉 Screw

800143215   活塞冷却喷嘴 Piston Cooling Nozzle

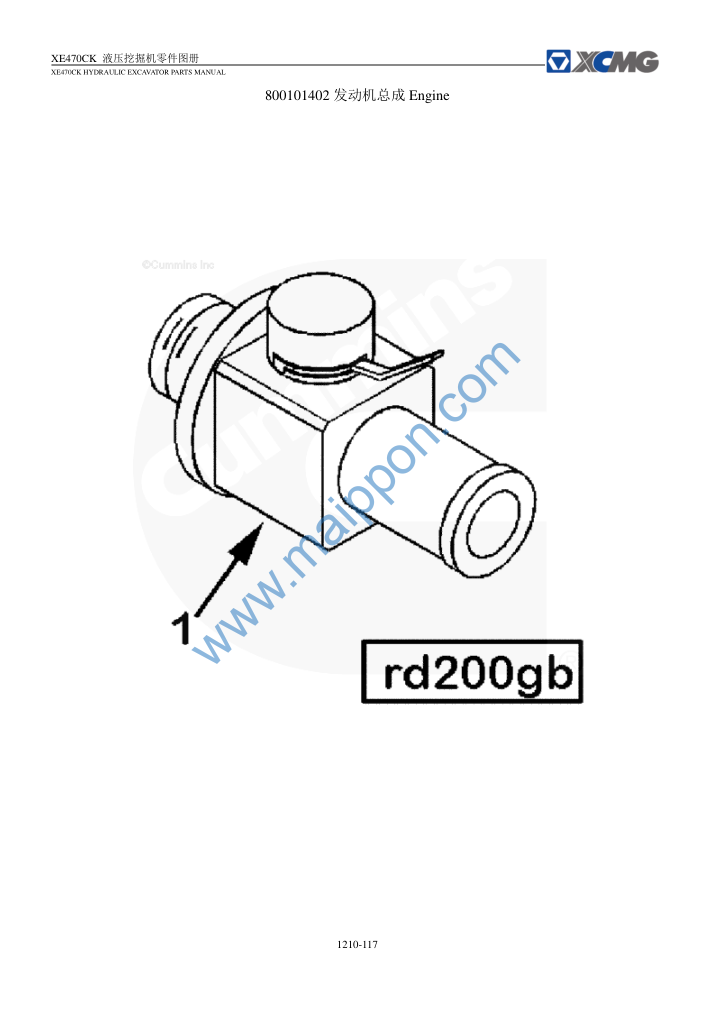

1210-117

Contact: maipponxcmg@yeah.net

800143217   放油龙头 Draincock

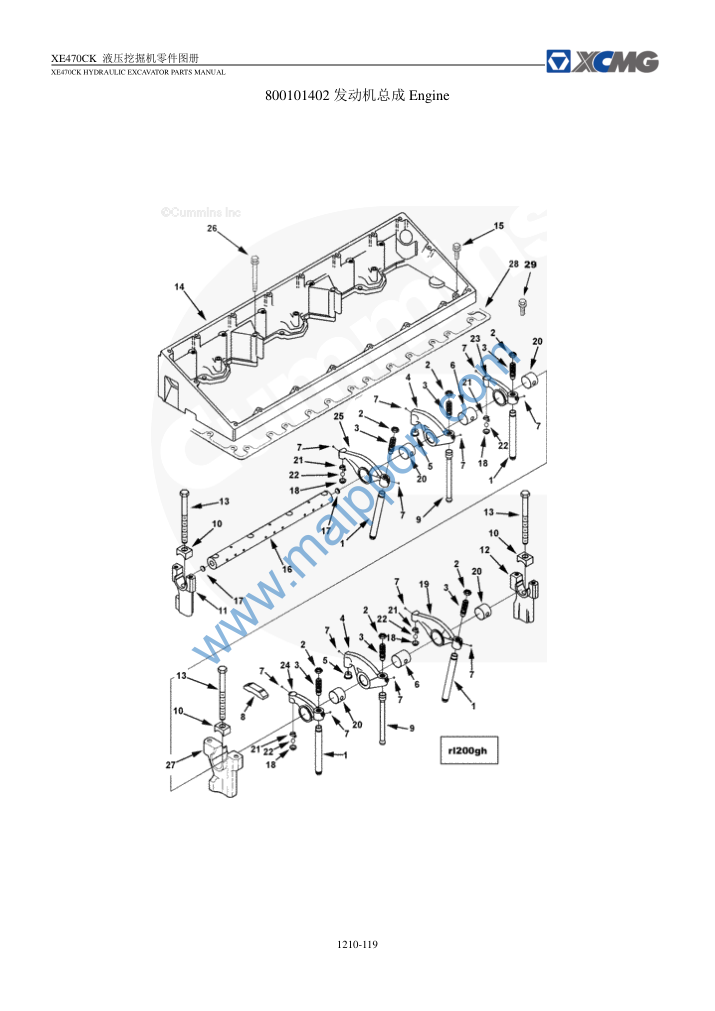

1210-119

Contact: maipponxcmg@yeah.net

800143219   推杆 PushRod

800143221   普通六角锁紧螺母 Nut

800143222   开缝螺钉 Screw

800143223   摇杆 Rocker

800143224   挺杆插座 Socket

800143225   轴衬 Collar Shaft

800143777   球形螺塞 Plug

800142914   气门十字头 Valve Crosshead

800143226   推杆 Push Rod

800143227   保持架 Retainer

800143228   摇杆支撑 Support

800143229   摇杆支撑 Support

800143230   六角头螺栓 Bolt

800143231   摇杆壳 Housing

800142894   带垫圈冒螺钉 Screw

800143232   摇杆轴 Shaft

800143233   膨胀塞 Plug

800143235   摇杆插座 Socket

800143236   摇杆 Rocker

800143221   普通六角锁紧螺母 Nut

800143222   开缝螺钉 Screw

800143235   摇杆插座 Socket

800143238   摇杆 Rocker 2 2 4 4 800143240 摇 杆 Rocker 1 25

800143242   摇杆 Rocker 26

800142935   带垫圈冒螺钉 Screw 27

800143243   摇杆支座 Support 28

800142687   Rkr 杠杆箱垫 Gasket 29

800143244   带垫圈冒螺钉 Screw

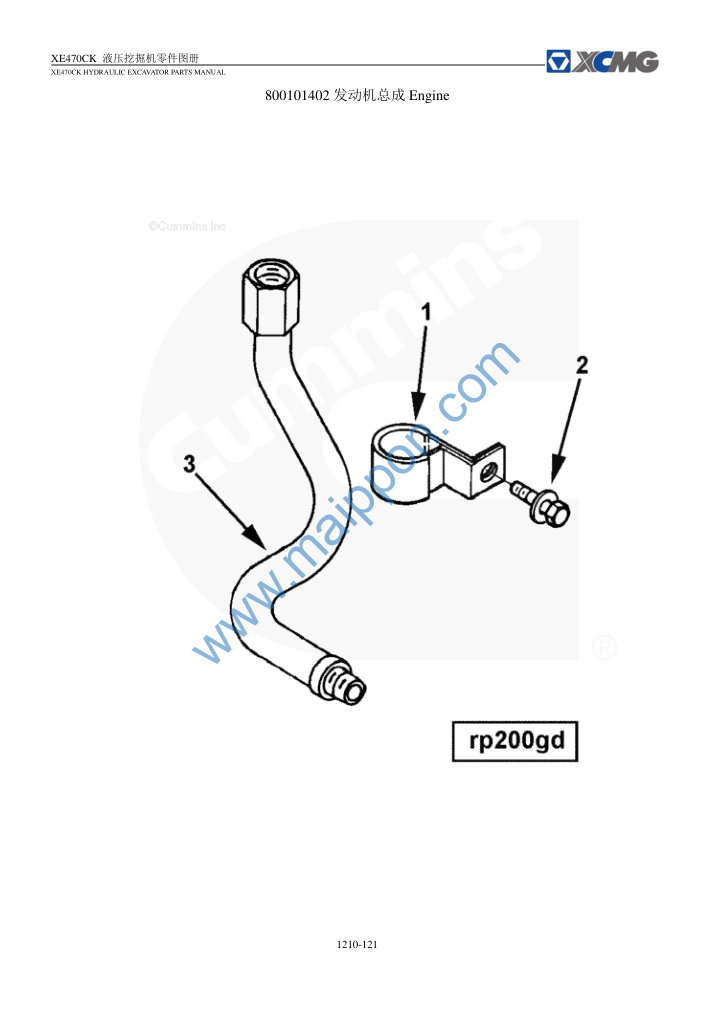

1210-121

Contact: maipponxcmg@yeah.net

800143246   管夹 Clamp

800142920   带垫圈冒螺钉 Screw

800143247   柔性软管 Flexible Hose

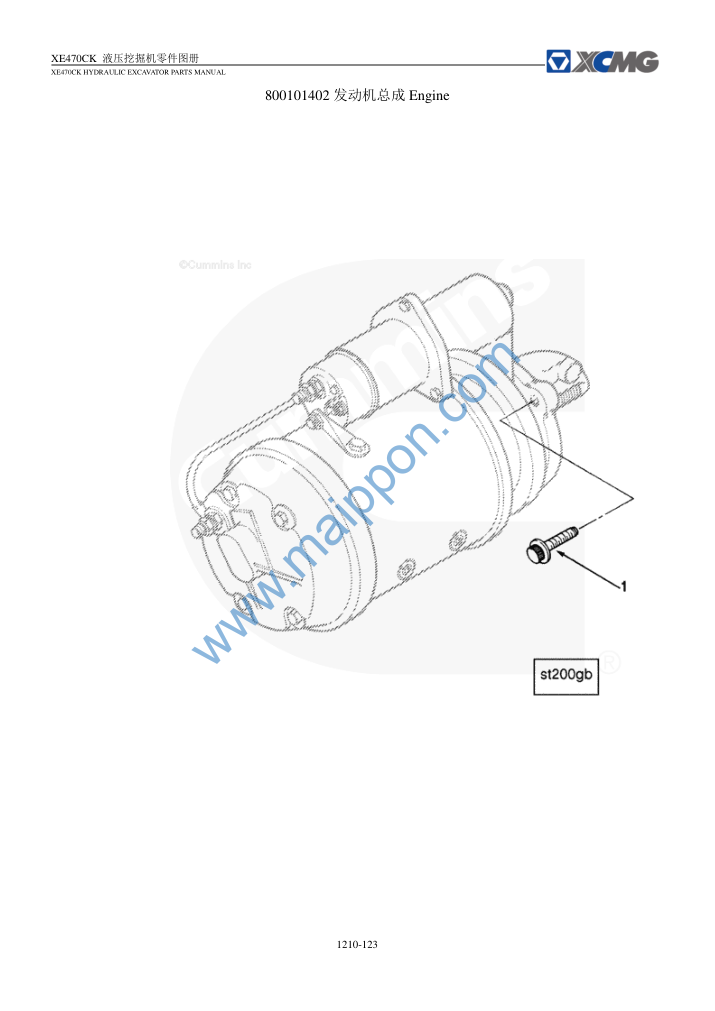

1210-123

Contact: maipponxcmg@yeah.net

800143250   12 角头螺栓 Bolt

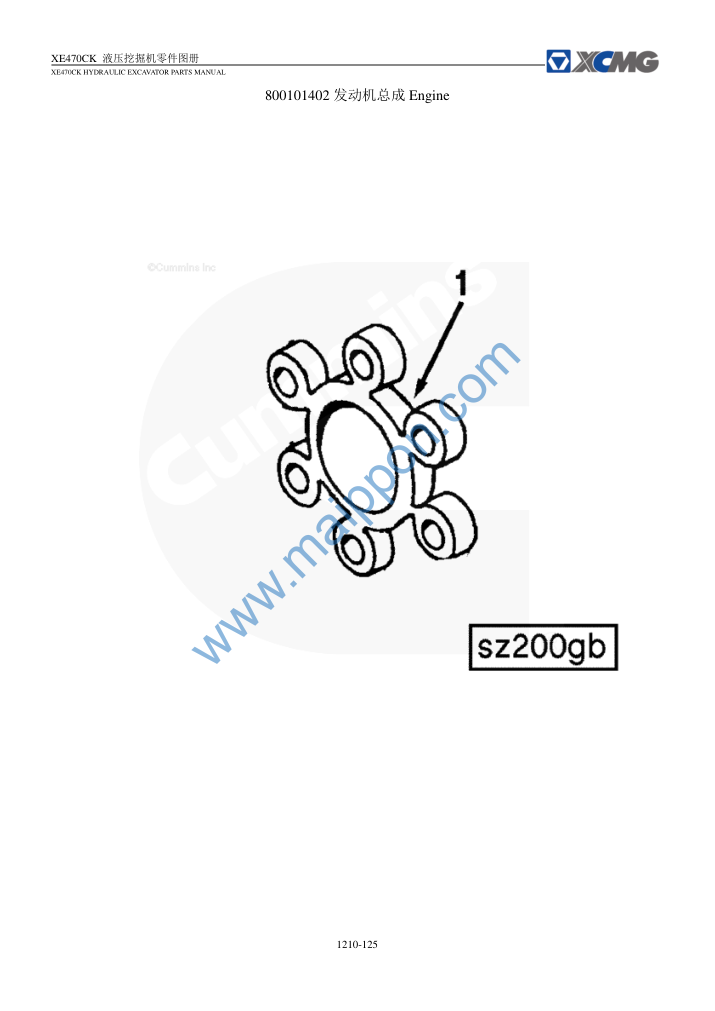

1210-125

Contact: maipponxcmg@yeah.net

800143252   扇形垫片 Fan Spacer

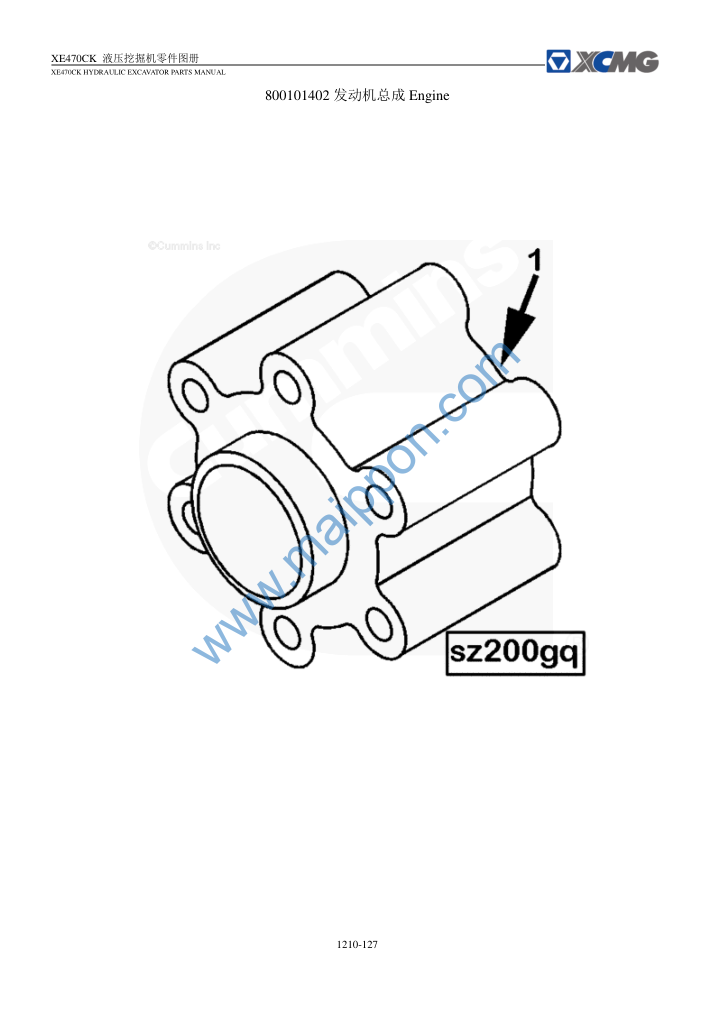

1210-127

Contact: maipponxcmg@yeah.net

800143254   扇形垫片 FanSpacer

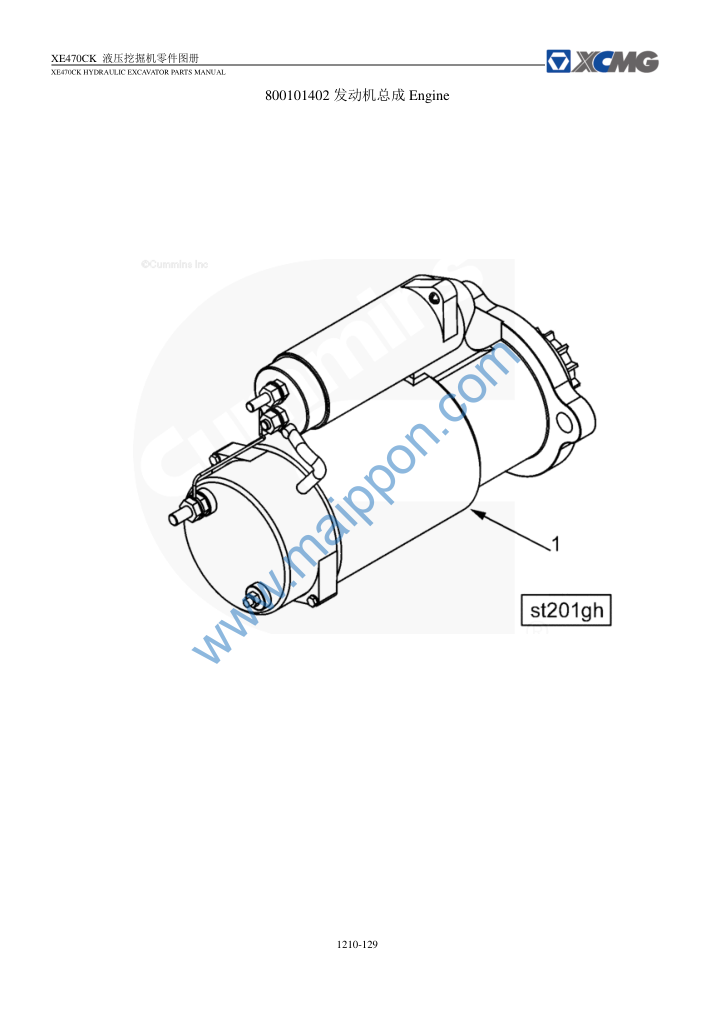

1210-129

Contact: maipponxcmg@yeah.net

800143258   起动马达 Starter Motor

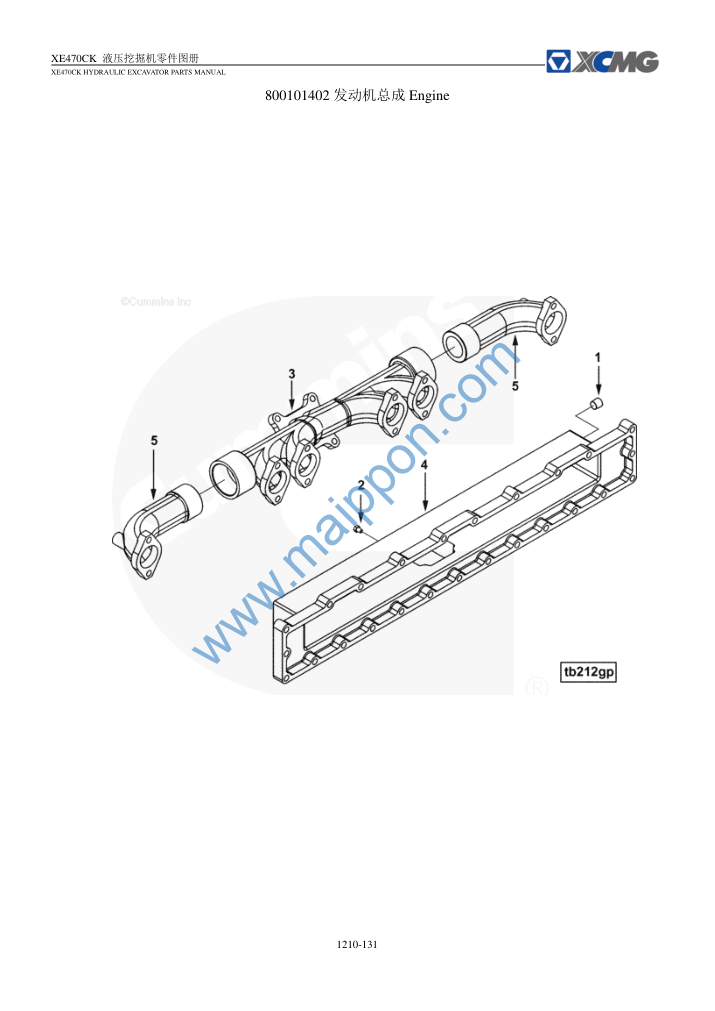

1210-131

Contact: maipponxcmg@yeah.net

800143884   管塞 Plug

800143260   管塞 Plug

800143261   排气歧管 Exhaust Manifold

800143262   进气歧管 Exhaust Manifold

800143263   排气歧管 Exhaust Manifold

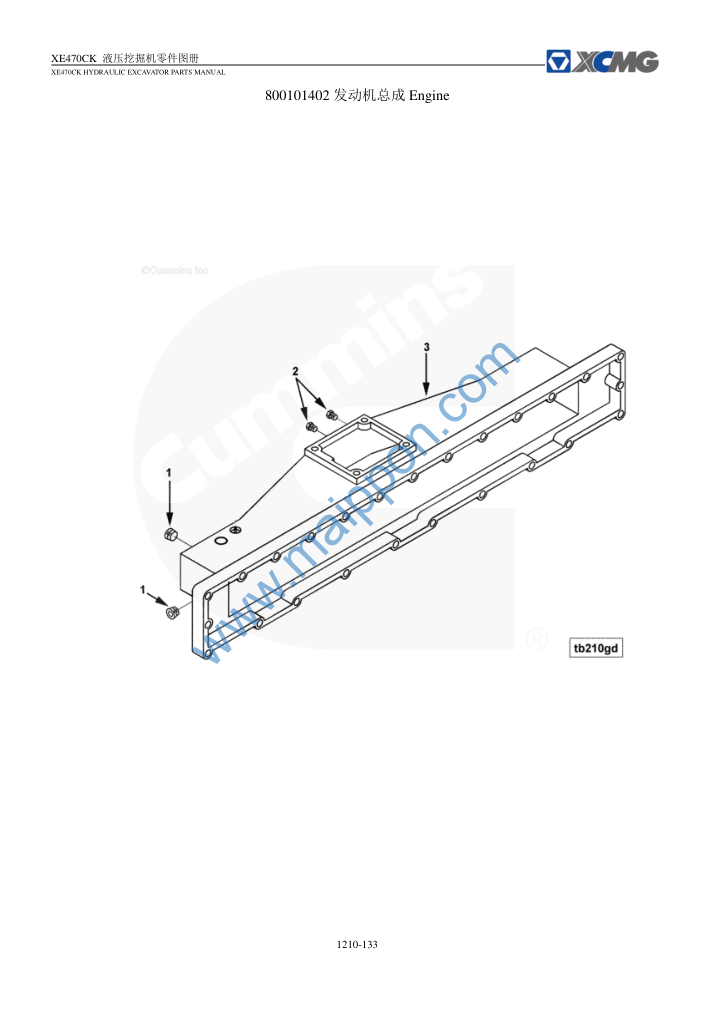

1210-133

Contact: maipponxcmg@yeah.net

800143884   管塞 Plug

800143260   管塞 Plug

800143262   进气歧管 Exhaust Manifold

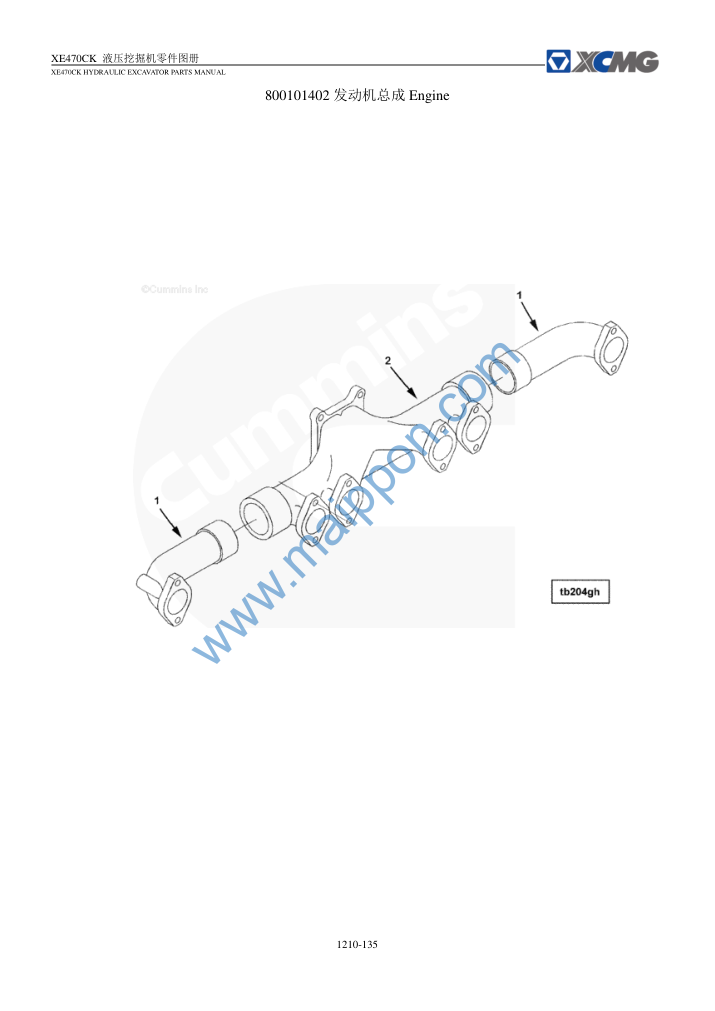

1210-135
