Contact: maipponxcmg@yeah.net

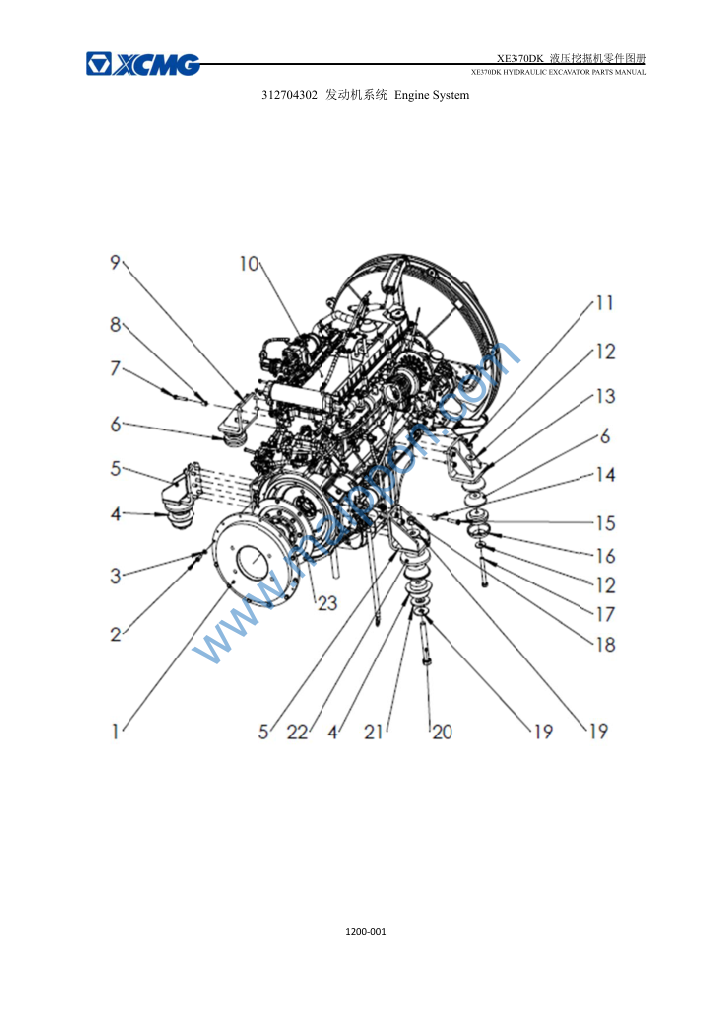

1 312703191 连接盘 Plate 1
2 805046416 Bolt 8
3 805338279 垫圈 10 Washer 8
4 801905553 后减震器 Vibration 4
5 312703185 后支架 Bracket 2
6 801905571 前减震器 Vibration 4
7 329900991 螺栓 Bolt 8
8 312703800 垫圈隔套 10 Washer 8
9 312703182 左前支架 Bracket 1
10 800155760 发动机 Engine 1
11 805238406 螺母 M16 Nut 2
12 805338274 垫圈 16 Washer 4
13 312703189 右前支架 Bracket 1
14 310708645 垫圈隔套12 Washer 12
15 329900993 螺栓 Bolt 12
16 800154458 护罩 Board 4
17 805046465 Bolt 2
18 805238397 螺母 M24 Nut 2
19 805338318 垫圈 24 Washer 4
20 805046689 Bolt 2
21 312703192 垫块 Block 2
22 312704225 防护罩 Board 2
23 800157111 联轴器 Coupling 1

Contact: maipponxcmg@yeah.net

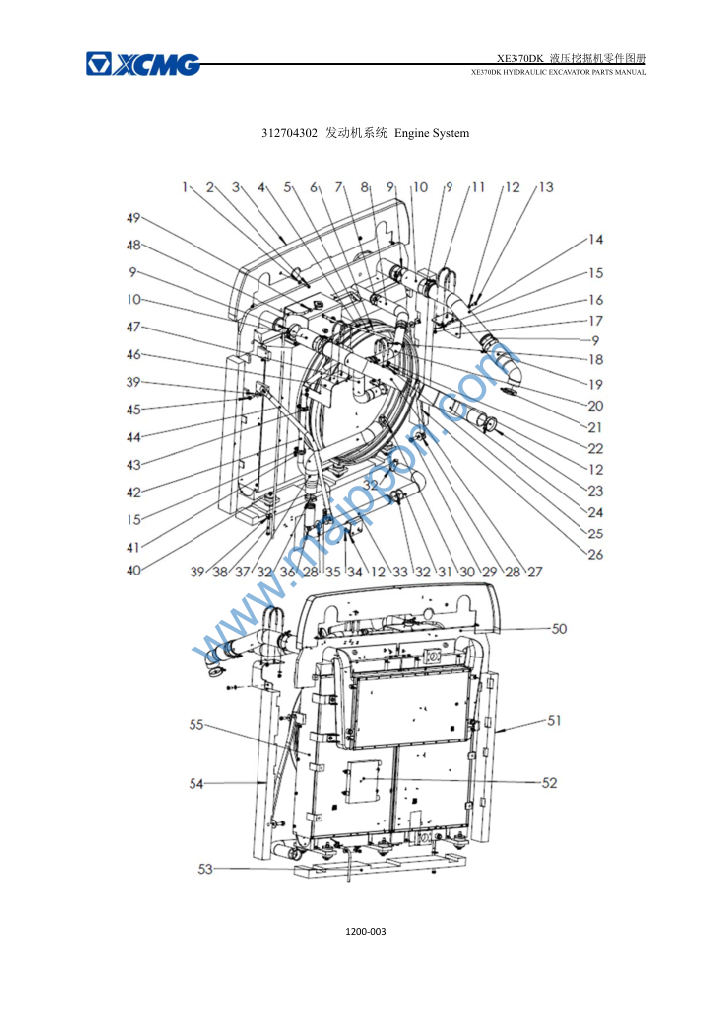

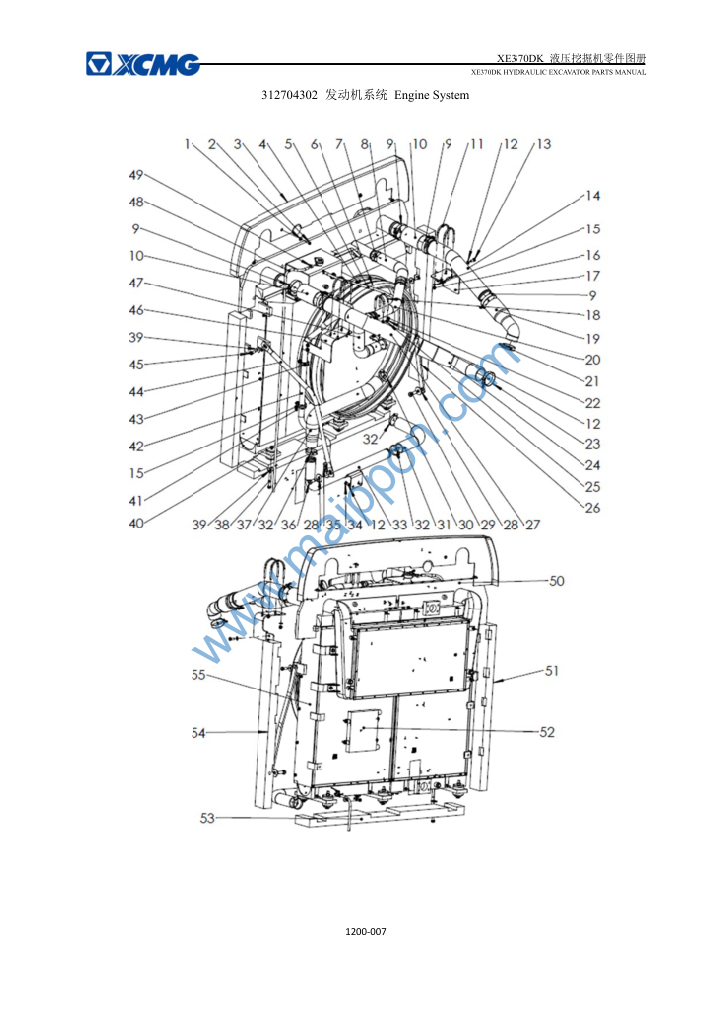

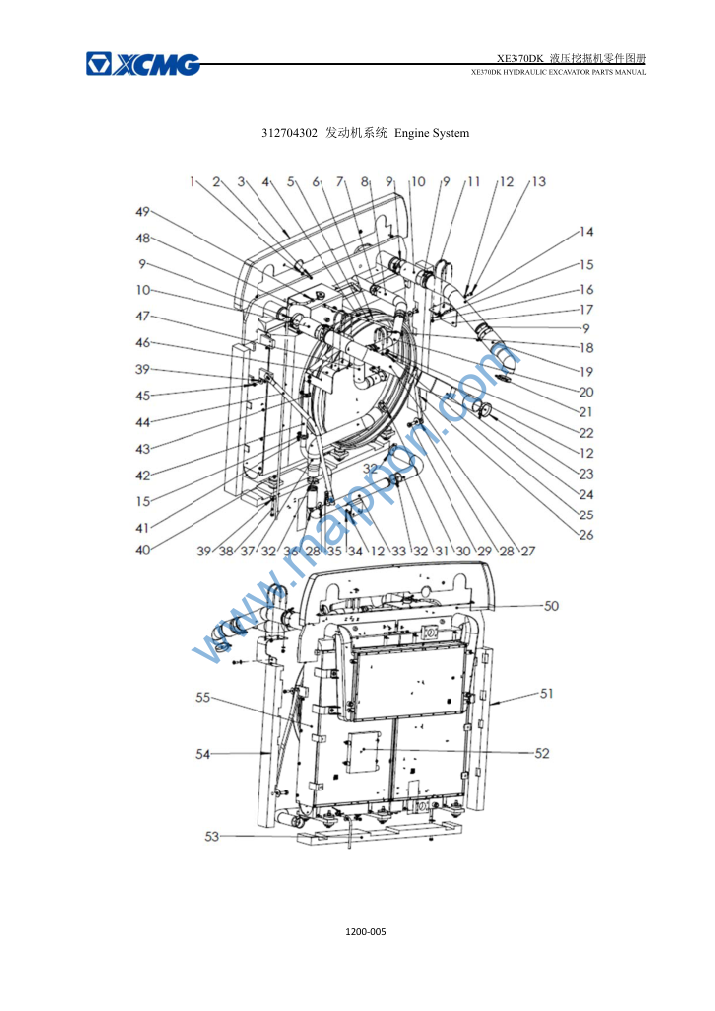

1 805338266 垫圈 8 Washer 2
2 805046509 螺栓 M8×25 Bolt 8
3 312703200 挡风板 Board 1
4 800157214 喉箍 Clamp 1
5 800154584 输水管 Hose 1
6 312703210 胶圈 Rubber Gasket 1
7 800104560 喉箍 Clamp 4
8 800155793 上水管 Hose 1
9 800104440 卡箍 Clamp 6
10 800141470 硅胶管A Hose 2
11 329900510 U形管夹 Clamp 4
12 805338279 垫圈 10 Washer 12
13 805011330 螺栓M10×25 Bolt 6
14 312703204 钢管 Tube 1
15 805338277 垫圈8 Washer 16
16 805238378 螺母 M8 Nut 16
17 312703205 支架 Bracket 1
18 329900516 U形管夹 Clamp 2
19 800155798 气管 Tube 1
20 312703199 钢管 Tube 1
21 800104561 卡箍 Clamp 1
22 312703178 支架 Bracket 1
23 801905434 卡箍 Clamp 1
24 800155797 气管 Tube 1
25 805238371 螺母 M10 Nut 4
26 312703206 拉杆 Staff 1

Contact: maipponxcmg@yeah.net

27 312703198 钢管 Tube 1
28 805338274 垫圈 16 Washer 2
29 805006280 Bolt 1
30 801905435 喉箍 Clamp 1
31 800155791 下水管 Hose 1
32 801905575 喉箍 Clamp 3
33 312703194 下水钢管 Tube 1
34 805046525 Bolt 2
35 800141720 喉箍 Clamp 2
36 805006417 Bolt 1
37 800155792 下水管 Hose 1
38 805046650 Bolt 6
39 805338270 垫圈 12 Washer 8
40 805238396 螺母 M12 Nut 6
41 805046508 螺栓 M8×20 Bolt 2
42 822138074 Hose 1
43 801905468 胶套卡箍 Clamp 2
44 312703208 拉杆 Staff 1

Contact: maipponxcmg@yeah.net

45 805006412 Bolt 2
46 312703203 支架 Bracket 1
47 800155794 上水管 Hose 1
48 314000312 Hose 1
49 819909238 喉箍 Clamp 3
50 312703197 挡风海绵 Sponge 1
51 312703207 左侧海绵 Sponge 1
52 800141483 燃油冷却器总 Fuel Cooler 1
53 312703202 底部海绵 Sponge 1
54 312703201 右侧海绵 Sponge 1
55 800154627 散热器总成 Radiator 1

Contact: maipponxcmg@yeah.net

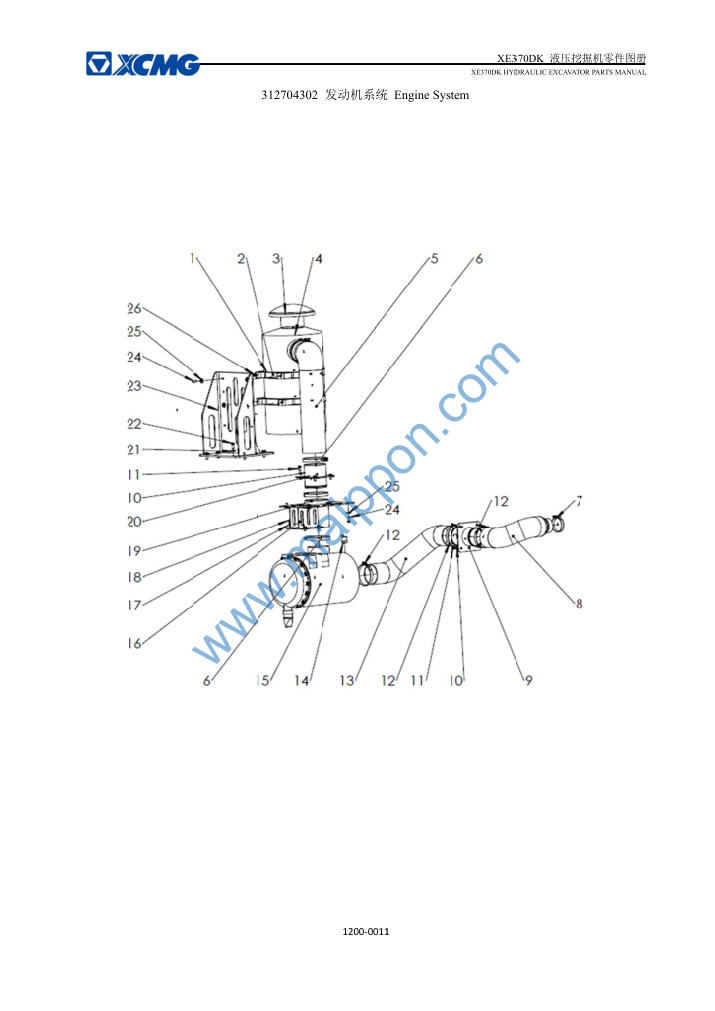

1 312704338 护套 Board 2
2 800141460 抱箍 Clamp 2
3 800141459 防雨帽 Rain Shield 1
4 800141458 油浴式预滤器 Pre-filter 1
5 800158178 气管 Tube 1
6 801905555 卡箍 Clamp 4
7 800104440 卡箍 Clamp 1
8 800155796 进气胶管 Hose 1
9 312703215 连接管 Tube 1
10 805302778 垫圈 10 Washer 8
11 805049391 螺栓M10×25 Bolt 8
12 800141036 卡箍 Clamp 3
13 800155795 进气胶管 Hose 1
14 800152497 电子压差报警 Pressure 1
15 800155633 空滤器 Air Filter 1
16 312704248 空滤支架 Bracket 1
17 329900302 加厚平垫圈 Washer 4
18 805046525 螺栓M10×20 Bolt 4
19 329901044 气管 Tube 1
20 312703219 连接管 Tube 1
21 329900298 加厚大垫圈 Washer 6
22 805006413 螺栓M12×35 Bolt 6
23 312704298 油浴支架 Bracket 1
24 805011330 螺栓M10×25 Bolt 8

Contact: maipponxcmg@yeah.net

Contact: maipponxcmg@yeah.net

Contact: maipponxcmg@yeah.net

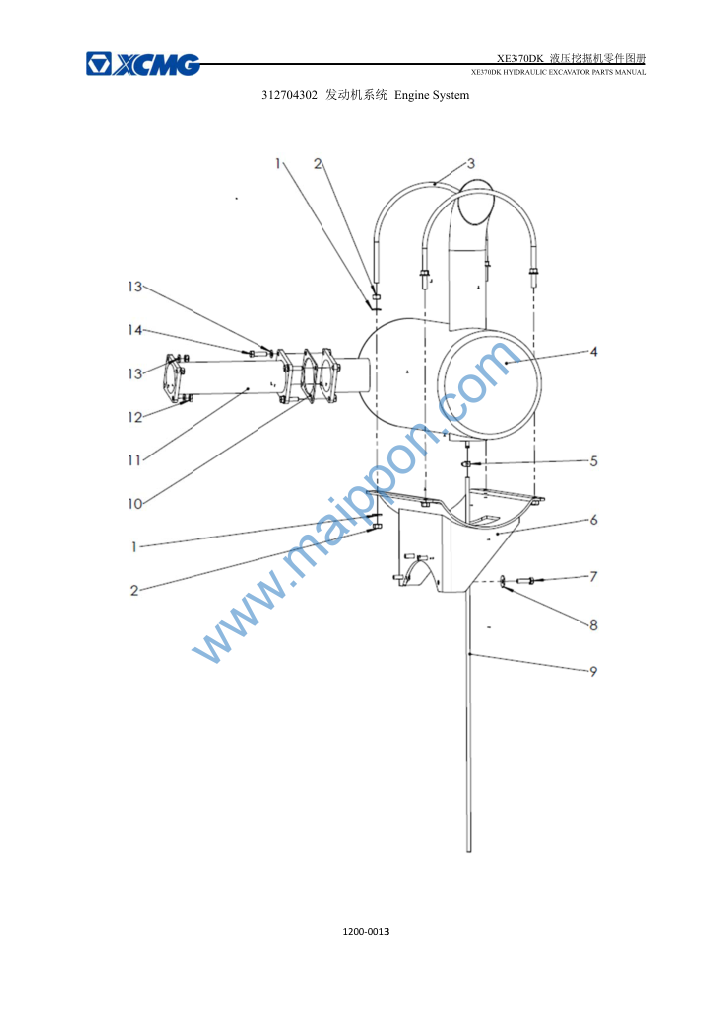

1 805338281 垫圈 12 Washer 8
2 805238372 螺母 M12 Nut 8
3 312702118 U型螺栓 Bolt 2
4 800155790 消音器 Silencer 1
5 801905666 喉箍 Clamp 1
6 312703223 消音器支架 Bracket 1
7 805046528 Bolt 4
8 805338268 垫圈 10 Washer 4
9 800104241 SFG-2- Tube 1
10 312703227 排气垫圈 Washer 1
11 800105085 排气软管总成 Tube 1
12 805239313 Nut 4
13 805339010 垫圈 10 Washer 8
14 805049577 Bolt 4

Contact: maipponxcmg@yeah.net

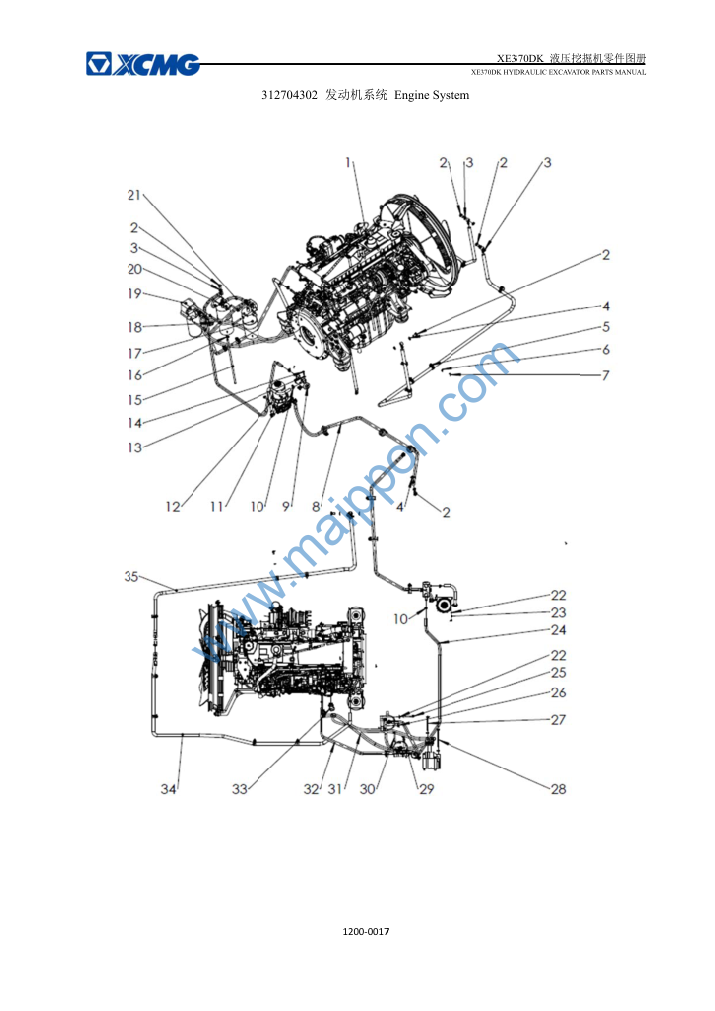

1 312703177 发动机安装 Engine 1
2 800104570 M16×1.5× Bolt 10
3 329901015 组合垫圈 Washer 16
4 805300026 垫圈 16 Washer 4
5 819908628 胶套卡箍 Clamp 11
6 805338277 垫圈8 Washer 15
7 805046504 螺栓 M8×16 Bolt 15
8 800159015 柴油管 Fuel Hose 1
9 800105083 燃油泵总成 Fuel Pump 1
10 819909238 喉箍 Clamp 4
11 800154215 油水分离器 Oil-water 1
12 800155939 柴油管 Fuel Hose 1
13 805338264 垫圈 6 Washer 2
14 805046498 螺栓 M6×30 Bolt 2
15 801905656 Hose 1
16 801905666 喉箍 Clamp 1
17 800155801 燃油精滤 Fuel Filter 1
18 801968465 胶套卡箍 Clamp 4
19 800155800 机油滤清器 Oil Filter 1
20 800155803 油水分离器 Oil-water 1
21 800158631 柴油管 Fuel Hose 1

Contact: maipponxcmg@yeah.net

22 805338279 垫圈 10 Washer 12
23 805046528 螺栓 M10× Bolt 2
24 800105097 燃油回油管总 Fuel Hose 1
25 805139983 螺钉 M10× Bolt 1
26 805139929 螺钉M10×40 Bolt 2
27 805046628 螺栓 Bolt 2
28 312702168 螺栓 Bolt 2
29 805139765 螺钉M10×35 Bolt 2
30 805139867 螺钉M10×70 Bolt 1
31 803171967 软管总成 Hose 1
32 800155368 柴油管 Fuel Hose 1
33 803110273 接头 Adapter 4
34 312600135 柴油管总 Fuel Hose 1
35 800105093 燃油回油管总 Fuel Hose 1
