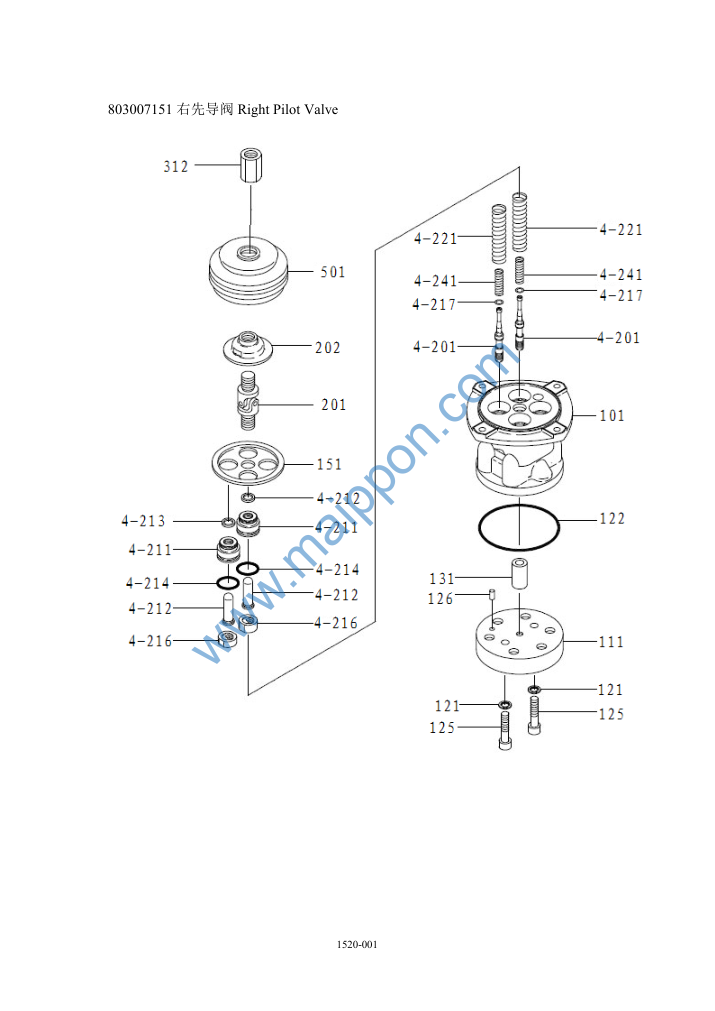

XE240LC 液压挖掘机 – 右先导阀 Right Pilot Valve 803007151
Contact: maipponxcmg@yeah.net
860120199 衬套 CASING 1 D
860120200 盘 PLATE 1
860120201 密封垫圈 SEAL WASHER 2
860120202 O形圈 O-RING 1
860120203 螺栓 BOLT 2
860120204 弹簧销 SPRING PIN 1
860120205 衬套 BUSH 1
860120206 盘 PLATE 1
860120207 阀芯 SPOOL 4 D
860120208 堵头 PLUG 4 D
860120209 推杆 PUSH ROD 4
860120210 密封圈 SEAL 4
860120211 O形圈 O-RING 4 D
860120212 弹簧座 SPRING SEAT 4
860120213 垫圈 WASHER 4
860120214 弹簧 SPRING 4
860120215 弹簧 SPRING 4
860120216 连接件 JOINT 1
860120217 盘 PLATE 1
860120218 螺母 NUT 1
860120219 螺母 NUT 1
860120220 衬套 BUSH 1
860120221 连接器 CONNECTOR 2
860120222 隔离罩 SLEEVE,INSULATION 1
860120223 防尘罩 BELLOWS 1
803007151 手柄总成（右） HANDLE SUB ASSY 1
