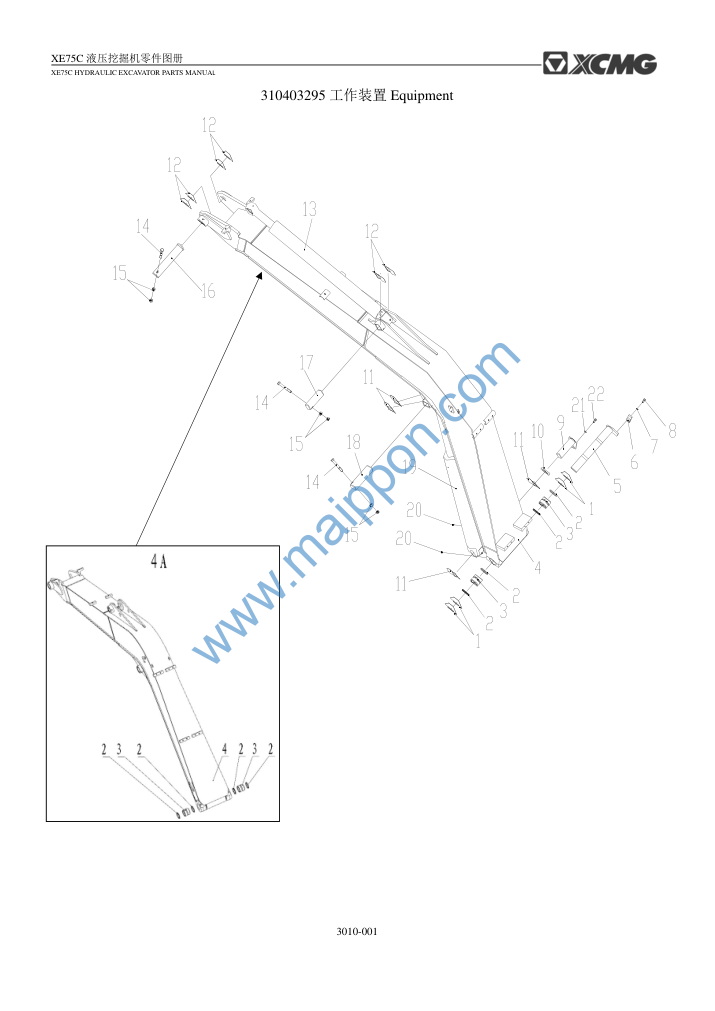

329900650 调整垫片 Washer 4 厚度1.0
329900700 调整垫片Washer 2 厚度1.5
803172344 防尘圈Dust Seal 2
310405765 衬套Bushing 2
310403362 固定块Block 1 R
805338281 垫圈 12 Washer 2
310402063 轴Pin 1
310403063 垫板Plate 1 R
329900649 调整垫片Washer 4 厚度1.0
329900699 调整垫片Washer 2 R 厚度1.5
329900647 调整垫片Washer 3 厚度1.0
329900697 调整垫片Washer 6 厚度1.5
803013105 斗杆油缸Arm Cylinder 1
805046670 螺栓M16×130 Bolt 3
805238373 螺母M16 Nut 6
310403062 轴Pin 1
310403033 轴Pin 1
310404160 轴Pin 1 R
803068577 动臂油缸Boom Cylinder 2
801102863 黄油嘴R1/8 Grease Cup 2 R
805338273 垫圈16 Washer 1
805046569 螺栓M16×25 Bolt 1

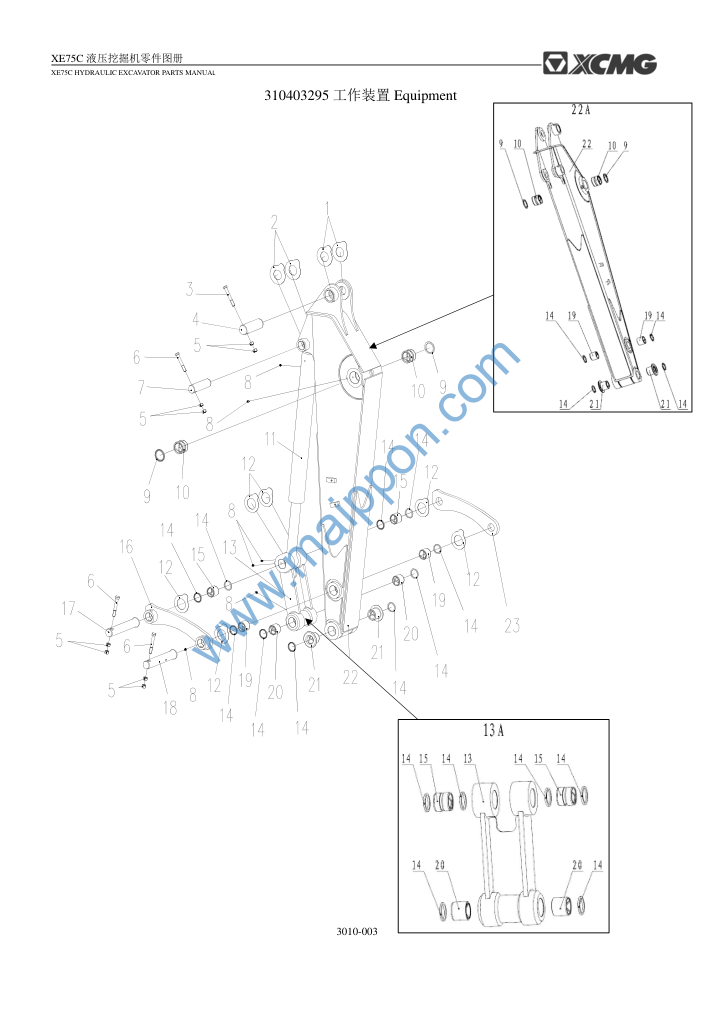

Contact: maipponxcmg@yeah.net

329900647 调整垫片Washer 1 厚度1.0
329900697 调整垫片Washer 2 厚度1.5
329900641 调整垫片Washer 2 厚度1.0
819910626 调整垫片 Washer 1 R 厚度1.5
805046670 螺栓M16×130 Bolt 1
310403033 轴Shaft 1 R
805046476 螺母M16 Nut 8
805046474 螺栓M16×120 Bolt 3
310403031 轴Shaft 1
801102863 黄油嘴R1/8 Grease Cup 6
803172344 防尘圈Dust Seal 2
310403032 衬套Bushing 2
803013104 铲斗油缸Bucket Cylinder 1
329900642 调整垫片 Washer 8 厚度1.0
329900692 调整垫片Washer 4 厚度1.5
310402072 连杆Connecting Rod 1
803194803 防尘圈Dust Seal 10
310403025 衬套 Bushing 2
310402138 左摇杆Rocker 1
310403024 轴Shaft 1
310403061 轴Shaft 1 R
310403030 衬套Bushing 2
310403022 衬套Bushing 2
310403028 T形套Bushing 2
310402137 斗杆Arm 1

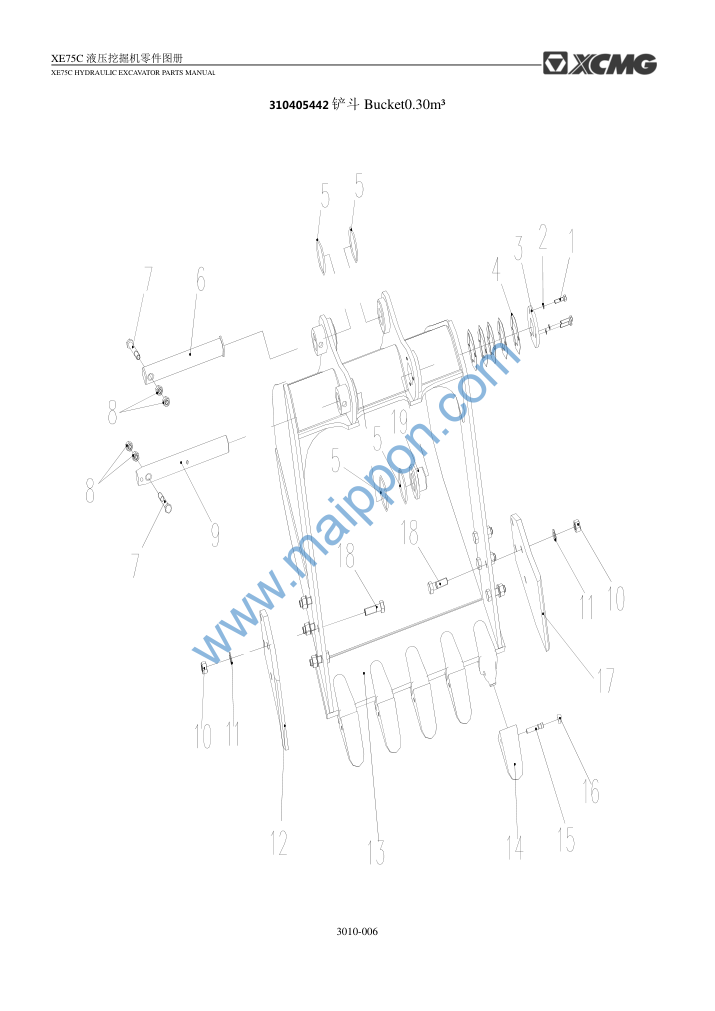

Contact: maipponxcmg@yeah.net

805046238 螺栓M10×40 Bolt 3
805300014 垫圈10 Washer 3
310403060 压板Plate 1
310403059 垫片Washer 10
329900895 O形圈O-ring 4
310403023 轴Shaft 1
805046474 螺栓M16×120 Bolt 2
805046476 螺母M16 Nut 4
310403026 轴Shaft 1
8052383758 螺母M20 Nut 8
819908837 垫圈20 Washer 8
3104037958 右侧齿Right Side Cutter 1
819908968 齿套Tooth 5
819908834 销Pin 5
805006420 卡簧Clip 5
310403027 左侧齿Left Side Cutter 1
805046238 螺栓M20×65 Bolt 8
805300014 T形套Bushing 1
