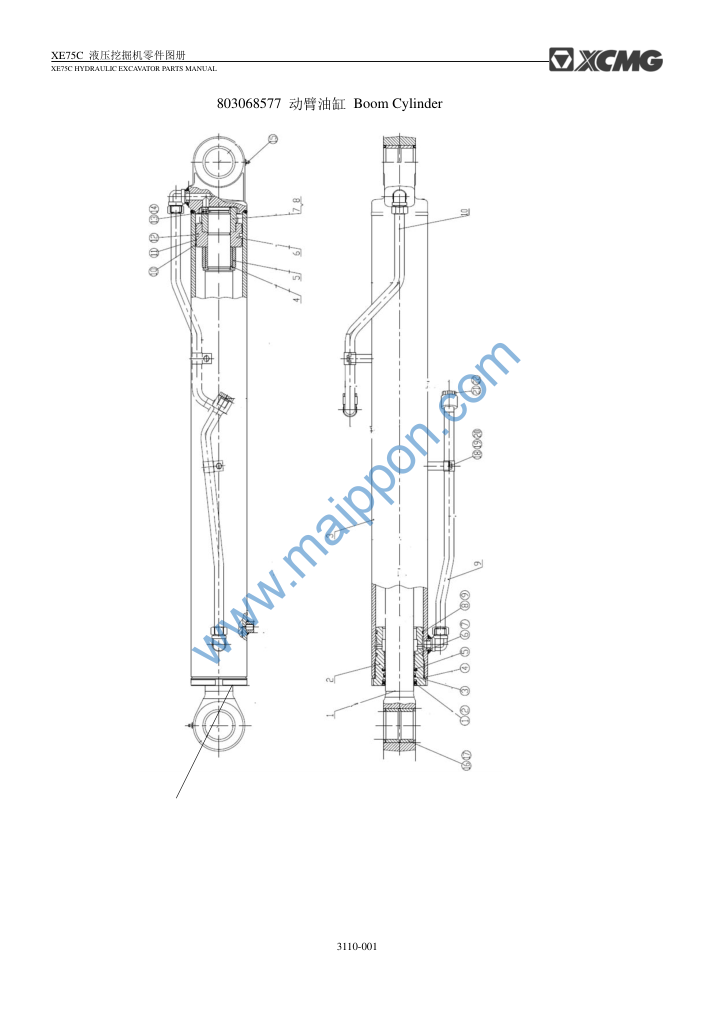

860200586 活塞杆 Piston Rod 1
860200587 导向套 D110/d65 1
860200588 缸体 Cylinder 1
860200589 定位套 d65 Local Sleeve 1
860200590 缓冲套 D110/d65 1
860200591 活塞 Piston 1
860200592 垫片 Washer 1
860200593 螺母 M52×3 Nut 1
860200594 油管组件A Hose 1
860200595 油管组件B Hose 1

Contact: maipponxcmg@yeah.net

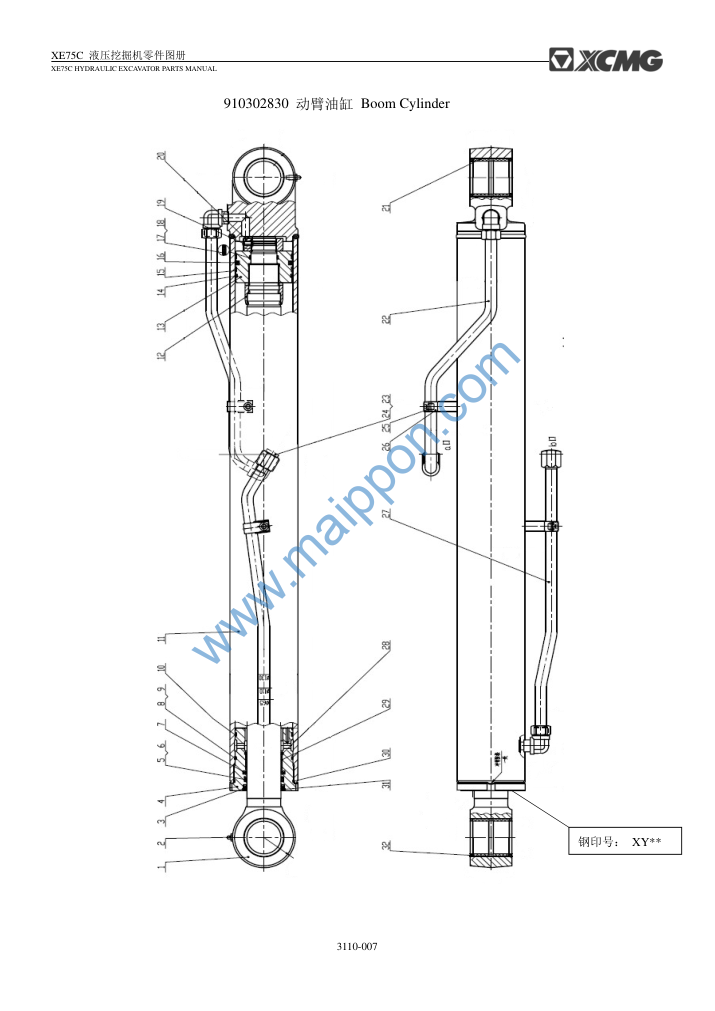

803008895 活塞杆 Piston Rod 1
801100336 油杯 Oiler Cup 2
803195102 防尘圈 Dust Seal 1
910302245 导向套 Guide Sleeve 1
803195103 挡圈 Back-up Ring 1
803195104 轴密封 Shaft Dust Seal 1
803195105 缓冲环 Cushion Ring 1
803195137 挡圈 Back-up Ring 1
803199983 O形圈 O-Ring 1
803195132 哑铃形密封 Dust Seal 1
910302835 缸筒 Cylinder 1
910302841 缓冲套 Cushion 1
910302247 活塞 Piston 1
803195133 防污环 Dust Seal 1
803195134 支承环 Support Ring 2
803195135 孔密封 Hole Dust Seal 1
803195113 O形圈 O-Ring 1
803195112 挡圈 Back-up Ring 2
805104504 螺钉M8×18 Screw 1
910302033 螺母 Nut 1
910302842 衬套 Bush 4
910302843 油管组件1 Hose 1 1
803176292 螺塞 G1/2A Nut 2
803195206 O形圈 O-Ring 2
805100151 螺钉M10×16 Screw 2
910302006 管箍组件 Clamp 2
910302845 油管组件2 Hose 2 1
805403099 挡圈 70 Back-up Ring 1
910301125 滑动轴承 Sliding 1
803195131 O形圈 O-Ring 1
910302035 挡圈 Back-up Ring 1
803195301 防尘圈 Dust Seal 4
