XE75C 液压挖掘机 – 上车液压系统 Upper Hydraulic System 310405046
Contact: maipponxcmg@yeah.net

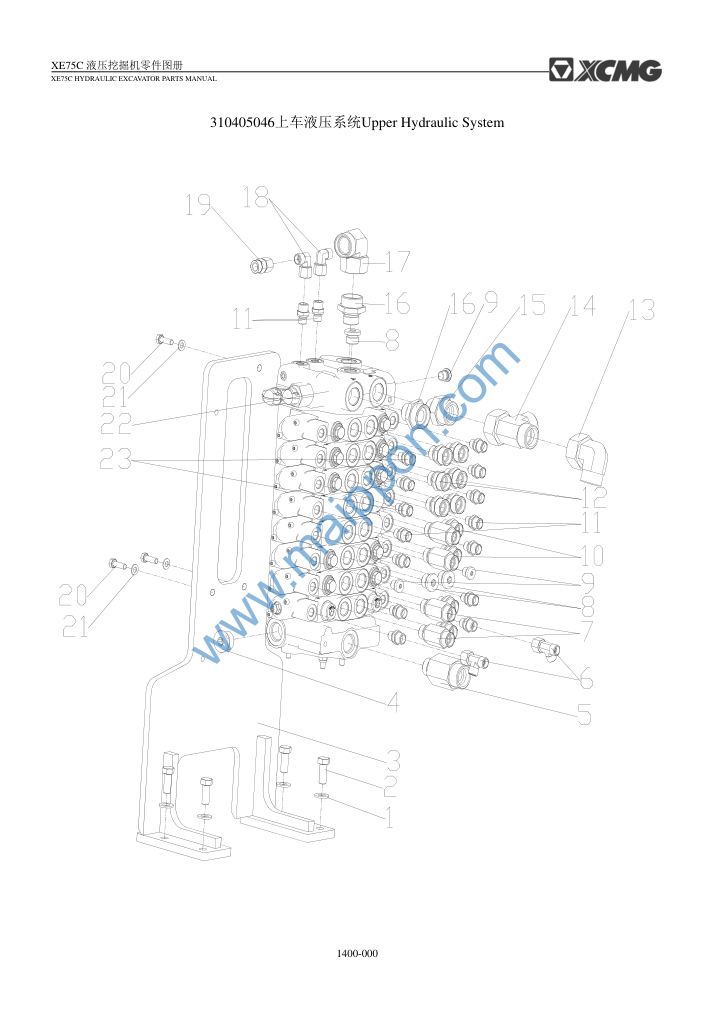

805338281 垫圈 12 Washer 4
310405064 主阀安装板Fix Plate 1
803192125 堵头Plug 1
803172564 接头Joint 1
803172316 接头Joint 2
803172609 接头Joint 4
803166553 堵头Plug 3
803173593 堵头Plug 3
803195587 接头Joint 4
803103326 接头Joint 12
803105405 接头Joint 6
803105384 接头Joint 1
803107237 接头Joint 1
803104523 接头Joint 1
803172459 接头Joint 2
803103798 接头Joint 1
803163572 接头Joint 2
803300050 接头Joint 1
805046509 螺栓M8×25 Bolt 3
805338277 垫圈 8 Washer 3
803403588 主阀MultiwayValve 1
803393122 接头Joint 4
Contact: maipponxcmg@yeah.net
803303447 O形圈32.92×3.53-S A90 1
310405068 接头块 Join Block 1
329900300 垫圈 16 Washer 2
803191059 接头Joint 1
803173593 堵头 Plug 1
805139865 螺钉 M10×60 Screw 4
803103326 接头Joint 1
803110497 接头Joint 1
Contact: maipponxcmg@yeah.net

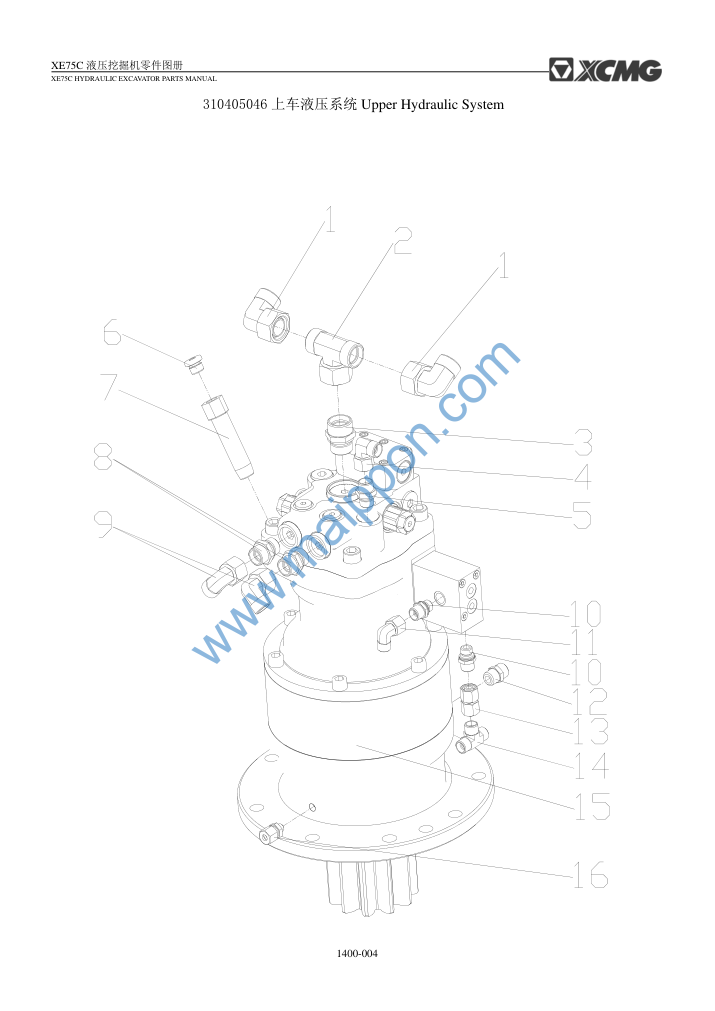

803173684 接头Joint 2
803163723 接头Joint 1
803165614 接头Joint 1
803172790 接头Joint 1
803172173 接头Joint 2
803103775 接头Joint 2
803172161 接头Joint 2
803163572 接头Joint 1
803172308 接头Joint 1
803600136 接头Joint 1
803003979 梭阀 Shttle Valve 1
803071776 回转马达Swing Motor 1
803172185 接头Joint 1
Contact: maipponxcmg@yeah.net
329900450 卡箍 Clamp 2
329900454 压板 Pressing Plate 1
805046719 螺栓 M10×80 Bolt 2
801906672 卡箍 Clamp 2
310405063 胶管Hose 1
803105404 接头Joint 2
803176902 单向阀 Check Valve 1
803403589 接头Joint 1
805139979 螺钉 M8×55 Screw 4
805338259 垫圈8 Washer 4
803103799 接头Joint 1
310405058 接头块 Join Block 1
803193839 O形圈 38.7×3.55 A90
Contact: maipponxcmg@yeah.net

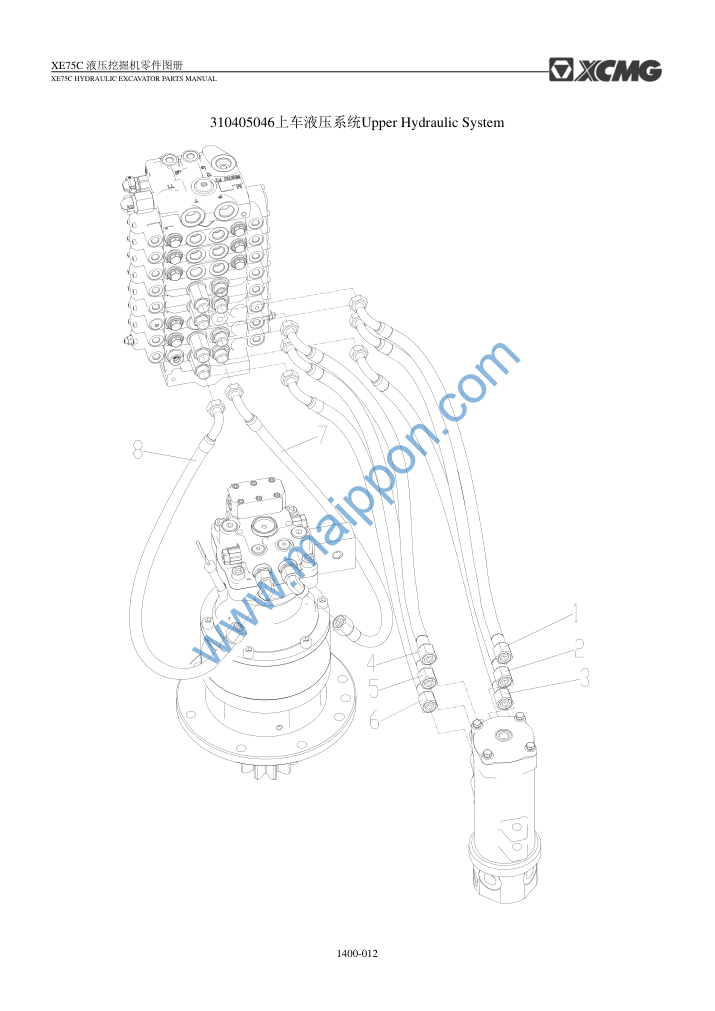

803302506 软管总成Hose Assy 1
803302506 软管总成Hose Assy 1
803399724 软管总成Hose Assy 1
803399723 软管总成Hose Assy 1
803399723 软管总成Hose Assy 1
803399724 软管总成Hose Assy 1
803399725 软管总成Hose Assy 1
803399725 软管总成Hose Assy 1
Contact: maipponxcmg@yeah.net
803403602 软管总成Hose Assy 1
803403605 软管总成Hose Assy 1
803403604 软管总成Hose Assy 1
805238372 螺母 Nut 2
310405081 管夹Clamp 2
310405080 压板 Pressing Plate 1
805338281 垫圈 12 Washer 2
805046648 螺栓 M12×90 Bolt 2
805046719 螺栓 M10×80 Bolt 2
329900454 压板 Pressing Plate 1
329900450 管夹Clamp 2
Contact: maipponxcmg@yeah.net
803403602 软管总成Hose Assy 1
803403603 软管总成Hose Assy 1
803403604 软管总成Hose Assy 1
805238372 螺母 Nut 2
310405081 管夹Clamp 2
310405080 压板 Pressing Plate 1
805338281 垫圈 12 Washer 2
805046648 螺栓 M12×90 Bolt 2
329900450 管夹Clamp 2
329900454 压板 Pressing Plate 1
805046719 螺栓 M10×80 Bolt 2
