XE490CH 液压挖掘机 – 发动机总成(3) Engine (3/5) (800101402)
发动机总成(3) Engine (3/5) (800101402)
XE490CH 液压挖掘机零件图册 / Parts Catalog
1210-006
Contact: maipponxcmg@yeah.net
800143020 管连接弯头 Elbow
800143021 燃油供给管 Tube Pipe
800143022 燃油排油管 Tube Pipe
800143023 外螺纹接头 Joint
800143024 柔性软管 Flexible Hose
1210-006
Contact: maipponxcmg@yeah.net
800143027 飞轮 Flywheel
800143872 飞轮环形齿 Flywheel RingGear
800143028 六角法兰头螺丝钉 Screw
1210-006
Contact: maipponxcmg@yeah.net
800143031 齿轮盖 Cover
800142746 矩形密封环 Washer
800143914 齿轮室盖螺塞 Plug
800142740 六角法兰头螺丝钉 Screw
800142739 六角法兰头螺丝钉 Screw
800142722 油封 Seal
800142721 载体垫圈 Washer
800142723 防尘密封垫 Dust Seal
800142750 油封 Seal
800142749 载体垫圈 Washer
1210-007
Contact: maipponxcmg@yeah.net
800143034 进气管接头 Joint
800143035 接头密封垫 Gasket
800143036 六角法兰头螺丝钉 Screw
1210-007
Contact: maipponxcmg@yeah.net

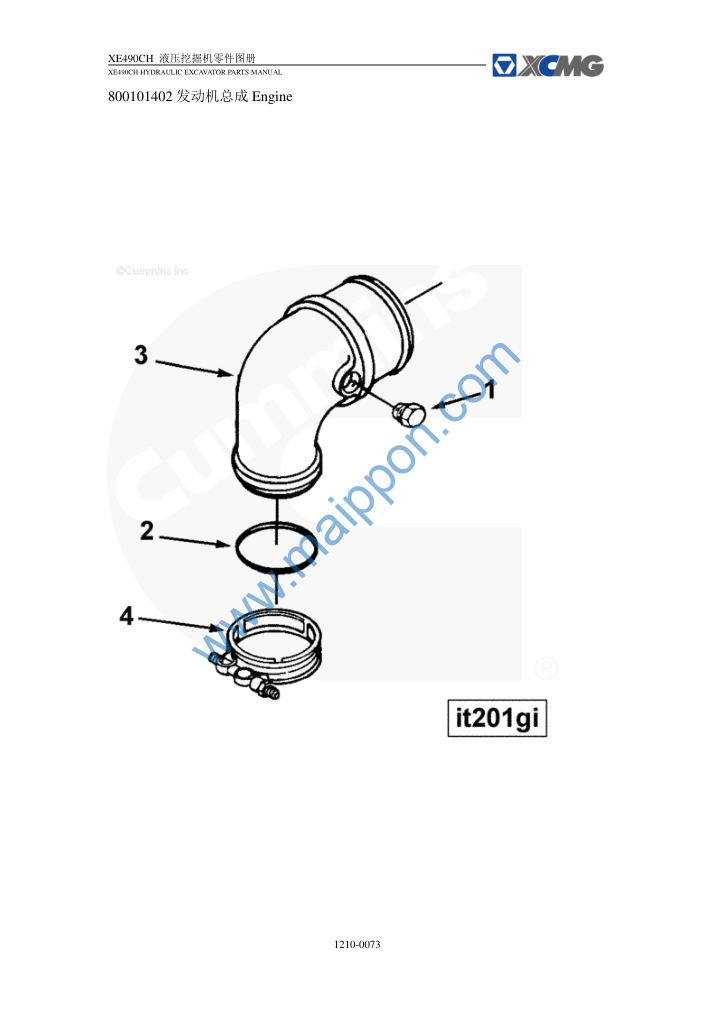

800143919 管塞 Plug
800143907 O 形密封圈 Washer
800143038 输气管 Air Transfer Pipe
800143039 V 型带箍 V-Belt Clamp
1210-007
Contact: maipponxcmg@yeah.net

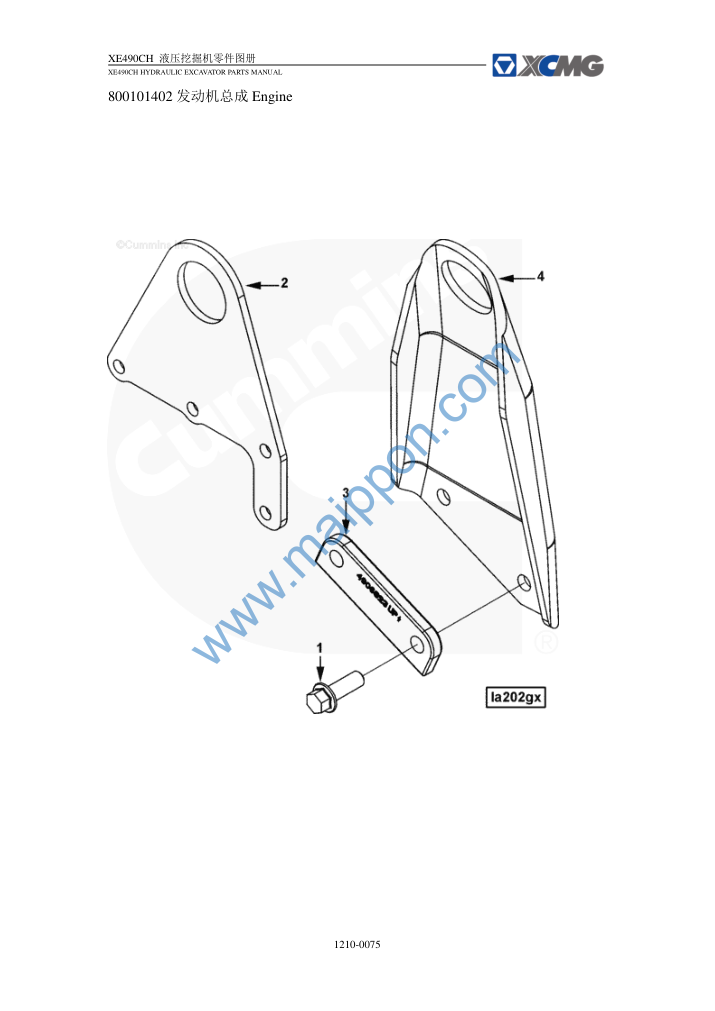

800143484 六角法兰头螺丝钉 Screw
800143041 吊耳 Lifting Lug
800143042 钳位板 Clamping Plate
800143043 吊耳 Lifting Lug
1210-007
Contact: maipponxcmg@yeah.net

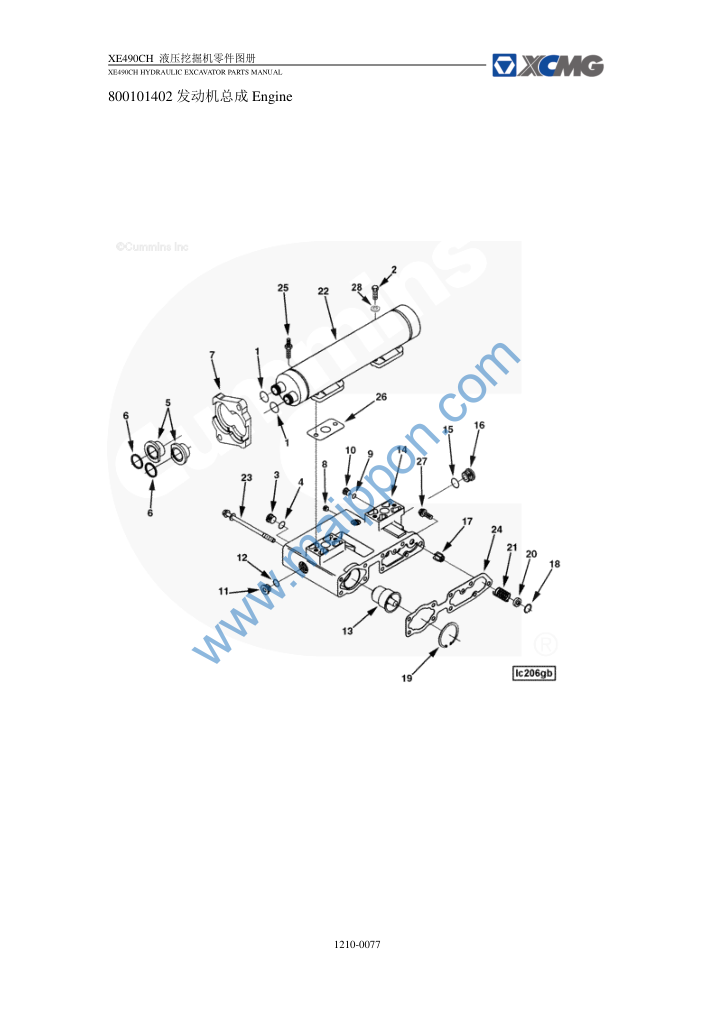

800142691 O 形密封圈 Washer
800142874 六角头螺栓 Bolt
800142787 螺塞 Plug
800143893 O 形密封圈 Washer
800143046 O形接合器 Adapter
800142708 矩形密封圈 Washer
800143047 接头护圈 Connection Retainer
800142771 管塞 Plug
800143557 O 形密封圈 Washer
800142785 螺塞 Plug
800143050 螺塞 Plug
800143890 O 形密封圈 Washer
800143051 节温器 Thermostant
800143052 机油滤清器头 Oil Filter Head
800142706 O 形密封圈 Washer
800143054 螺塞 Plug
800143906 旁通阀塞 Plug
800143055 挡圈 Back Up Ring
800143056 挡圈 Back Up Ring
800143057 膨胀塞 Plug
800143604 压缩弹簧 CompressionSpring
800143058 机油冷却器 Cooler
800143059 六角法兰头螺丝钉 Screw
800142727 滤清器座密封垫 Seal
800142876 六角头螺栓 Bolt
800142734 机油冷却器支撑垫圈 Washer
1210-007
Contact: maipponxcmg@yeah.net
800143060 六角法兰头螺丝钉 Screw
800143061 弹簧垫圈 Spring Washer
1210-008
Contact: maipponxcmg@yeah.net

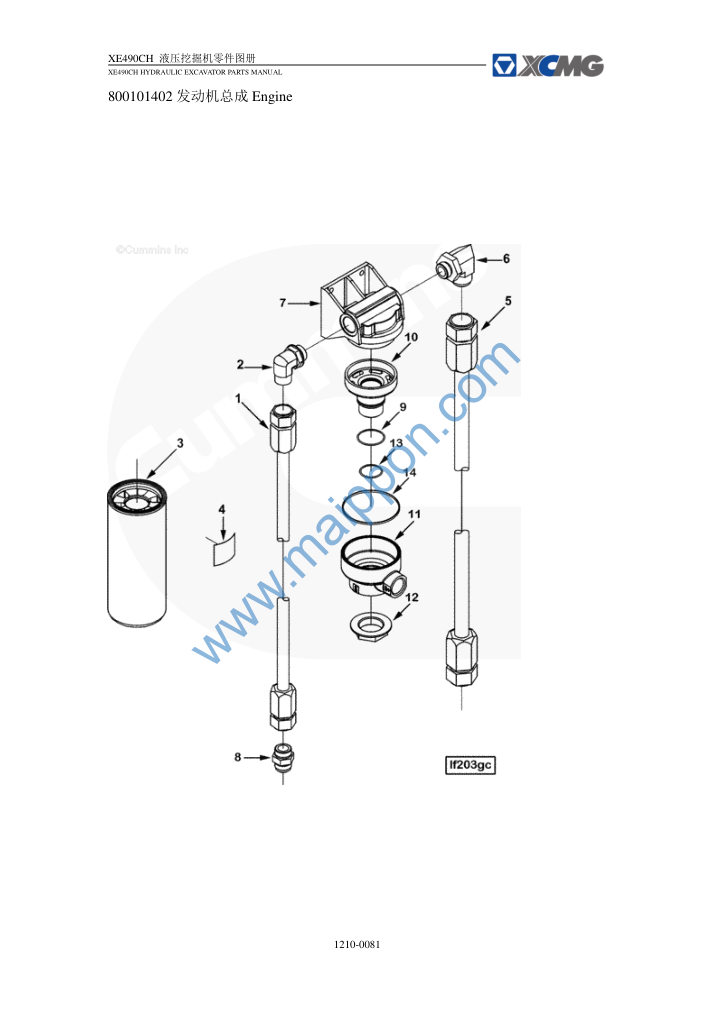

800143062 柔性软管 Flexble Hose
800143626 外螺纹弯头 Elbow
800143063 润滑油滤清器 Lub Oil Filter
800143064 贴花纸 Decal
800143622 柔性软管 Flexble Hose
800143625 外螺纹弯头 Elbow
800143627 润滑油滤清器头 Lub Oil Filter Head
800143615 外螺纹接头 Joint
800143894 O 形密封圈 Washer
800143619 滤清器座连接件 Joint
800143620 滤清器头盖 Cover
800143623 正六角螺母 Nut
800143618 O 形密封圈 Washer
800143880 肋状环形密封圈 Washer
1210-008
Contact: maipponxcmg@yeah.net

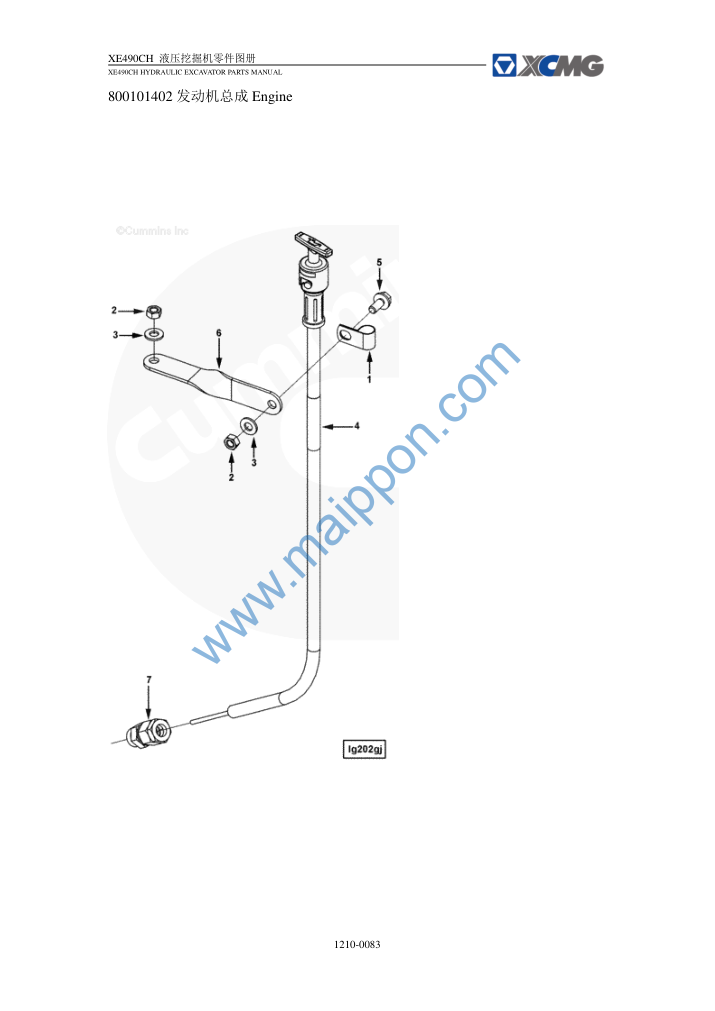

800143873 夹子 Clamp
800143066 正六角螺母 Nut
800143067 平垫圈 Plain Washer
800143068 油尺 Oil Level Gauge
800143069 带垫圈冒螺钉 Screw
800143070 管支撑架 Brace
800143071 管连接件 Connector
1210-008
Contact: maipponxcmg@yeah.net

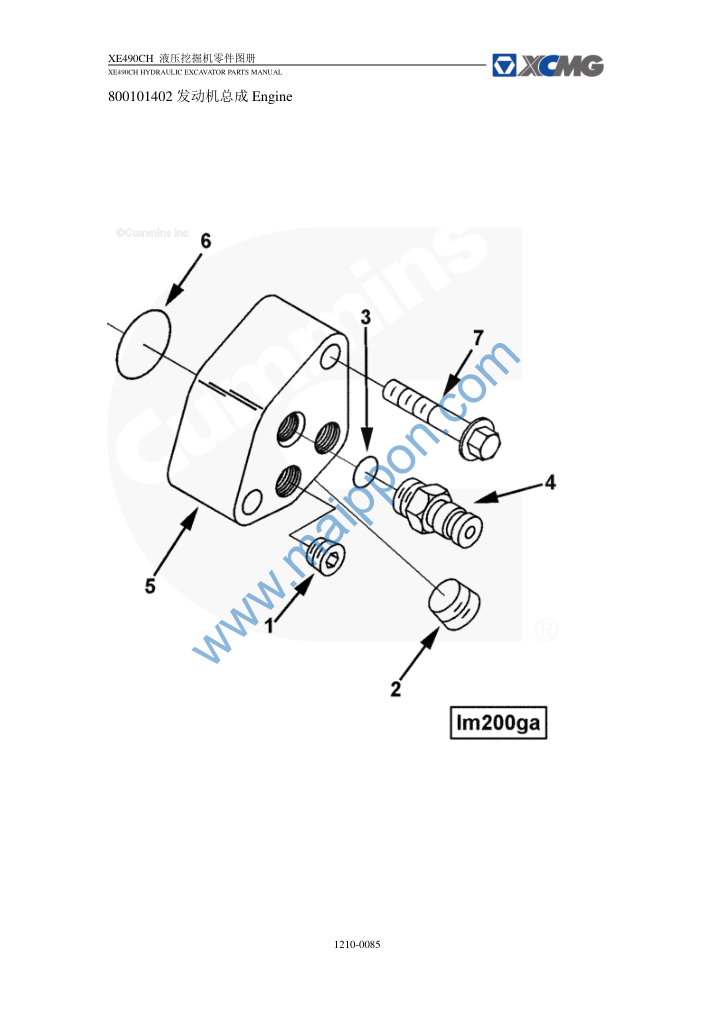

800142771 管塞 Plug
800143886 管塞 Plug
800143557 O 形密封圈 Washer
800143520 结合胶套 Coupling Nipple
800143074 机油歧管 Oil Manifold
800142676 O 形密封圈 Washer
800143911 六角法兰头螺丝钉 Screw
1210-008
Contact: maipponxcmg@yeah.net

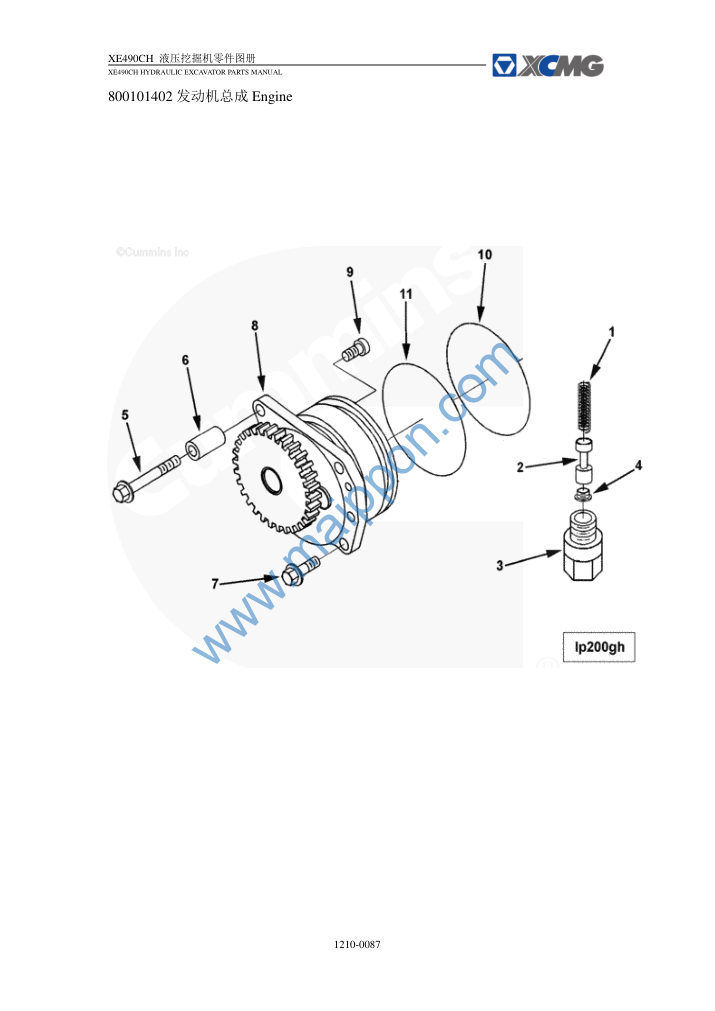

800142790 压缩弹簧 Compression Spring
800142789 PRS 调整螺塞 Plug
800142788 粘度传感器 Viscosity Sensor
800142791 护套塞 Retainer Plug
800143076 六角法兰头螺丝钉 Screw
800143077 安装垫片 Washer
800143078 六角法兰头螺丝钉 Screw
800143079 机油泵 Oil Pump
800143080 开槽冒螺钉 Screw （一字螺钉）
800142704 O 形密封圈 Washer
800142705 O 形密封圈 Washer
1210-008
1210-009
1210-009
Contact: maipponxcmg@yeah.net

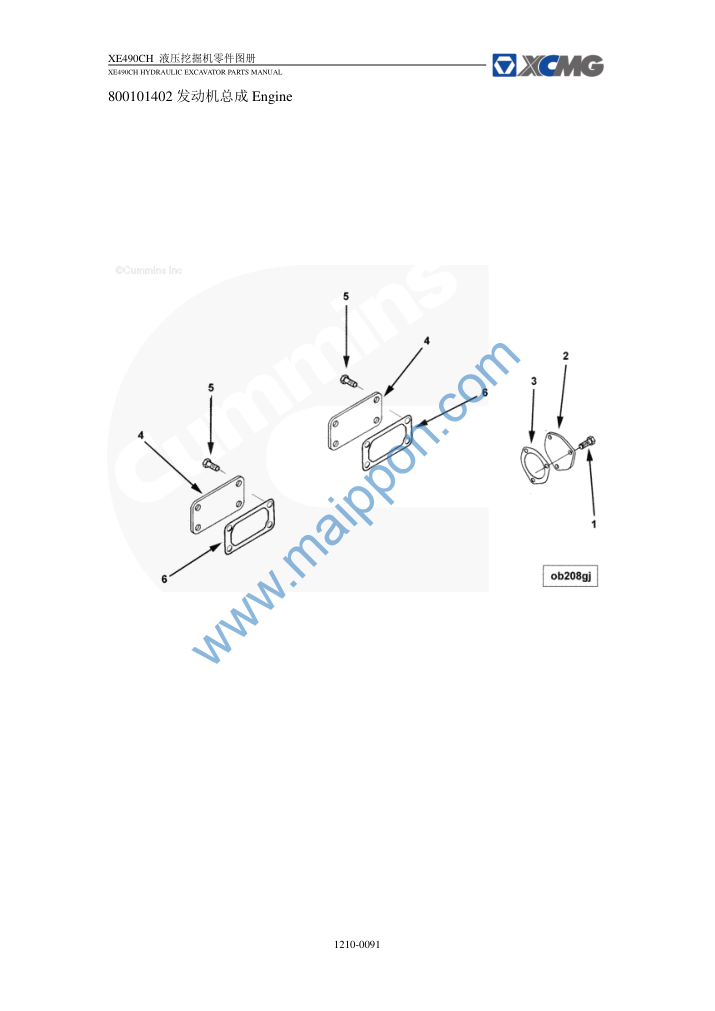

800143084 六角头螺栓 Bolt
800143085 曲轴盖 Cover
800142699 盖板垫圈 Gasket
800143086 检修孔盖 Cover
800142878 六角头螺栓 Bolt
800142697 检修孔盖 Gasket
1210-009
Contact: maipponxcmg@yeah.net

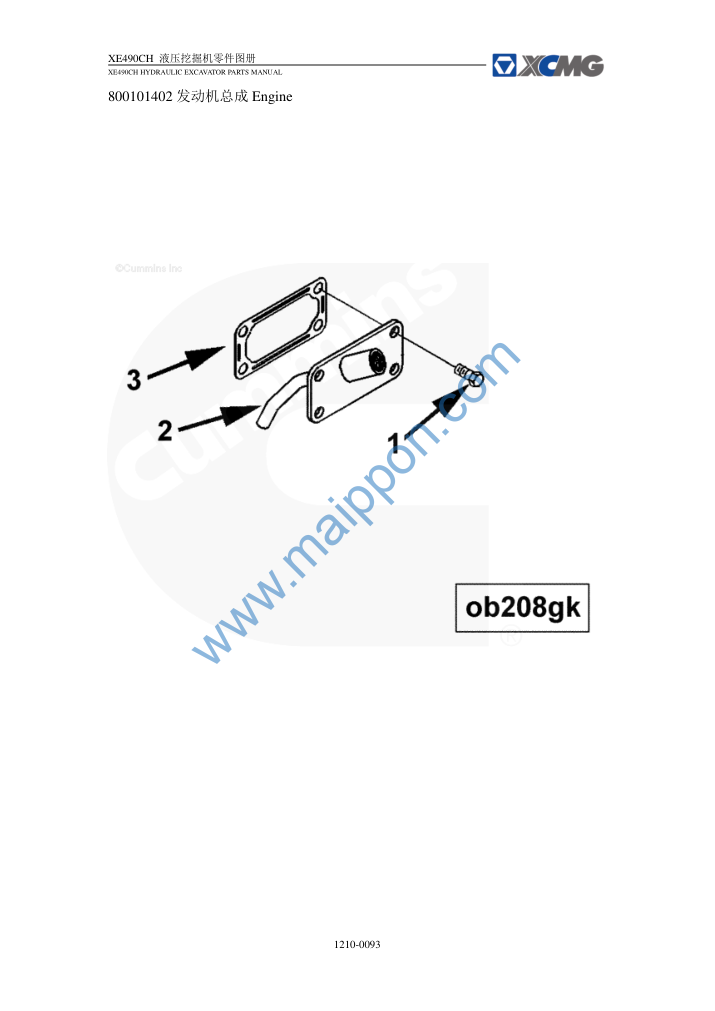

800142878 六角头螺栓 Bolt
800143088 检修孔盖 Cover
800142697 检修孔垫圈 Gasket
1210-009
Contact: maipponxcmg@yeah.net
800142703 O 形密封圈 Washer
800143090 挡圈 Back-up Ring
800143091 润滑油传输管 Lub Oil Transfer Tube
800143092 油底壳 OilPan
800142714 油底壳垫 Gasket
800143093 六角法兰头螺丝钉 Screw
800143060 六角法兰头螺丝钉 Screw
