行走马达 Travel Motor (803007124)

XE470CK 液压挖掘机零件图册 / Parts Catalog

---

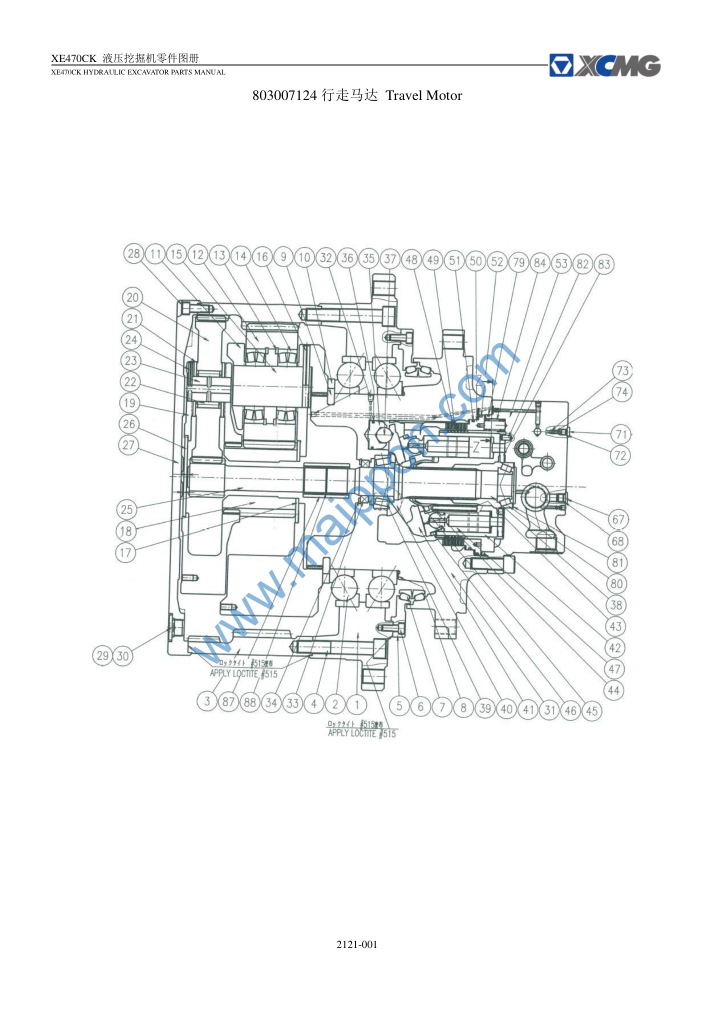

2121-001

Contact: maipponxcmg@yeah.net

860125711   箱体 Tank Body

860125712   轴承 Bearing

860125713   环形齿轮 Ring Gear

860125714   螺钉M20×120 Screws

860125715   密封端盖 Seal Cover

860125716   螺钉M10×25 Screws

860125717   浮动油封 Floating Seal

860125718   垫片 Shim

860125719   锁紧垫圈 Lock Washer

860125720   支撑环 Support Ring

860125721   载体2 Carrier 2

860125722   行星齿轮2 Planet Gear 2

860125723   定位环 Retaining Ring

860125724   轴承 Bearing

860125725   传动销2 Carrier Pin 2

860125726   弹簧销 Spring Pin

860125727   挡圈 Back Up Ring

860125728   太阳轮2 Sun Gear2

860125729   载体1 Carrier1

860125730   行星齿轮1 Planet Gear 1

860125731   止推垫圈 Thrust Washer1

860125732   滚针轴承 Roller Bearing

860125733   传动销1 Carrier Pin1

860125734   弹簧销 Spring Pin

860125735   太阳轮1 Sun Gear1

860125736   止推板 Thrust Plate

860125737   端盖 Cover

860125738   螺钉M12×30 Screws

860125739   堵头 G3/4 Plug

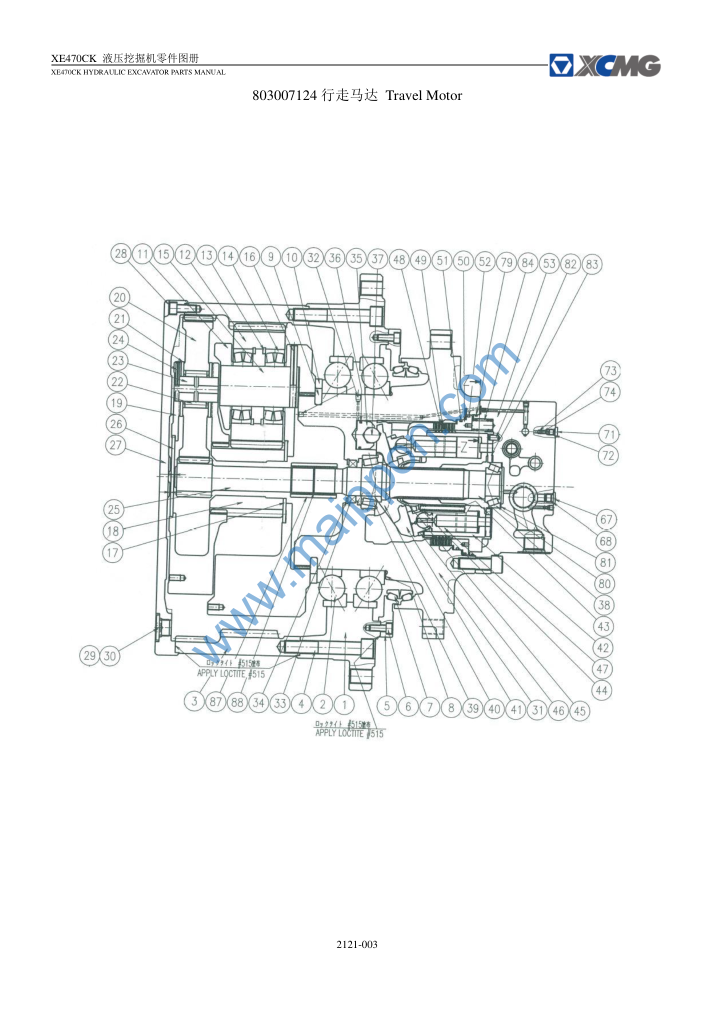

2121-003

Contact: maipponxcmg@yeah.net

860125740   O形圈 O-Ring

860125741   壳体 Housing

860125742   堵头NPT1/16 Plug

860125743   油封 Seal

860125744   定位环 Retaining Ping

860125745   移动活塞 Shifter Piston

860125746   活塞密封圈 Washer

860125747   钢轴珠 S hSaftet el Ball

860125748   轴枢承轴 BPievaorti ng]

860125749   旋转斜盘 Swash Plate

860125750   缸体 Cylinder Block

860125751   缸体弹簧 Cylinder Spring

860125752   弹簧座 Spring Seat

860125753   滑靴 Shoe

860125754   固定夹 Clamp

860125755   活塞组件 Piston ASS'Y

860125756   挡盘 Separated Plate

860125757   摩擦盘 Friction Plate

860125758   制动活塞 Brake Piston

860125759   D形圈 D-Ring

860125760   D形圈 D-Ring

860125761   后端盖 Cover

860125762   堵头NPT1/16 Plug

860125763   阀芯组件 Spool ASS'Y

860125764   弹簧座 Spring Seat

860125765   弹簧 Spring

860125766   端盖 Cover

860125767   定位环 Retaining Ping

860125768   移动活塞 Shifter Piston

2121-005

Contact: maipponxcmg@yeah.net

860125769   O形圈 O-Ring

860125770   阀芯 Spool

860125771   销 Pin

860125772   弹簧座 Spring Seat

860125773   弹簧 Spring

860125774   堵头G3/8 Plug

860125775   O形圈 O-Ring

860125776   连接器 Connecter

860125777   堵头G1/4 Plug

860125778   O形圈 O-Ring

860125779   节流阀 Restrictor

860125780   弹簧 Spring

860125781   堵头G1/8 Plug

860125782   O形圈 O-Ring

860125783   单向阀 Check Valve

860125784   单向阀弹簧 CChheecckk VVaallvvee SSpprriinngg

860125785   节流阀0.6 Restrictor 0.6

860125786   O型圈 O-Ring

860125787   节流阀0.8 Restrictor0.8

860125788   O型圈 O-Ring

860125789   O型圈 O-Ring

860125790   轴承 Bearing

860125791   垫圈 Washer

860125792   平行销 Pin

860125793   配油盘 Plate

860125794   制动弹簧 Brake Spring

860125795   螺钉M18×5 Screw

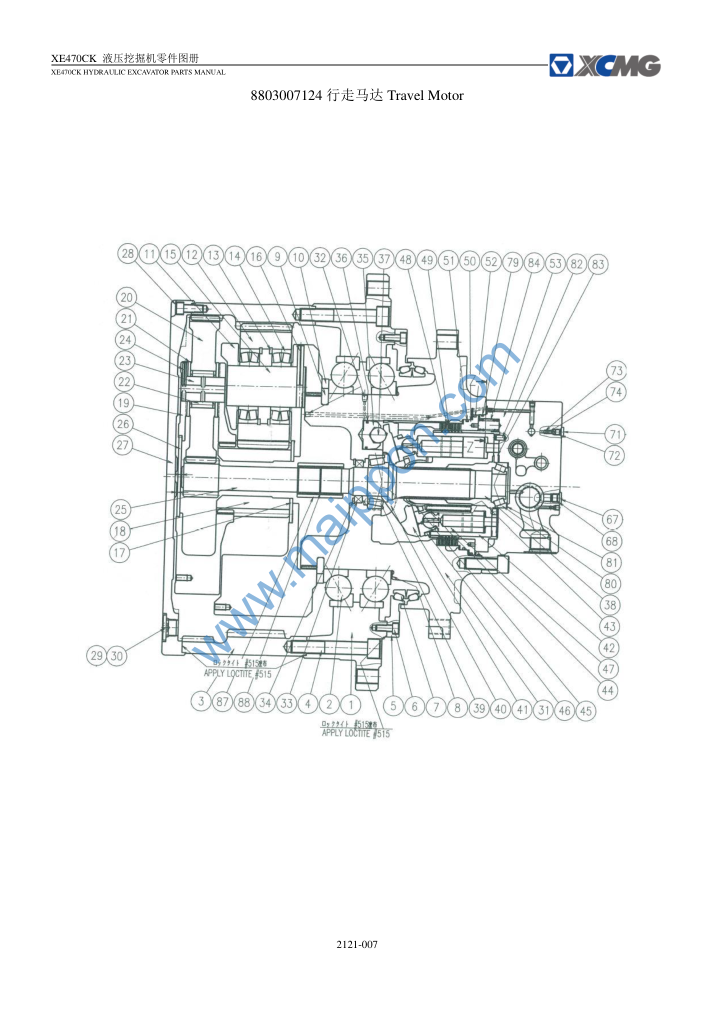

2121-007

Contact: maipponxcmg@yeah.net

860125796   过载溢流阀组件 Over Load Relief

860125797   连接器 Connecter Retaining

860125798   C形定位环 Ring

860125799   堵头G1/2 Plug

860125800   O形圈 O-Ring
