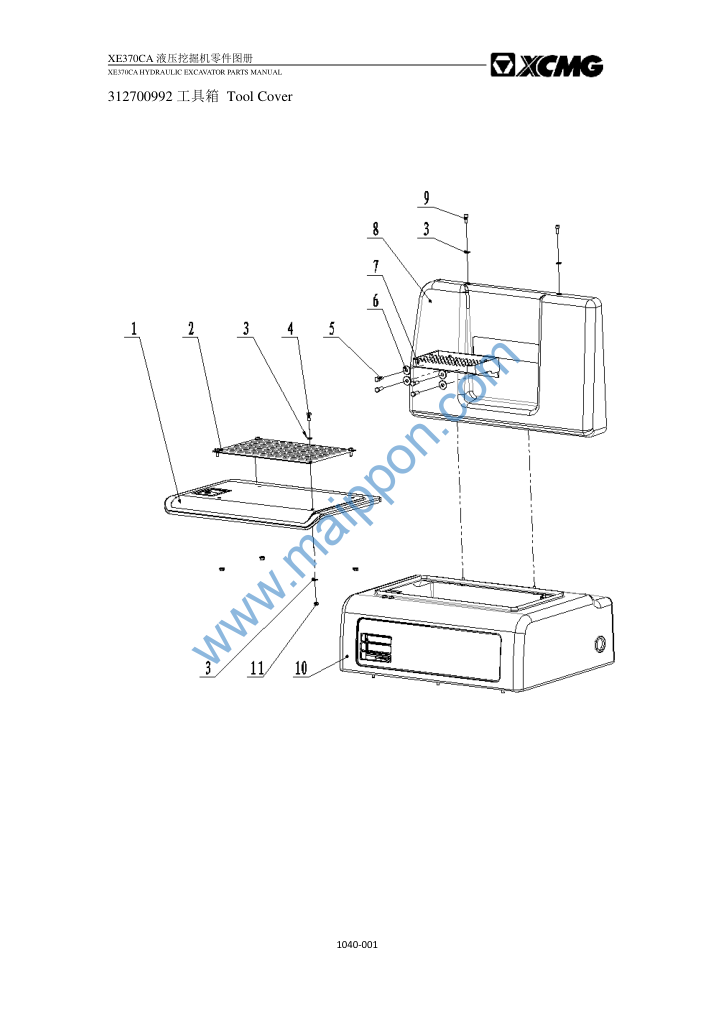

XE370CA 液压挖掘机 – 工具箱 Tool Box 312700992
Contact: maipponxcmg@yeah.net
312700999 上盖板 Cover Plate 1
312701001 防滑板 Anti-skid plate 1
805338279 垫圈10 Washer 12
805011330 螺栓 M10×25 Bolt 8
805006412 螺栓 M12×30 Bolt 4
805338270 垫圈12 Washer 4
312602114 中踏板 Pedal 1
312700996 上箱体 Tank Body 1
805139858 螺钉 M10×25 Screw 2
312700993 下箱体 Tank Body 1
805238371 螺母 M10 Nut 7

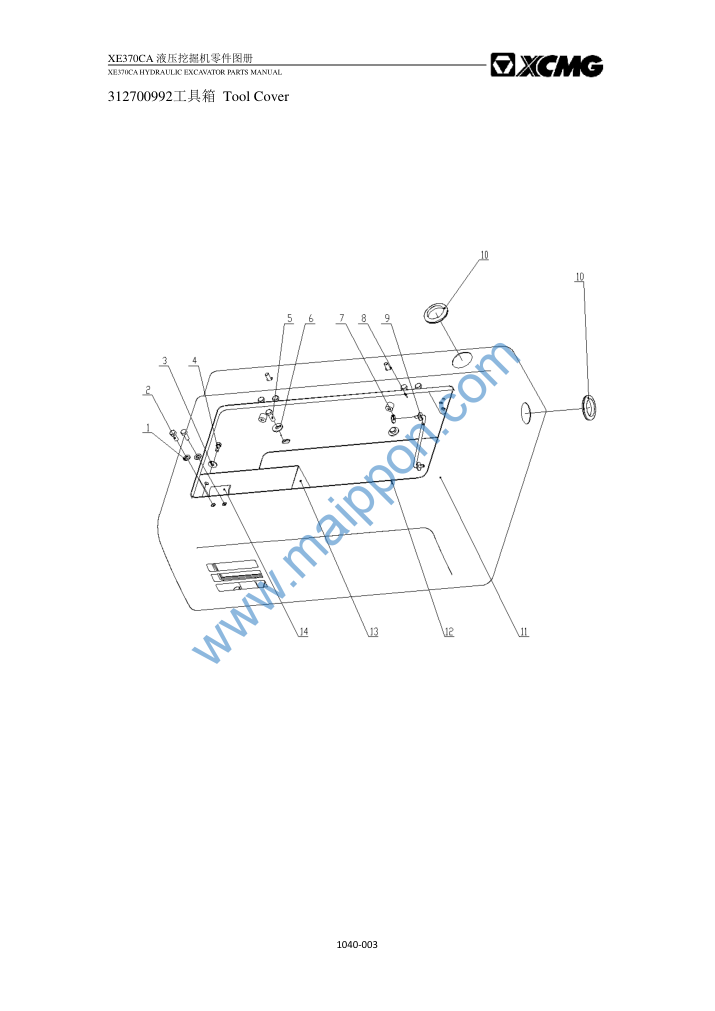

Contact: maipponxcmg@yeah.net
805338279 垫圈10 Washer 5
805011330 螺栓 M10×25 Bolt 4
805338266 垫圈 8 Washer 6
805046508 螺栓 M8×20 Bolt 4
805046416 螺栓 M10×30 Bolt 6
805338268 垫圈10 Washer 6
805338266 垫圈 8 Washer 2
805603553 销 2.5×14 Pin 2
310901295 拉杆组件 Pull-Rod 1
310901268 护套 Jacket 2
312700993 下箱体 Box body 1
800142630 密封条 Sealing Strips 1
310901270 围板 Boarding 1
310901269 锁舌 Catch 1
