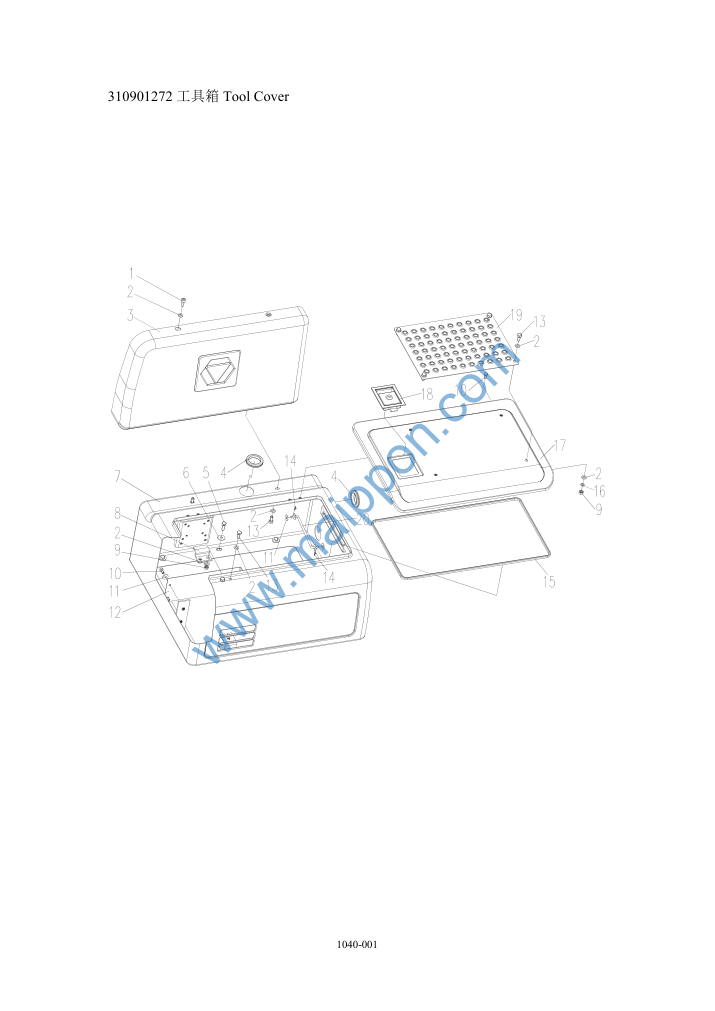

XE240LC 液压挖掘机 – 工具箱 Tool Cover 310901272
Contact: maipponxcmg@yeah.net
805139858 螺钉 M10×25 Screw 2
805338279 垫圈10 Washer 16
310901275 上箱 Upper Trunk 1
310901268 护套 Bushing 2
805046416 螺栓 M10×30 Bolt 6
805338268 垫圈 10 Washer 6
310901291 下箱 Nether Trunk 1
310901269 锁舌 Catch 1
805238371 螺母 M10 Nut 2
805046508 螺栓 M8×20 Nut 4
805338266 垫圈8 Washer 6
310901270 围板 Boarding 1
805011330 螺栓 M10×25 Bolt 8
805603553 开口销 2.5×14 Split Pin Bushing 2
801905450 密封条 Bracket 1
805338260 垫圈 10 Washer 2
310901279 下箱盖板 Cover 1
819906631 锁 Lock 1
310901271 防滑板 Anti-skid plate 1
310901295 拉杆组件 Haulm 1
