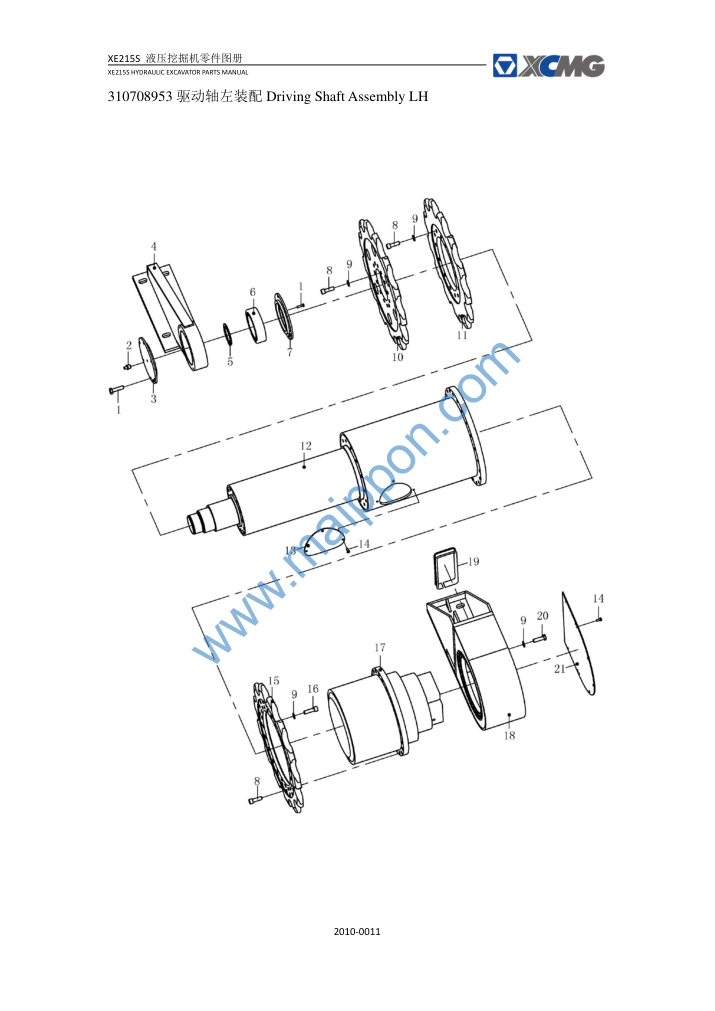

XE215S 液压挖掘机 – 驱动轴左装配 Driving Shaft Assembly LH 310708953
Contact: maipponxcmg@yeah.net
805046511 螺栓 M8×30 Bolt 12
801100336 油杯 M10×1 Oil Cup 1
310708951 轴承封盖 Bearing Cover 1
310708948 轴承座总成 Bearing Seat 1
805407932 挡圈 100 Retaining Ring 1
800554164 轴承 22220C Bearing 1
310708952 轴承封盖 Bearing Cover 1
805139896 螺钉 M16×50 Screw 48
805338285 垫圈 16 Washer 48
310708949 从动轮 Driven Wheel 1
310708950 中链轮 Intermediate Sprocket 1
310708954 驱动轴 Drive Shaft 1
310708957 驱动轴检修口盖 Access Cover 1
805046508 螺栓 M8×20 Bolt 1
310708956 马达轮 Drive Gear 1
805139922 螺钉 M16×55 Screw 22
803070660 行走马达 Travel Motor 1
310708955 左马达座 Travel Motor Seat LH 1
801972441 胶条 Strip 1
329900957 螺栓 Bolt 30
310708958 马达座盖 Cover 1
