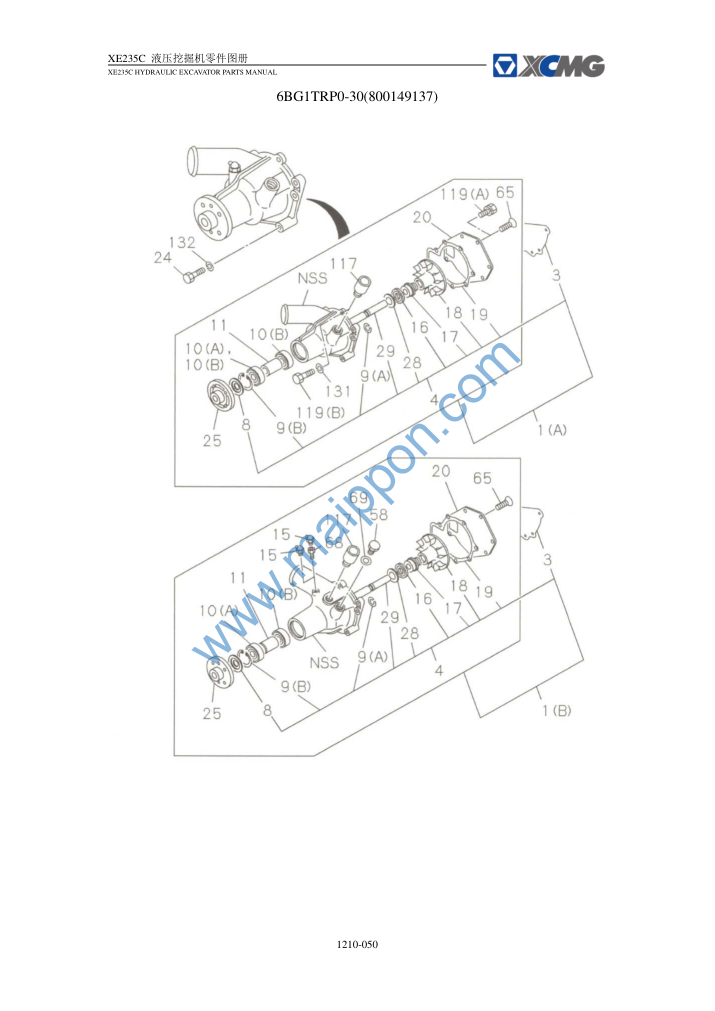

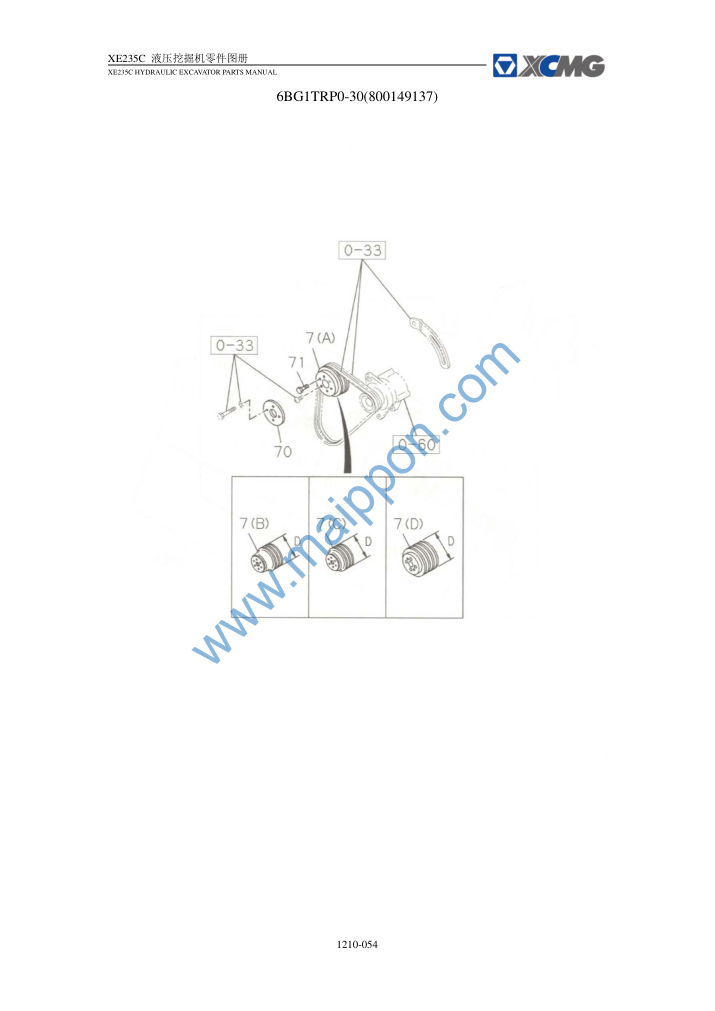

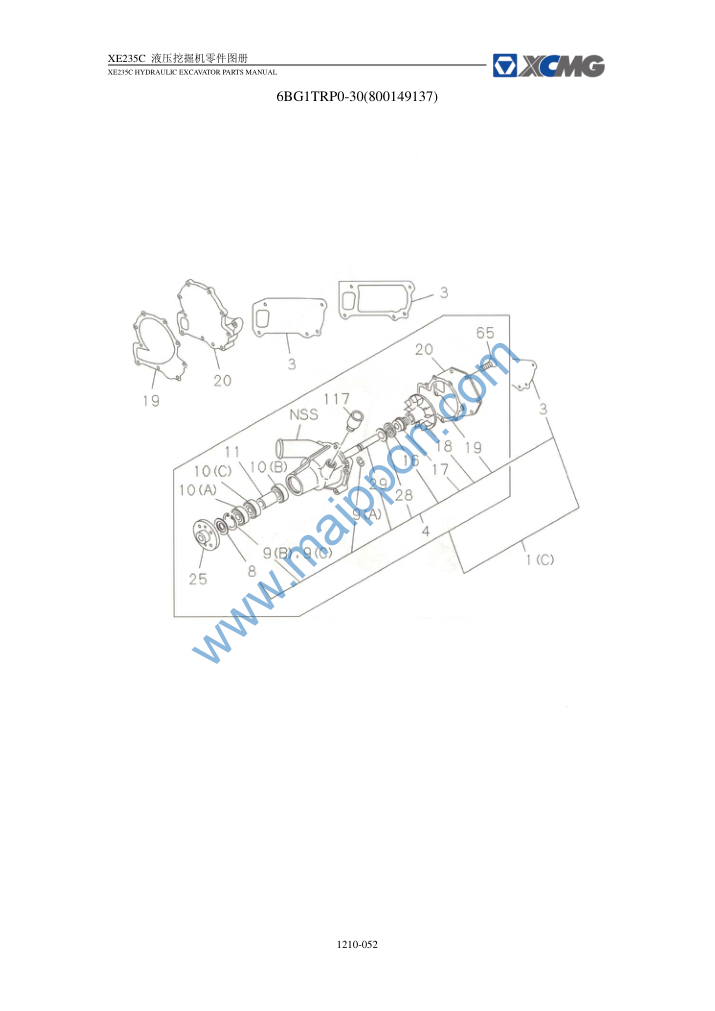

XE215S 液压挖掘机 – 发动机Engine 6BG1TRP0-30 6BG1TRP0-30 800149137
Contact: maipponxcmg@yeah.net
800148438 垫圈 Gasket 1
800149138 修理器 Repair 1
800149140 抛油环 Thrower 1
800148442 隔片 Spacer 1
800148443 封口 Seal 1
800148456 封口单元 Seal Unit 1
800148444 泵轮 Pump Impeller 1
800148445 垫圈 Gasket 1
800148446 后盖 Cover 1
800148458 螺栓(M10×70,法兰) Bolt(M10×70,Flange) 1
800149142 螺栓(M10×35,法兰) Bolt(M10×35,Flange) 1
800148394 螺栓(M10×50,法兰) Bolt(M10×50,Flange) 2
800148447 中心件 Center 1
800148452 垫片 Washer 1
800148453 转轴 Shaft 1
800148457 螺钉 Screw 3
800148455 接头 Connector 1
Contact: maipponxcmg@yeah.net
800148438 垫圈 Gasket 1
800149138 修理器 Repair 1
800149140 抛油环 Thrower 1
800148442 隔片 Spacer 1
800148443 封口 Seal 1
800148456 封口单元 Seal Unit 1
800148444 泵轮 Pump Impeller 1
800148445 垫圈 Gasket 1
800148446 后盖 Cover 1
800148458 螺栓(M10×70,法兰) Bolt(M10×70,Flange) 1
800149142 螺栓(M10×35,法兰) Bolt(M10×35,Flange) 1
800148394 螺栓(M10×50,法兰) Bolt(M10×50,Flange) 2
800148447 中心件 Center 1
800148452 垫片 Washer 1
800148453 转轴 Shaft 1
800148457 螺钉 Screw 3
800148455 接头 Connector 1
Contact: maipponxcmg@yeah.net
800148438 垫圈 Gasket 1
800149138 修理器 Repair 1
800149140 抛油环 Thrower 1
800148442 隔片 Spacer 1
800148443 封口 Seal 1
800148456 封口单元 Seal Unit 1
800148444 泵轮 Pump Impeller 1
800148445 垫圈 Gasket 1
800148446 后盖 Cover 1
800148458 螺栓(M10×70,法兰) Bolt(M10×70,Flange) 1
800149142 螺栓(M10×35,法兰) Bolt(M10×35,Flange) 1
800148394 螺栓(M10×50,法兰) Bolt(M10×50,Flange) 2
800148447 中心件 Center 1
800148452 垫片 Washer 1
800148453 转轴 Shaft 1
800148457 螺钉 Screw 3
800148455 接头 Connector 1
