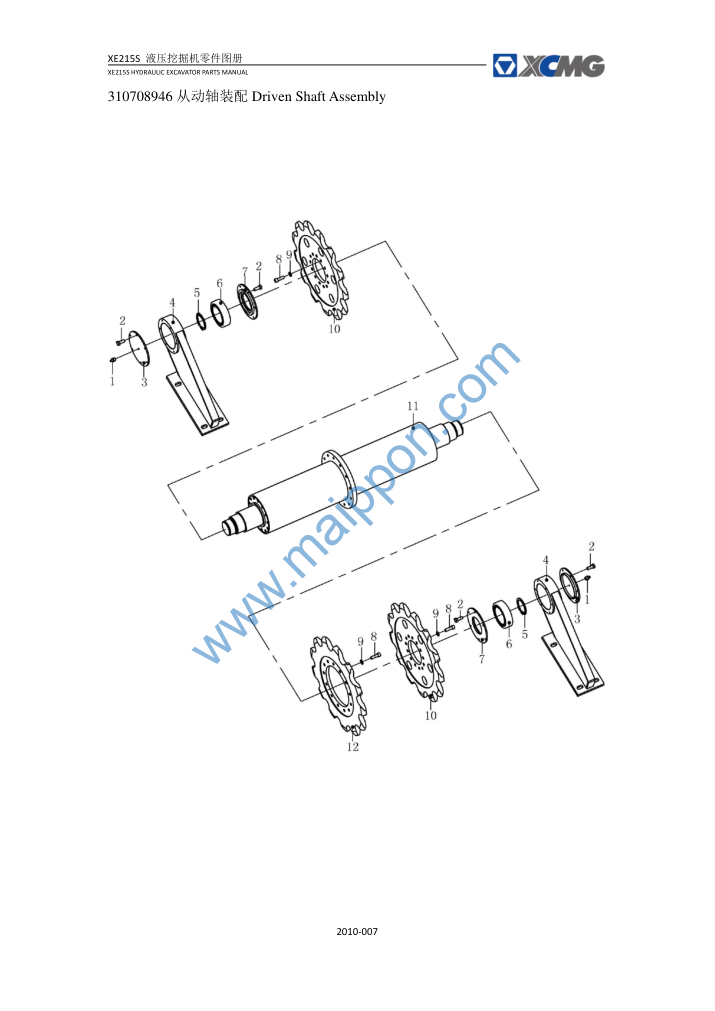

XE215S 液压挖掘机 – 从动轴装配 Driven Shaft Assembly 310708946
Contact: maipponxcmg@yeah.net
801100336 油杯 M10×1 Oil Cup 2
805046511 螺栓 M8×30 Bolt 24
310708951 轴承封盖 Cover 2
310708948 轴承座 Bearing Seat 2
805407932 挡圈 100 Retaining Ring 2
800554164 轴承 22220C Bearing 2
310708952 轴承封盖 Bearing Cover 2
805139896 螺钉 M16×50 Screw 39
805338285 垫圈 16 Washer 39
310708949 从动轮 Driven Wheel 2
310708947 从动轴 Driven Shaft 1
310708950 中链轮 Intermediate Sprocket 1
