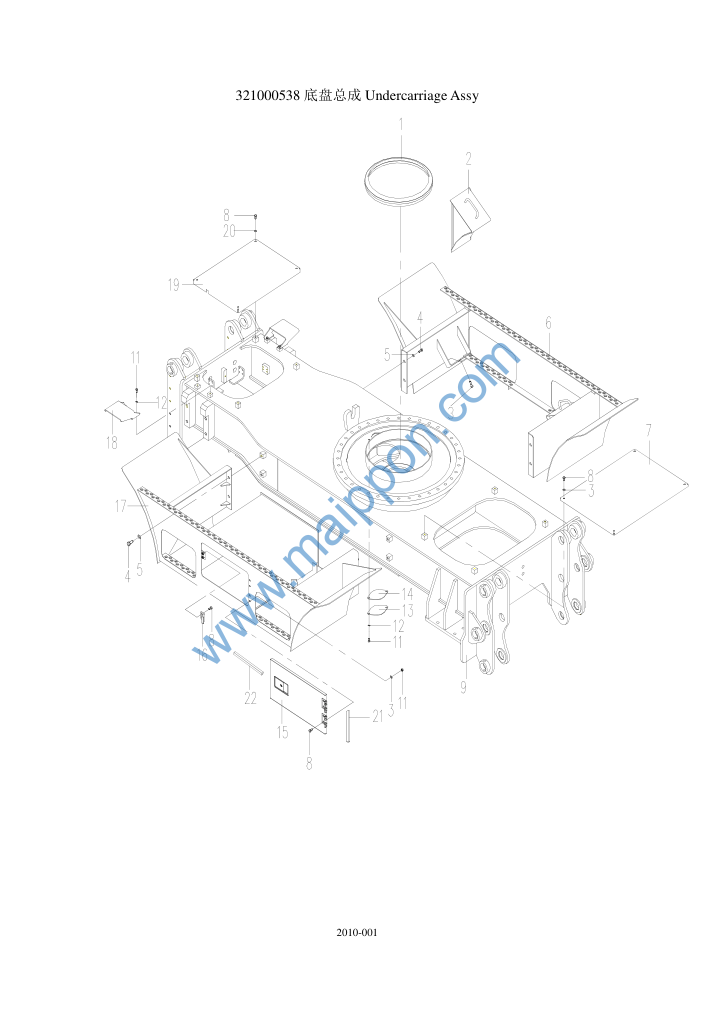

321000745 密封圈Washer 1
805046478 螺栓M16×35 Bolt 8
805338 285 垫圈16 300HV 18
321000611 右车架 Rigft Frame 1
805046472 螺 栓M10×20 Bolt 14
321000539 下 车架Lower Frame 1
805238371 螺 母M10 10 Nut 4
805338276 垫圈 8 Washer 6
321000723 橡 胶垫Rubbe Mat 1
321000726 左 车架Left Frame 1
321000733 前盖板Cover 1
805338279 垫圈10 Washer 16
321001685 缓冲条 spong 2
321001684 缓冲条 spong 2

Contact: maipponxcmg@yeah.net

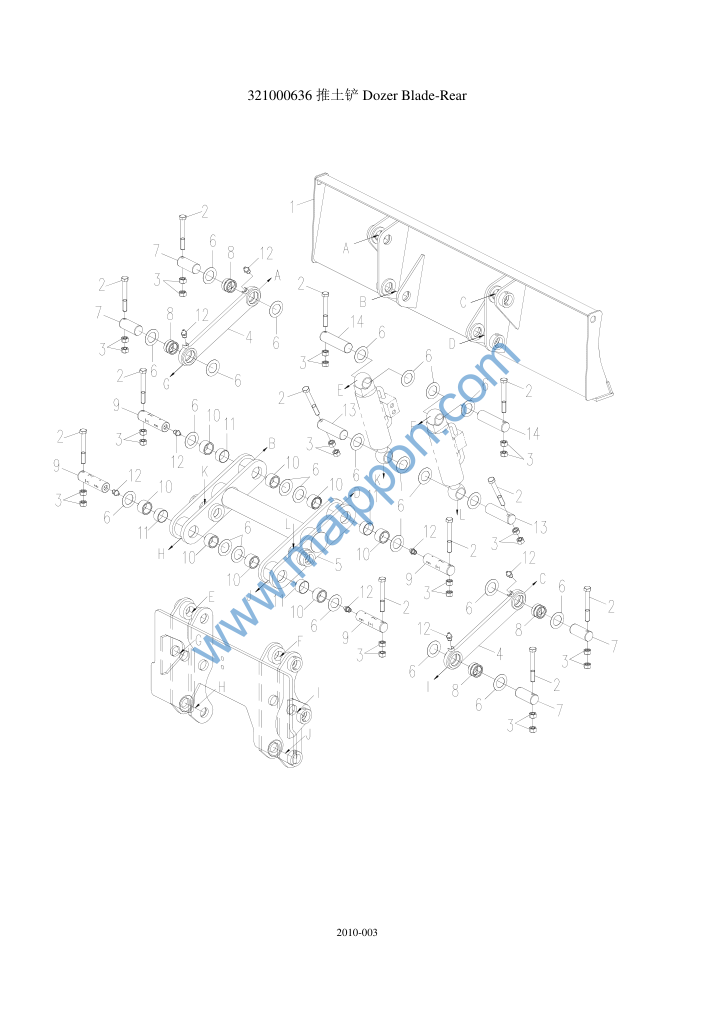

321000636 推土铲 Dozer 1
805046670 螺栓 M16×130 Bolt 12
805238374 螺母 M16 10 24
321000624 上连杆Link 1
321000628 下连杆Link 1
819910733 调整垫 Washer 50
321000743 销轴 Pin 4
321000744 套C Bushing 4
321000740 销轴Pin 4
321000740 套A Bushing 8
321000741 定位套B Bushing 4
801102884 油杯M10×1 Oiler Cup 8
321000742 销轴 Pin 2
321000712 销轴 Pin 2

Contact: maipponxcmg@yeah.net

805046670 螺栓 M16×130 10.9 12
321000712 销轴Pin 2
805238374 螺母 M16 10 24
321000702 盖板Cover 2
321001627 橡胶块Stopper 4
805139915 螺钉Screw 8
805046472 螺栓 M10×20Bolt 8
805338279 垫圈 10 300HV 8
801733012 压簧Spring 2
801905669 防碰球Stopper Ball 2
805238372 螺母 M12Nut 2
321000714 销轴Pin 2
801102884 油杯M10×1 6
321000683 右踏块Foot 1
819910731 消音调整树脂垫 8
321000715 套Bushing 4
805238372 螺母 M12 Nut 4
321000717 销轴Pin 2
805046653 螺栓 M12×130 2
819910733 消音调整树脂垫 50
321000652 支腿横梁Beam 1

Contact: maipponxcmg@yeah.net

321000720 销轴Pin 2
321000716 左踏块 1
321000711 盖板Cover 2
805338277 垫圈8 Washer 4
805046507 螺栓 M8×20Bolt 4
321000679 连杆Link 2
321000713 销轴Pin 2
321000651 橡胶护套 1
