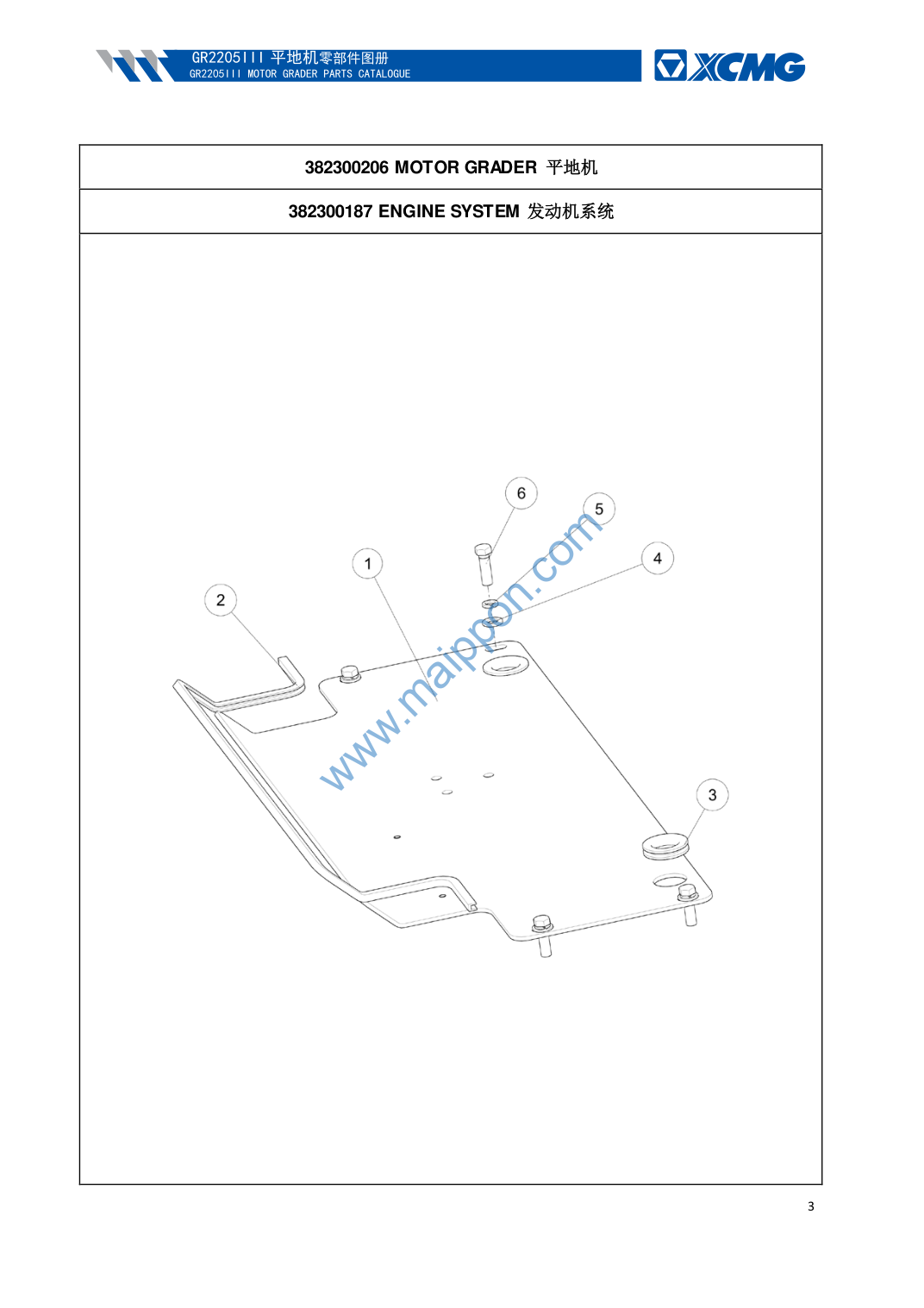

Model: GR2205 Motor Grader

Part Number: 382300187

Contact: maipponxcmg@yeah.net

Parts List

380905897 — OVERLAY

380905666 — TRIM STRIP

380906232 — RUBBER SLEEVE

329900303 — WASHER 12

805338261 — WASHER 12

805006287 — BOLT M12×40

805046180 — BOLT M12×55

805238372 — NUT M12

800159363 — ENGINE

800903126 — AIR INLET PIPE

380905902 — AIR INLET PIPE

381100688 — AIR INLET PIPE

380905907 — AIR INLET PIPE PLATE

380600518 — CLAMP

800151579 — T 型抱箍 φ T-HOOP

859938827 — T 型抱箍 φ T-HOOP

329900302 — WASHER 10

805338260 — WASHER 10

805046525 — BOLT M10×20

381100418 — MAT

805338258 — WASHER M6

805238370 — NUT M6

381100409 — OUT GAS PIPE

380904862 — RETAINING

380906242 — BLOCK

805011330 — BOLT M10×25

381100413 — OUT GAS PIPE

380900985 — EXHAUST PIPE

805046416 — BOLT M10×30

805201420 — NUT M10

380904867 — TUBE

805049185 — BOLT M8×55

805338276 — WASHER 8

805338259 — WASHER 8

805238378 — NUT M8

380901027 — MUFFLER

380905700 — MUFFLER BRACKET

801907062 — T 型平地机 CLIP

380901023 — SYPHON

380900987 — CLIP

805046523 — BOLT M8×80

380904114 — TUBE

800157390 — PRE-AIR CLEANER

329900301 — WASHER

381100643 — AIR CLEANER CLIP

805046524 — BOLT M10×16

381100642 — AIR CLEANER BRACKET

805238371 — NUT M10

805046541 — BOLT M10×80

800101436 — AIR CLEANER

801907065 — T 型平地机 CLIP

803104282 — JOINT

803103339 — JOINT

803400571 — SECOND FUEL FILTER

803166369 — WASHER 18

805300001 — WASHER 14

805000130 — BOLT M18×1.5×40

805047710 — BOLT M14×1.5×40

381100594 — BRACKET

803400570 — FIRST FUEL FILTER

803104916 — JOINT

803107607 — JOINT

805046528 — BOLT M10×35

380905702 — VITTA

380904856 — VITTA

380400816 — VITTA

382300186 — TRANSITION PLATE

800155645 — FAN

805338262 — WASHER 14

805046563

329900296 — WASHER 8

805046805 — BOLT M8×20

805046552

381100421 — REDIATION LINK

805046570

805338284 — WASHER 16

803077507 — REDIATION

380904854 — MOTOR BRACKET

380906220 — HUTCH WATER PIPE

805046477 — NUT M8

803300172 — CLIP

805046507 — BOLT M8×20

800151575 — CLIP

380900977 — HOSE

805801461 — HOOP

380904104 — WATER INLET PIPE

381100412 — WATER INLET PIPE

380700259 — CLAMP

381100419 — BRACKET

380603056 — WATER PIPE PLATE

380905662 — WATER PIPE PLATE

805801472 — HOOP

380904860 — WATER OUTLET PIPE

380905890 — BRACKET

381100420 — WATER OUTLET PIPE

380905888 — OUT GAS PIPE

381100416 — WATER OUTLET PIPE

380900979 — HOSE

800151710 — CLIP

381100410 — WATER OUTLET PIPE

380905904 — BRACKET

381100417 — BRACKET
